Partiron

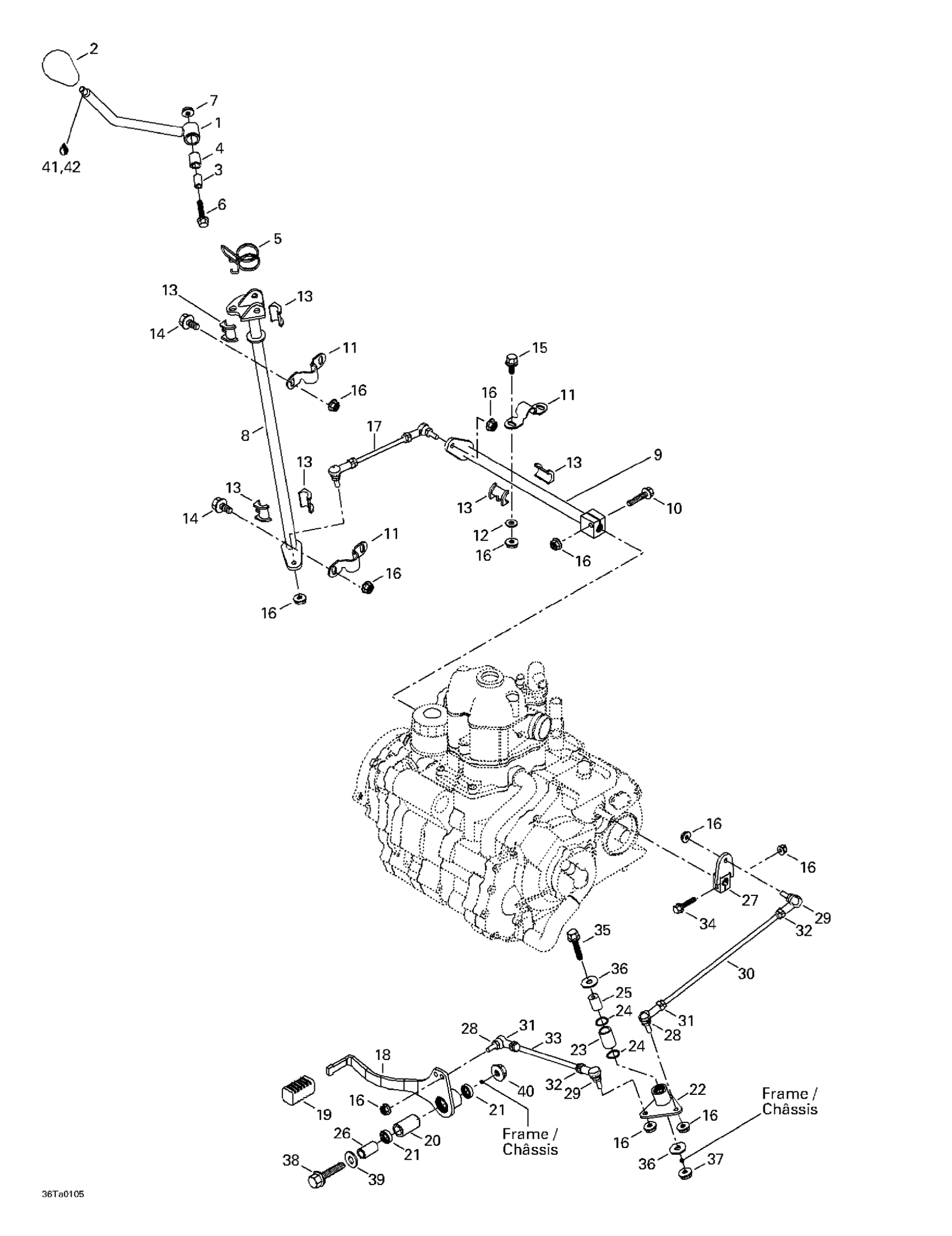

Can-Am Traxter Footshift, Red/rouge, 2001 Footshift Diagram

#

Description
Price

1

LEVER ASS'Y - Call your local BRP dealership

707000010

$25.35

2

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

3

BUSHING - Call your local BRP dealership

705500150

$11.51

4

Adjuster Bushing

705500193

Unavailable

5

LEVER SPRING - Call your local BRP dealership

705500024

$11.51

6

Hex. Flange Screw M8 X 50

207685044

$1.39

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Upper Tube

705500134

Unavailable

9

Lower Tube

705500135

Unavailable

10

Hex. Flange Screw M6 X 35

207663544

$0.74

11

RETAINER CLAMP - Call your local BRP dealership

705500041

$5.35

12

Shim 1.0 mm

707000080

Unavailable

Shim 2.0 mm

707000081

Unavailable

13

Half Ring

705500033

$4.92

14

Hex. Flange Screw M6 X 16

207661644

$0.61

15

Hex. Flange Screw M6 X 20

207662044

$1.66

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Tie Rod Ass'y

707000068

$33.82

18

Shifter Pedal

707000126

Unavailable

19

Rubber Sleeve

711260205

$6.31

20

Antifriction Bushing

293900041

Unavailable

21

OIL SEAL - Call your local BRP dealership

293250118

Unavailable

22

Pivot

707000121

Unavailable

23

Antifriction Bushing

293900040

Unavailable

24

Oil Seal

293250117

Unavailable

25

Pivot Bushing

707000179

Unavailable

26

PIVOT BUSHING - Call your local BRP dealership

707000180

Unavailable

27

Lever Arm

707000122

Unavailable

28

RH BALL JOINT - Call your local BRP dealership

707000142

$34.58

29

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

30

Rod 240 mm

707000144

Unavailable

31

Hex. Nut M6

232061414

$0.44

32

LH HEX. NUT M6 - Call your local BRP dealership

232066414

$1.11

33

Rod 160 mm

707000145

Unavailable

34

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

35

Hex. Flange Screw M8 X 45

207684544

$3.68

36

Flat Washer 8 mm

234082410

$1.11

37

Hex. Flange Nut M8

233081416

$1.63

38

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.20

39

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

40

Flange Nut M10

732610084

$5.49

41

Was 293800041 Loctite Primer 7649

219704458

$41.99

42

Loctite 243, 10 ml

293800060

$20.77
