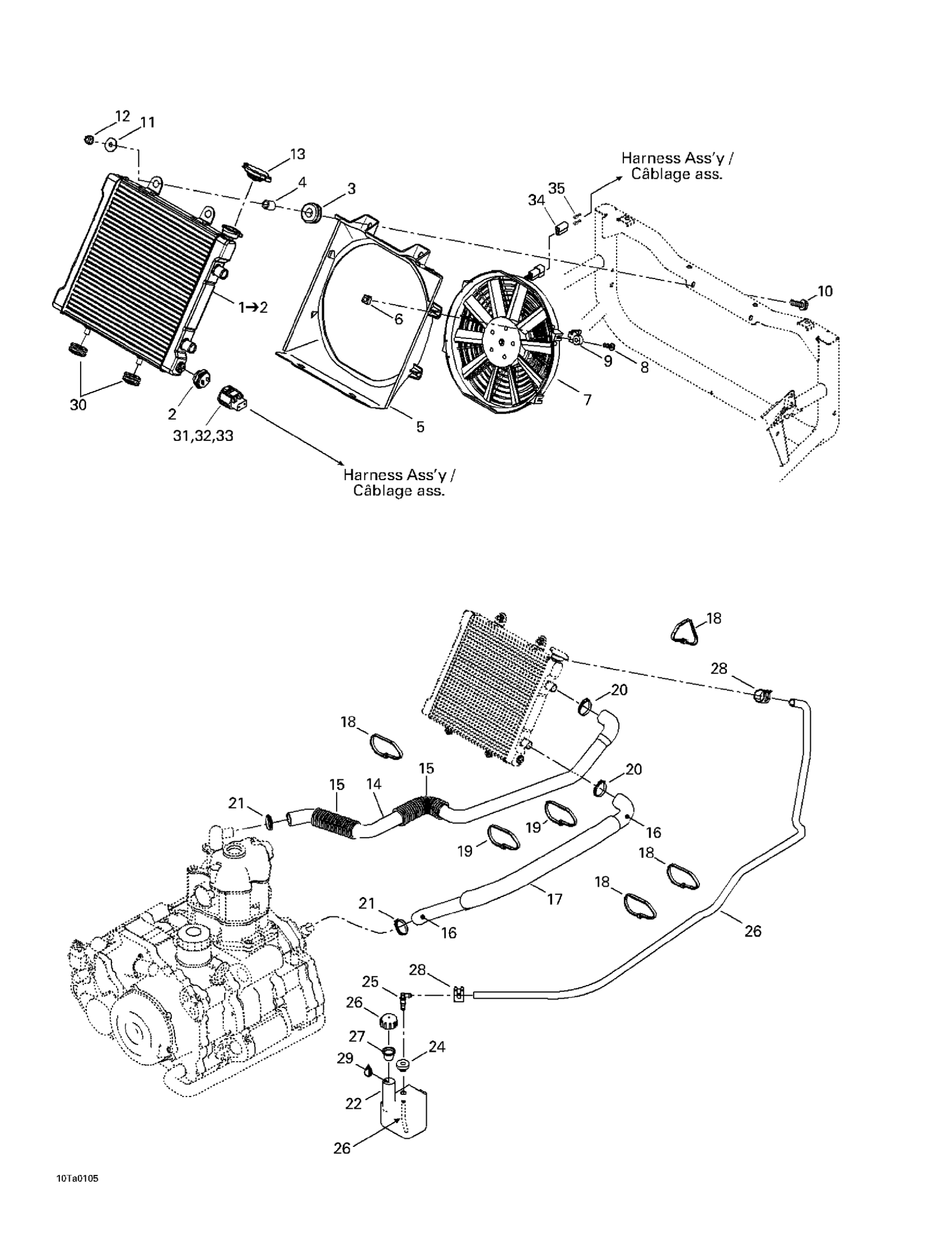

Can-Am Traxter Footshift, Red/rouge, 2001 Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y (7439,7440,7441,7442) - Call your local BRP dealership | Includes 1 - 2.

709200001

Unavailable

Radiator Ass'y | Includes 1 - 2.

709200056

Unavailable

2

Temperature Sensor

715900095

$66.89

3

Grommet

709000582

$4.38

4

Bushing

293900019

$7.37

5

Outlet shroud

709200013

Unavailable

6

Square Nut M6

232862412

$1.18

7

Fan ass'y

709200004

Unavailable

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

9

Fan Support

709200017

Unavailable

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

11

Flat Washer

224060201

$1.15

Flat Washer

250200082

$0.35

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Pressure Cap

509000187

$27.66

Radiator Pressure Cap

709200207

$18.82

14

RadiatorInletHose (7439,7440,7441,7442)

709200006

Unavailable

RADIATOR INLET HOSE - Call your local BRP dealership

709200060

Unavailable

15

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

16

RadiatorOutletHose (7439,7440,7441,7442)

709200007

Unavailable

OUTLET HOSE - Call your local BRP dealership

709200043

Unavailable

17

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

18

Tie-Rap 180 mm

414115200

$0.09

19

Tie Wrap 368 mm

293750008

$0.85

20

Norma Spring Clamp

293650108

$4.00

Norma Spring Clamp

293650109

$4.00

21

Norma Spring Clamp

293650109

$4.00

Norma Spring Clamp

293650109

$4.00

22

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

23

TANK CAP - Call your local BRP dealership

709200009

Unavailable

24

Grommet

709200285

$7.09

25

Elbow Male Connector

414580600

$3.50

26

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

27

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

28

Spring Clamp

414554800

$0.83

29

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

219700362

Unavailable

30

Grommet

709000582

$4.38

31

HOUSING-TAB - Call your local BRP dealership

710000078

Unavailable

32

Female Terminal

409012100

$3.73

33

Seal

409012300

$4.38

34

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

35

Female Terminal

561503100

Unavailable
