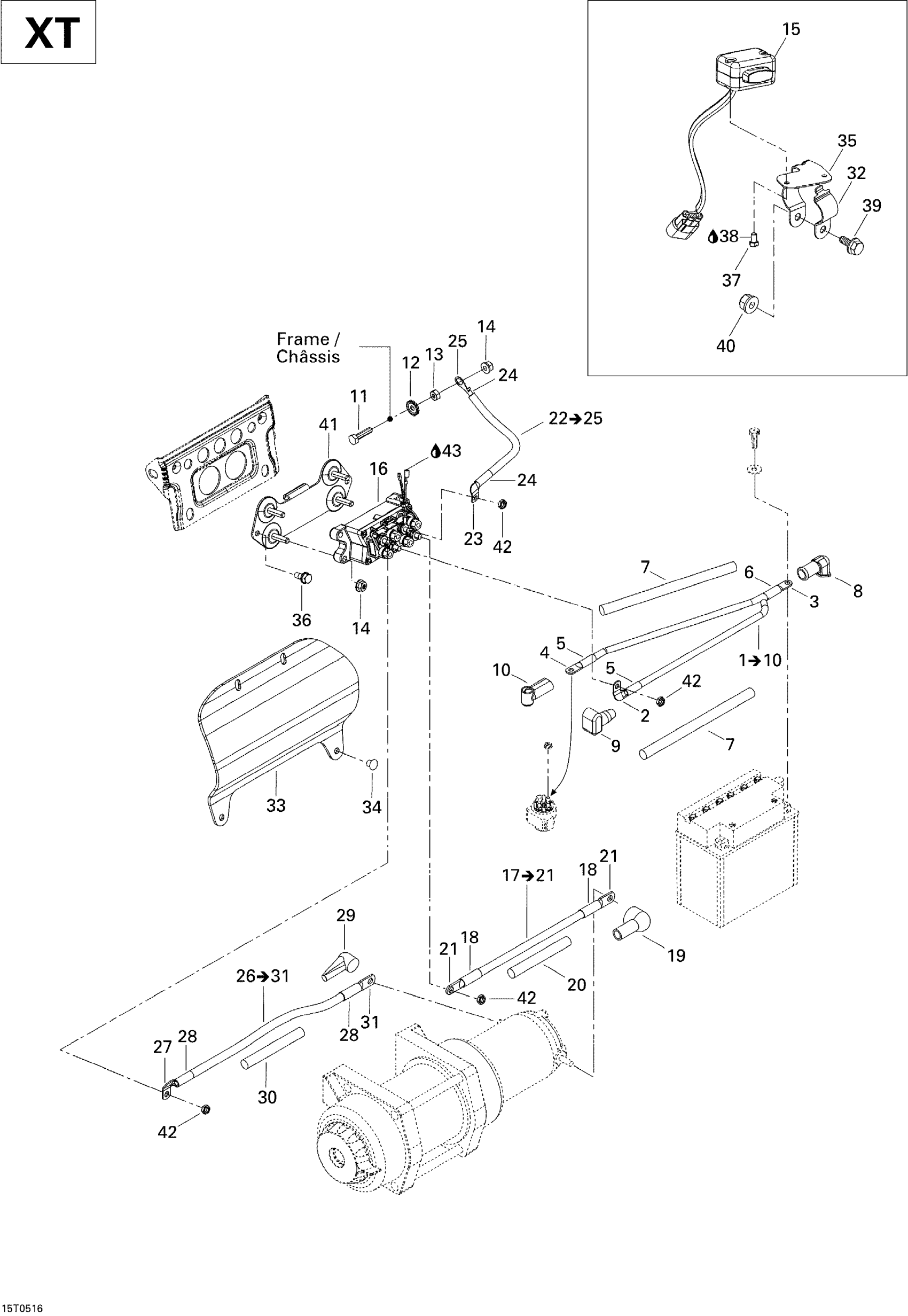

Can-Am Traxter CVT (500, 650, 650 XT), 2005 10- Electrical Harness, Front Section Diagram

#

Description
Price

1

Cable, Battery-solenoid | Includes 1 to 10 / Traxter CVT XT

710000434

Unavailable

2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

3

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

4

Flat Open Barel 6.6 mm

710000479

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

6

Shrink Tubing | XT Models

275500578

Unavailable

7

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

8

Protector Cap

710000495

Unavailable

9

Protector Cap | STD Models

710000523

Unavailable

10

Protector Cap

710000527

Unavailable

11

Hex. Screw M6 X 20 | XT Models

207162044

Unavailable

12

External Serrated Lock Washer 6 mm

234461608

Unavailable

13

Hex. Nut M6

232061414

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

16

Winch Solenoid | XT Models

710001000

Unavailable

17

Winch Solenoid Cable Ass'y | Includes 17 to 21

710000438

Unavailable

18

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

19

Protector Cap

710000494

Unavailable

20

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

21

Open Barrel

710000530

Unavailable

22

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

23

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

24

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

25

Open Barrel

710000530

Unavailable

26

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

27

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

28

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

29

Protector Cap

710000494

Unavailable

30

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

31

Open Barrel

710000530

Unavailable

32

Collar

710000566

Unavailable

33

Protector Pad

710000511

Unavailable

34

Black, Dart

293730011

Unavailable

35

Support, Black

710000564

Unavailable

36

Hex. Forming Screw M6 X 10

210261050

Unavailable

37

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

Unavailable

38

Loctite 243, 10 ml

293800060

Unavailable

39

Hex. Flange Screw M6 X 16

207661654

Unavailable

40

Hex. Flange Elastic Nut M6

233261494

Unavailable

41

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

Unavailable

42

Elastic Stop Nut M6

232561414

Unavailable

43

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
