10- Electrical Harness, Frame

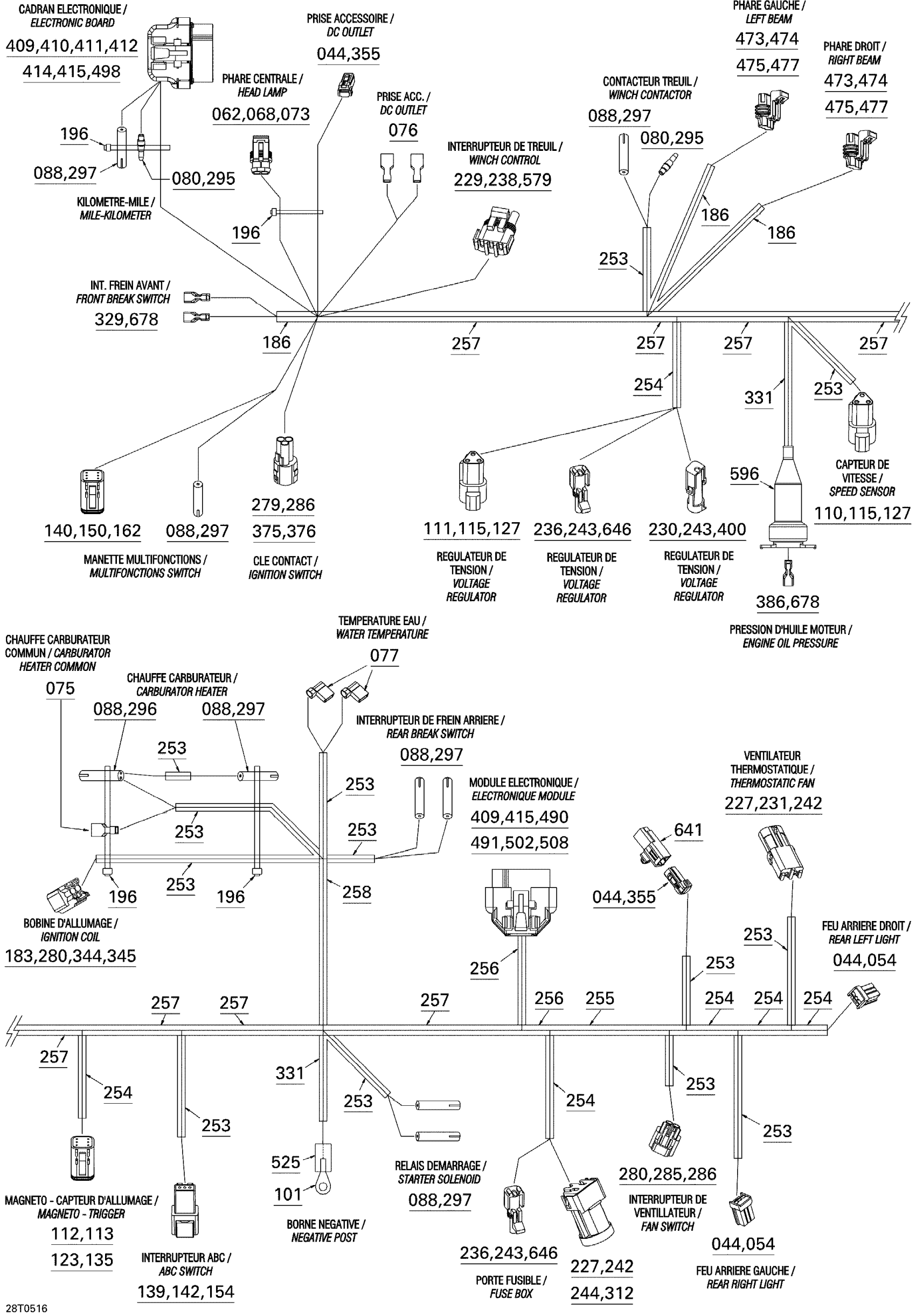

Can-Am Traxter CVT (500, 650, 650 XT), 2005 10- Electrical Harness, Frame Diagram
#
1
Harness Ass'y | Includes 001 to 678
710000686
Unavailable
44
Female Terminal
515175231
Unavailable
54
Female Housing, 3 Circuits
515175495
Unavailable
62
Female Terminal
278001014
Unavailable
68
Female Housing, 2 Circuits
409209500
Unavailable
73
Wire Seal
278001013
Unavailable
75
Female Terminal
409010700
Unavailable
76
Female Terminal
409010800
Unavailable
77
Female Terminal
409010300
Unavailable
80
Male Terminal
278000230
Unavailable
88
Female Terminal | DS 650 X
278001009
Unavailable
101
Open Barrel Terminal
278001392
Unavailable
110
Male Terminal
278000631
Unavailable
111
Male Terminal
515175823
Unavailable
112
Female Terminal
278000632
Unavailable
113
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
115
Male Housing
278002378
Unavailable
123
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
127
Male Lock, 3 Circuits
409207600
Unavailable
135
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
139
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
140
FEMALE TERMINAL - Call your local BRP dealership
409015100
Unavailable
142
MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership
710000044
Unavailable
150
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
409015400
Unavailable
154
MALE LOCK, 3 CIRCUITS - Call your local BRP dealership
710000043
Unavailable
162
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership
409014900
Unavailable
183
WIRE SEAL - Call your local BRP dealership
710000189
Unavailable
186
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
196
Tie Wrap 142 mm
293750002
Unavailable
227
Male Terminal
409004300
Unavailable
229
Female Terminal
278000223
Unavailable
230
Female Housing, 1 Circuit
278000161
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
236
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
238
Male Housing, 3 Circuits
278000273
Unavailable
242
Wire Seal
278000218
Unavailable
243
Wire Seal
710000048
Unavailable
244
Wire Seal
278000216
Unavailable
253
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
267
Was 409901600 Tubing 19mm
219704398
Unavailable
279
Male Terminal
409011300
Unavailable
280
Female Terminal
409012100
Unavailable
285
HOUSING-TAB - Call your local BRP dealership
710000078
Unavailable
286
Seal
409012300
Unavailable
295
Insulated Sheath
278001008
Unavailable
296
Insulated Sheath
278000770
Unavailable
297
Insulated Sheath
278001007
Unavailable
312
MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership
710000107
Unavailable
329
Female Terminal
710000082
Unavailable
331
PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership
219704446
Unavailable
344
FEMELLE HOUSING, 2 CIRCUITS - Call your local BRP dealership
278001637
Unavailable
345
SECONDARY LOCK - Call your local BRP dealership
278001640
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
375
Male Terminal
710000218
Unavailable
376
HOUSING-TAB - Call your local BRP dealership
710000219
Unavailable
386
Female Terminal
710000255
Unavailable
400
MALE TERMINAL - Call your local BRP dealership
278001576
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
414
LOCK - Call your local BRP dealership
515175805
Unavailable
415
Female Terminal
515175806
Unavailable
473
Housing
710000645
Unavailable
474
Female Terminal
278001481
Unavailable
475
Seal
710000643
Unavailable
477
Lock
710000642
Unavailable
490
SEAL WIRE - Call your local BRP dealership
710000394
Unavailable
491
FEMALE HOUSING - Call your local BRP dealership
710000395
Unavailable
498
Female Housing
710000399
Unavailable
502
HOUSING - Call your local BRP dealership
710000413
Unavailable
508
Retainer Block
710000424
Unavailable
525
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
579
Wire Seal
710000504
Unavailable
596
CAP - Call your local BRP dealership
710000670
Unavailable
641
Male Housing, 2 Circuits
710000667
Unavailable
646
Female Terminal
710000682
Unavailable
678
Shrink Tubing
710000750
Unavailable
