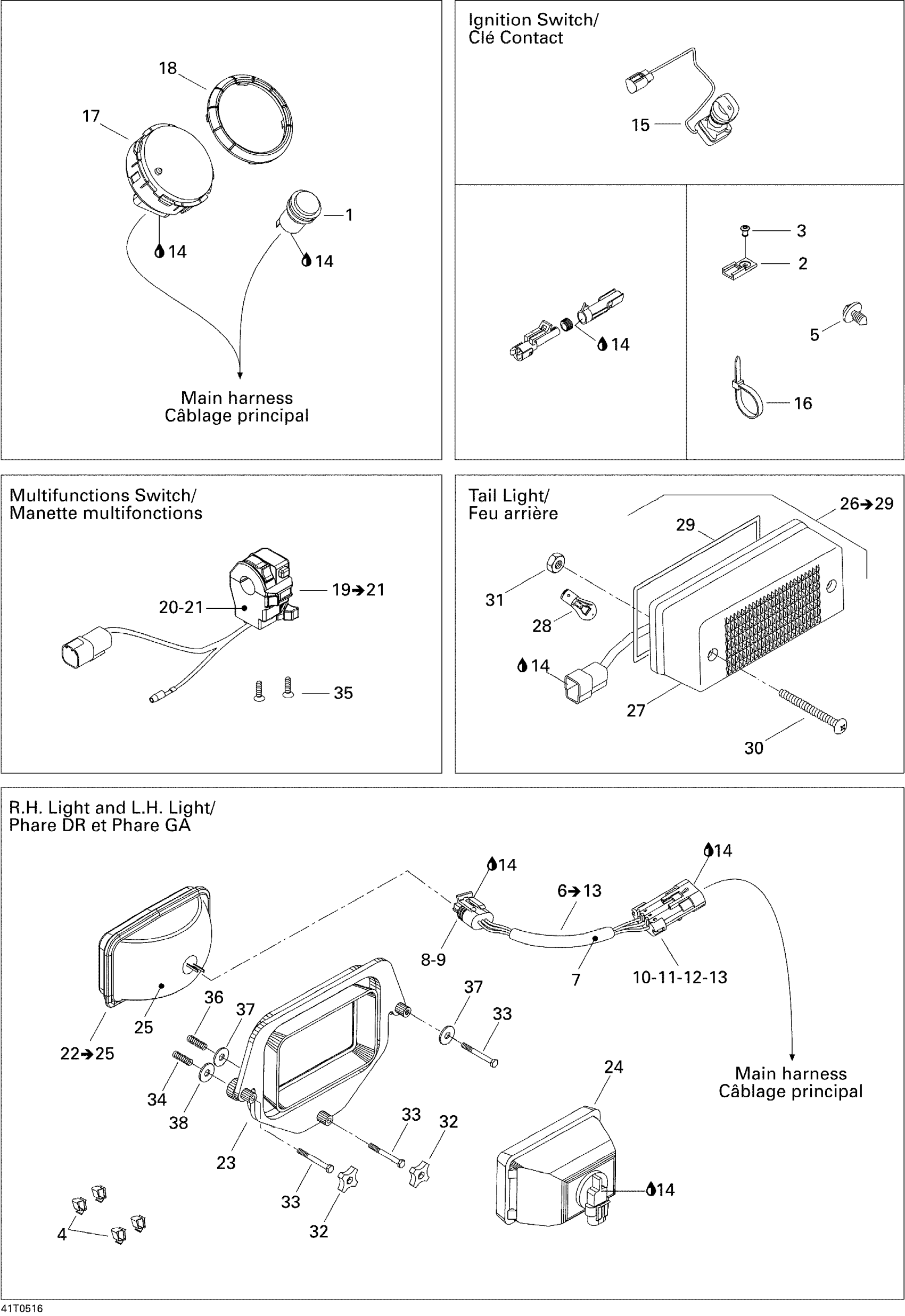

Can-Am Traxter CVT (500, 650, 650 XT), 2005 Electrical Accessories Diagram

#

Description
Price

1

Outlet Power Kit, 12 Volts

861507200

$30.52

2

Clip

270000141

$8.33

3

Pop Rivet 3/16"

390402400

$0.25

4

Clip

414227300

$1.40

5

Mount Dart

293730040

$0.86

6

Beam Adaptor Ass'y | Includes 8 to 15

710000720

Unavailable

7

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

8

Female Terminal

278001114

$2.55

9

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

10

Seal

710000643

$4.00

11

Lock

710000642

$3.43

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

15

Ignition Switch Ass'y | Includes 17 to 21

710000192

Unavailable

15

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

15

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

16

Tie Wrap 368 mm

293750008

$0.85

16

Tie Wrap 142 mm

293750002

$0.88

16

Tie-Rap 180 mm

414115200

$0.09

17

Speedometer

710000674

Unavailable

18

TRIM RING - Call your local BRP dealership

710000353

Unavailable

19

Multi-Function Switch | Includes 19 to 21

710000404

Unavailable

20

CLIP - Call your local BRP dealership

710000631

Unavailable

21

CHOKE LEVER - Call your local BRP dealership

710000632

Unavailable

22

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 31 to 34

710000174

Unavailable

23

LAMP SUPPORT - Call your local BRP dealership

705000283

Unavailable

24

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

25

BULB - Call your local BRP dealership

710000176

Unavailable

26

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$85.79

27

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

28

Bulb

520000758

$7.49

29

GASKET - Call your local BRP dealership

710000129

Unavailable

30

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

31

Hex. Flange Elastic Nut M5

233251414

$1.66

32

Handle

572106600

$9.03

33

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

34

SPRING - Call your local BRP dealership

710000285

Unavailable

35

Socket Head Screw M5 X 35

205053588

$1.56

36

Spring

517168600

$6.70

37

Flat Washer 4 mm, Stainless

234042600

$0.92

38

Flat Washer 4 mm

234040600

$0.46
