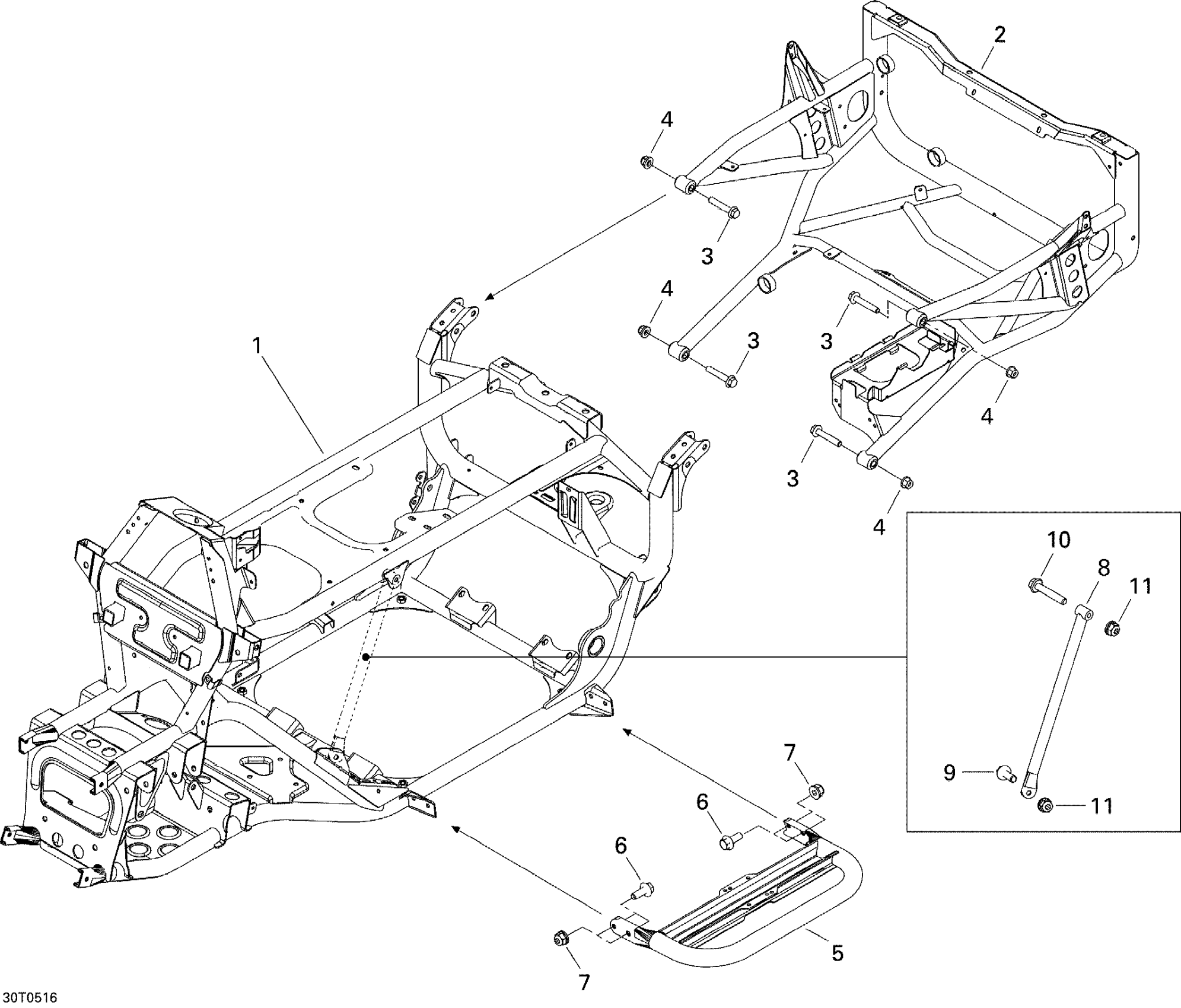

Can-Am Traxter CVT (500, 650, 650 XT), 2005 Frame Diagram

#

Description

Price

1

Black Frame

705200996

Unavailable

2

Frame Extension, Black

705201039

Unavailable

3

Hex. Flange Screw M10 X 55

207605544

$2.78

4

Hex. Flange Elastic Nut M10

233201414

$1.26

5

Footrest, Black

705000610

Unavailable

6

Hex. Flange Screw M8 X 20

207682044

$0.92

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

RH Removable Brace

705200404

Unavailable

8

LH Removable Brace

705200405

Unavailable

9

Hex. Flange Screw M8 X 25

207682544

$0.90

10

Hex. Flange Screw M8 X 50

207685044

$1.39

11

Hex. Flange Elastic Nut M8

233281414

$1.14
