- Traxter CVT (500, 650, 650 XT), 2005
09- Body And Accessories 2

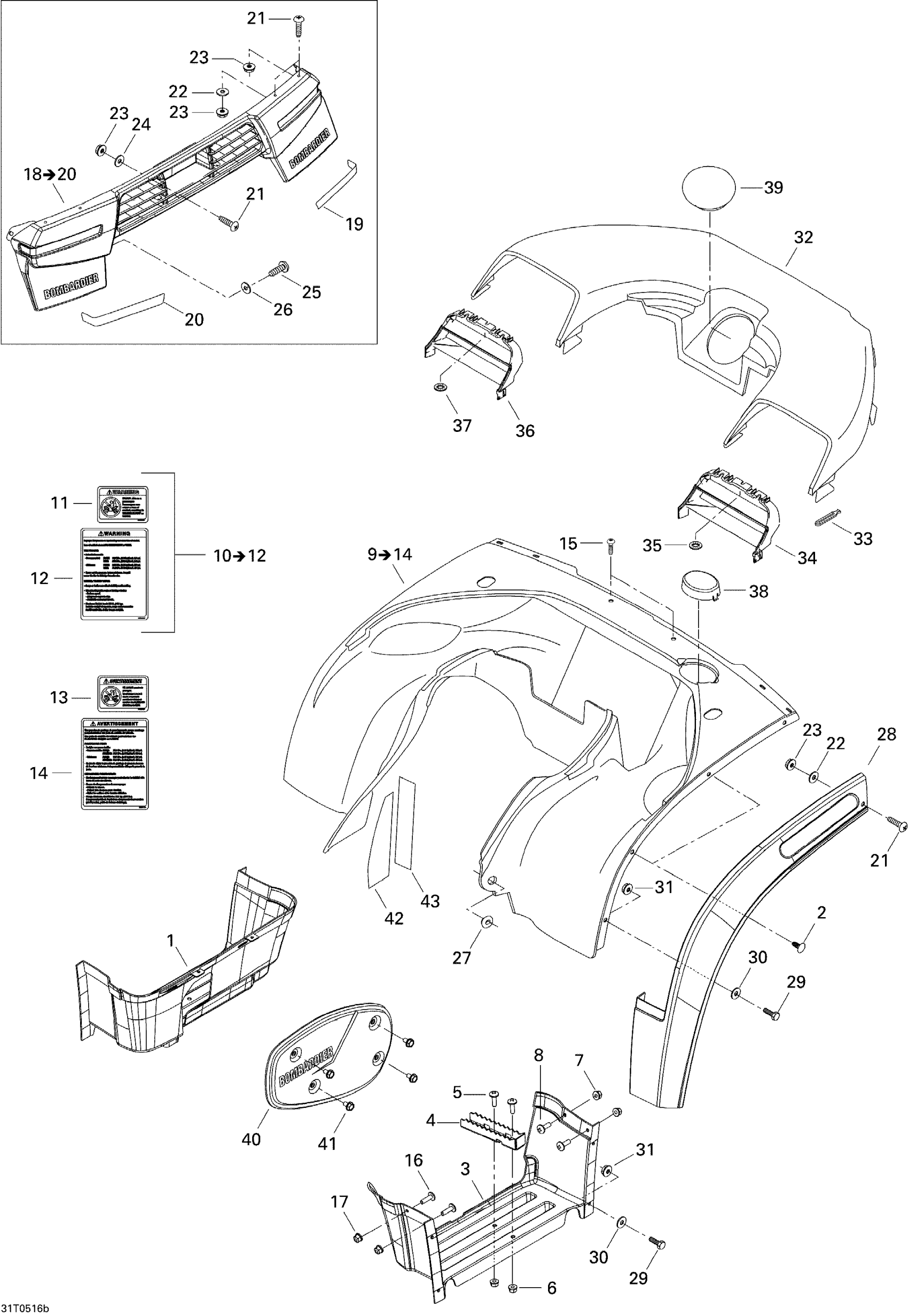

Can-Am Traxter CVT (500, 650, 650 XT), 2005 09- Body And Accessories 2 Diagram
#
1
RH Footboard, Black
705000535
Unavailable
2
Black, Dart
293730011
Unavailable
3
LH Footboard, Black
705000536
Unavailable
4
Footrest, Black
705001083
Unavailable
5
Hex. Flange Screw M6 X 25
207662554
Unavailable
6
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
7
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
8
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
9
Rear Fender, green | Laurentian Green / Includes 9 to 14
703500460
Unavailable
9
Rear Fender, yellow | Yellow / Includes 9 to 14
703500458
Unavailable
9
Rear Fender, red | Viper Red / Includes 9 to 14
703500459
Unavailable
9
Rear Fender, camo | Camo / Includes 9 to 14
703500461
Unavailable
10
WARNING DECAL ASS'Y - Call your local BRP dealership | English version, Includes 4 To 6
704900917
Unavailable
11
WARNING DECAL, PASSENGER - Call your local BRP dealership
704900005
Unavailable
12
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership | English version
704900918
Unavailable
13
Warning Decal, Passenger, French | French Version
704900006
Unavailable
14
Warning Label, tire Pressure | French version
704900919
Unavailable
15
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
16
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14
703500012
Unavailable
19
RH Rear Reflector
704900085
Unavailable
20
LH Rear Reflector
704900086
Unavailable
21
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
22
Flat Washer
224060201
Unavailable
23
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
24
Flat Washer
224060201
Unavailable
25
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
26
Flat Washer
224061121
Unavailable
27
Oval Washer
705005156
Unavailable
28
LH Rear Mudguard
705001575
Unavailable
28
RH Rear Mudguard
705001574
Unavailable
29
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
30
Flat Washer
224060201
Unavailable
31
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
32
Fender Cover, Laurentian Green | Green
705000831
Unavailable
32
Fender Cover, Yellow | Yellow
705000179
Unavailable
32
Fender Cover, Viper Red | Red
705000576
Unavailable
32
Fender Cover, camo | Camo
705000973
Unavailable
33
Windshield Latch
570023800
Unavailable
34
LH Grill, Black
705000180
Unavailable
35
PUSH NUT - Call your local BRP dealership
250100000
Unavailable
36
RH Grill, Black
705000181
Unavailable
37
PUSH NUT - Call your local BRP dealership
250100000
Unavailable
38
COVER, BLACK - Call your local BRP dealership
705000132
Unavailable
39
CAP - Call your local BRP dealership
705000207
Unavailable
40
Heat Shield | Laurentian Green
705001124
Unavailable
40
Heat Shield | Yellow
705001122
Unavailable
40
Heat Shield | Viper Red
705001123
Unavailable
40
Heat Shield | Camo
705000386
Unavailable
41
Hex. Forming Screw M6 X 10
210261050
Unavailable
42
Reflective Sheet
705000491
Unavailable
43
Reflective Sheet
705000492
Unavailable
