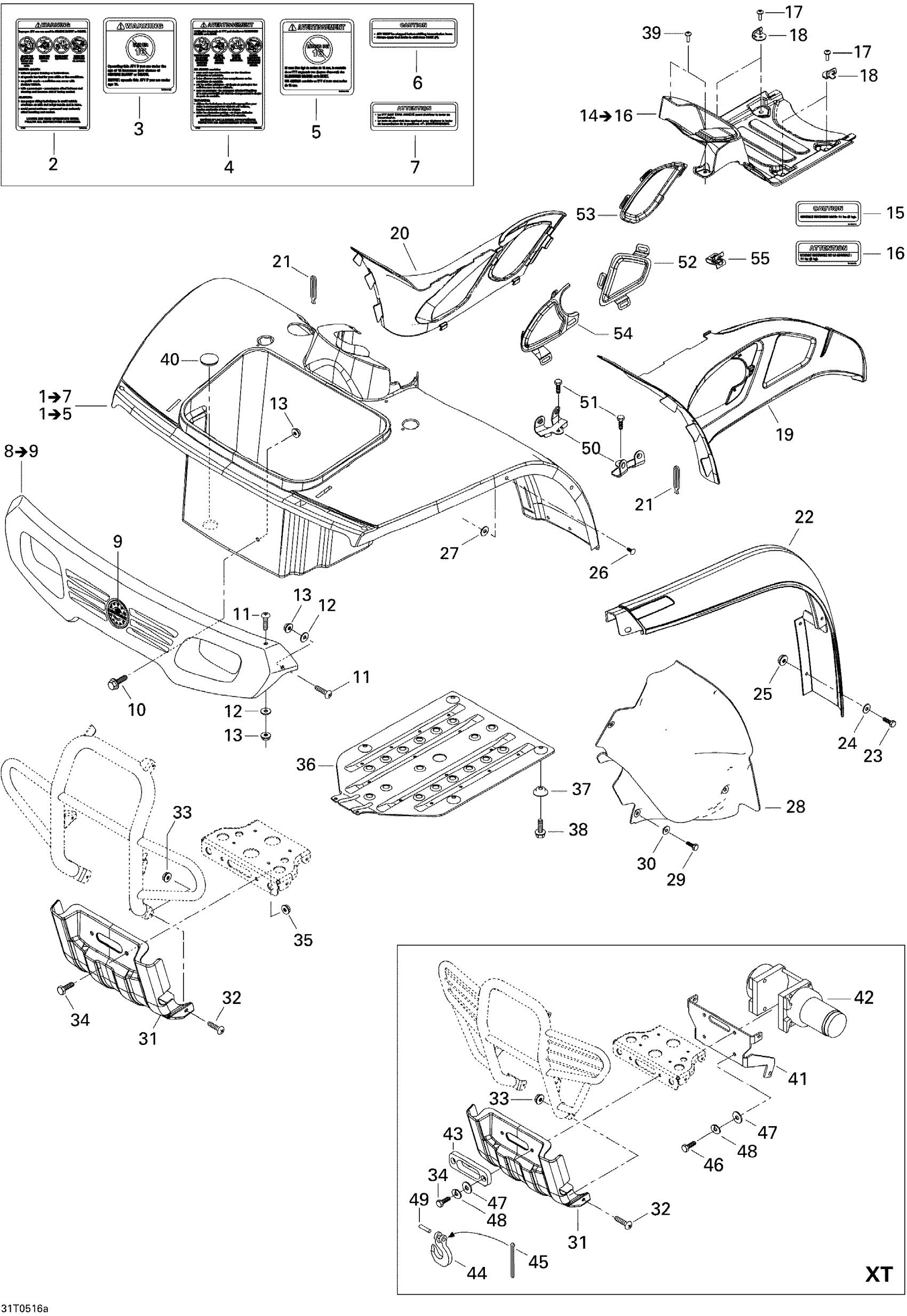

Can-Am Traxter CVT (500, 650, 650 XT), 2005 09- Body And Accessories 1 Diagram

#

Description
Price

1

FRONT FENDER, GREEN - Call your local BRP dealership | Green, Includes 13 To 16

703500393

Unavailable

1

Front Fender, yellow | Yellow, Includes 13 To 16

703500398

Unavailable

1

Front Fender, red | Red, Includes 13 To 16

703500395

Unavailable

1

Front Fender, camo | Camo / Includes 1 to 5

703500392

Unavailable

2

Warning Decal, Death And Injuries | English version

704900001

Unavailable

3

Warning Decal, Under 16 Years Old

704900011

Unavailable

4

Warning Decal, Death And Injuries

704900002

Unavailable

5

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

6

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

7

Caution Decal, Transmission Selector | French version

704900008

Unavailable

8

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

9

BRP Logo 68mm

516008739

Unavailable

10

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

11

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

12

Flat Washer

224060201

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Console Kit, Black | Includes 14 to 16

703500391

Unavailable

15

CAUTION DECAL, CONSOLE LOAD - Call your local BRP dealership | English Version

704900247

Unavailable

16

Caution Decal, Console Load | French Version

704900250

Unavailable

17

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

18

HOOK, BLACK - Call your local BRP dealership

705000369

Unavailable

19

LH Panel, green | Laurentian Green

705000837

Unavailable

19

LH Panel, yellow | Yellow

705000405

Unavailable

19

LH Panel, red | Viper Red

705000570

Unavailable

19

LH Panel, camo | Camo

705000975

Unavailable

20

RH Panel, green | Laurentian Green

705000838

Unavailable

20

RH Panel, yellow | Yellow

705000406

Unavailable

20

RH Panel, red | Viper Red

705000571

Unavailable

20

RH Panel, camo | Camo

705000977

Unavailable

21

Windshield Latch

570023800

Unavailable

22

LH FRONT MUDGUARD - Call your local BRP dealership

705001576

Unavailable

22

RH FRONT MUDGUARD - Call your local BRP dealership

705001577

Unavailable

23

Hex. Screw M6 X 20 | XT Models

207162044

Unavailable

24

Flat Washer

224060201

Unavailable

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

26

Tuflok Plastic Rivet

293150230

Unavailable

27

Flat Washer 8 mm

234082410

Unavailable

28

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

28

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

29

Hex. Flange Screw M6 X 16

210261650

Unavailable

30

Flat Washer

224061201

Unavailable

31

Front Protection Plate, black

705000135

Unavailable

32

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

34

Hex. Flange Screw M10 X 25

207602544

Unavailable

34

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

35

Hex. Flange Elastic Nut M10

233201414

Unavailable

36

SKID PLATE - Call your local BRP dealership

705200536

Unavailable

37

CUP - Call your local BRP dealership

705200533

Unavailable

38

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

39

Tuflock Phillips Plastic Screw

414745900

Unavailable

40

Rubber Cover

570041600

Unavailable

41

Mounting Plate | Traxter 5 Speed XT

705000994

Unavailable

42

WINCH - Call your local BRP dealership

705000839

Unavailable

43

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

44

Winch Hook Kit

705014949

Unavailable

45

Cotter Pin

250400022

Unavailable

46

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

47

Flat Washer 8 mm

234081410

Unavailable

48

Lock Washer 8 mm

234181401

Unavailable

49

Clevis Pin

250400021

Unavailable

50

Bracket, Black

705000311

Unavailable

51

Hex. Forming Screw M6 X 10

210261050

Unavailable

52

LH Rear Grill, Black

705000367

Unavailable

53

RH Rear Grill, Black

705000366

Unavailable

54

LH Front Grill

705000368

Unavailable

55

Edge Clip

517302785

Unavailable
