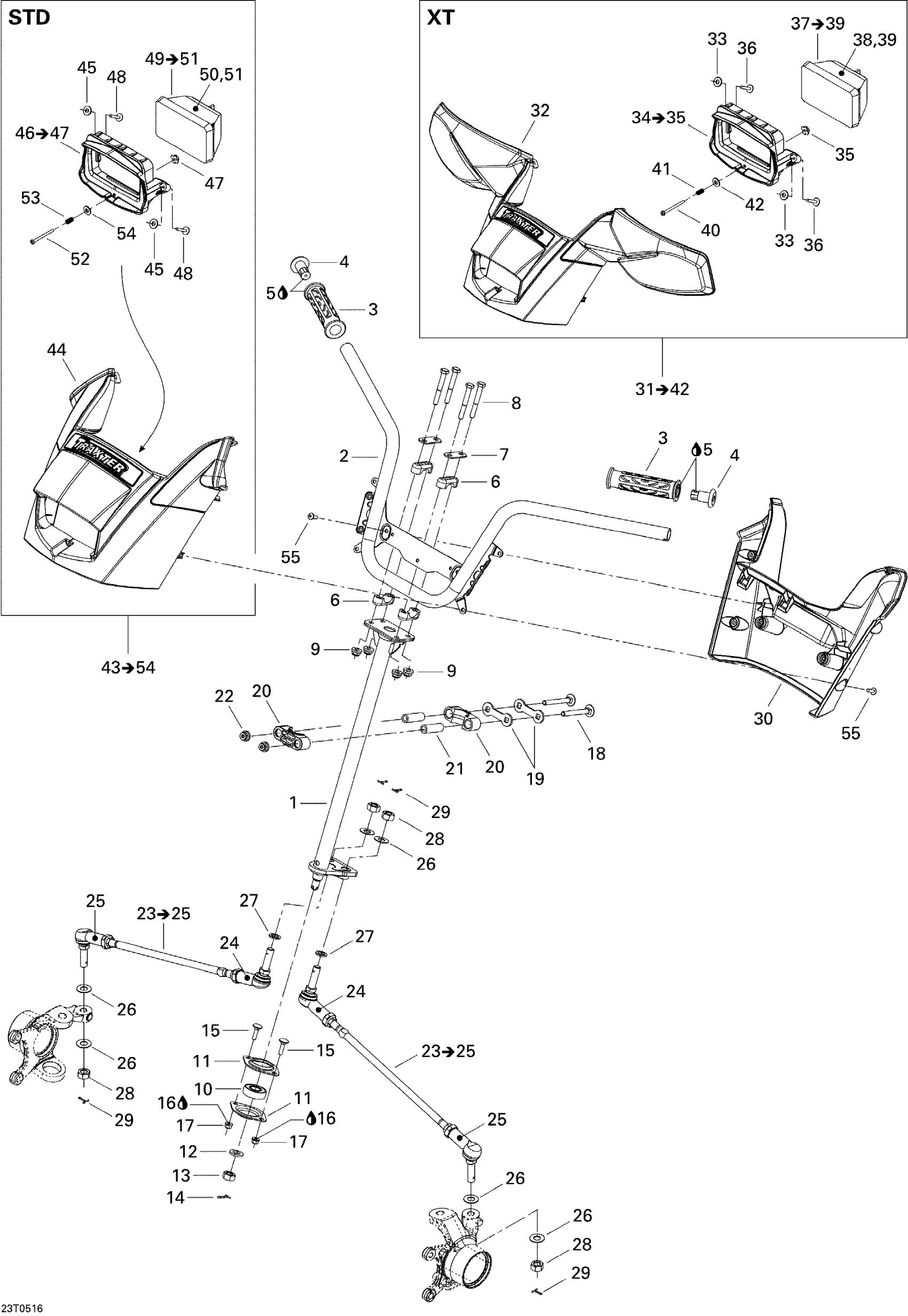

Can-Am Traxter CVT (500, 650, 650 XT), 2005 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400305

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400300

Unavailable

3

Handle Grip

709400493

Unavailable

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

Unavailable

6

Steering Support

709400919

Unavailable

7

Stiffner

709400509

Unavailable

8

Hex. Screw M8 X 60

207086046

Unavailable

9

Hex. Elastic Flange Nut M8

233281416

Unavailable

10

Ball Bearing

709400439

Unavailable

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

Unavailable

13

Nut M12

250100099

Unavailable

14

Cotter Pin

211400017

Unavailable

15

Carriage Bolt M6 X 25

207762544

Unavailable

16

Loctite 243, 10 ml

293800060

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Carriage Bolt M8 X 70

207787044

Unavailable

19

Stopper Plate

506150600

Unavailable

20

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

21

Housing Bushing

506150500

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

24

RH Ball Joint

709402302

Unavailable

25

LH Ball Joint

709402303

Unavailable

26

Hardened Washer

706200281

Unavailable

27

Washer

503189276

Unavailable

28

Nut M12

250100099

Unavailable

29

Cotter Pin

211400013

Unavailable

30

REAR STEERING COVER - Call your local BRP dealership

709400252

Unavailable

31

FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter XT 5 Speed / Includes 37 to 48

709400333

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Washer M5

250200025

Unavailable

34

Light Stand Ass'y | Includes 40 to 41

709400296

Unavailable

35

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

36

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

37

CENTRAL HEADLAMP ASS'Y - Call your local BRP dealership | Includes 43 to 45

710000712

Unavailable

38

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

39

BULB - Call your local BRP dealership

710000762

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Spring

517168600

Unavailable

42

Washer M5

250200025

Unavailable

43

FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter STD 5 Speed / Includes 37 to 48

709400334

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Washer M5

250200025

Unavailable

46

Light Stand Ass'y | Includes 40 to 41

709400296

Unavailable

47

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

48

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

49

CENTRAL HEADLAMP ASS'Y - Call your local BRP dealership | Includes 43 to 45

710000712

Unavailable

50

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

51

BULB - Call your local BRP dealership

710000762

Unavailable

52

Not Available As Spare Part - Friction Washer

Unavailable

53

Spring

517168600

Unavailable

54

Washer M5

250200025

Unavailable

55

Torx Screw K50 X 16

250000720

Unavailable
