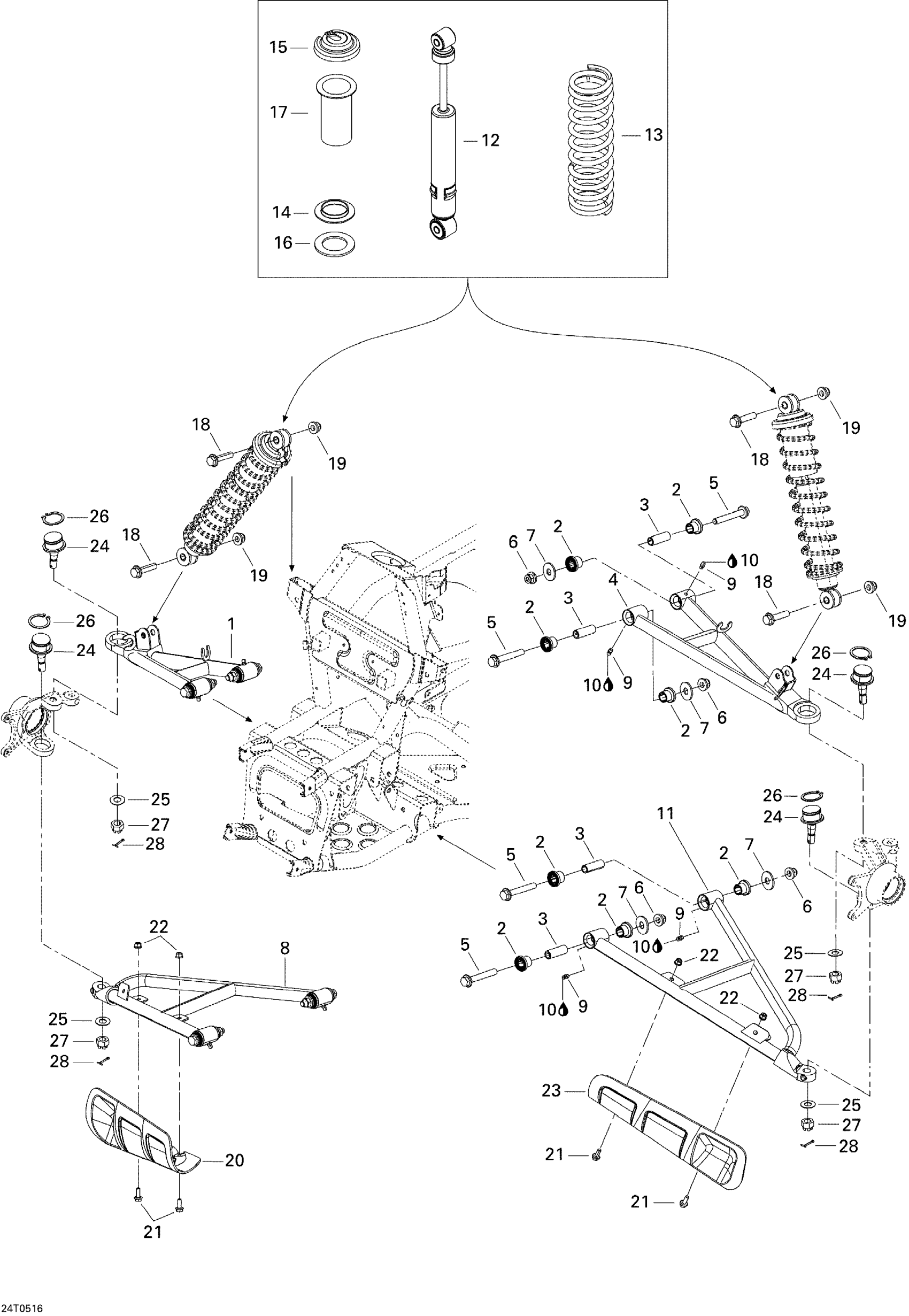

Can-Am Traxter CVT (500, 650, 650 XT), 2005 07- Front Suspension Diagram

#

Description
Price

1

RH UPPER ARM, BLACK - Call your local BRP dealership

706200318

Unavailable

2

Bushing

706200181

Unavailable

3

Sleeve

706201587

Unavailable

4

LH Upper Arm, Black

706200320

Unavailable

5

Hex. Flange Screw M10 X 70

207607046

Unavailable

6

Hex. Flange Elastic Nut M10

233201436

Unavailable

7

Conical Spring Washer 10 mm

234201474

Unavailable

8

RH LOWER ARM, BLACK - Call your local BRP dealership

706200360

Unavailable

9

Grease Fitting

408200700

Unavailable

10

Synthetic Grease, 400 G

293550010

Unavailable

11

LH LOWER ARM, BLACK - Call your local BRP dealership

706200365

Unavailable

12

FRONT SHOCK - Call your local BRP dealership

706200429

Unavailable

13

Yellow Front Spring | Traxter 5-Speed STD

706200467

Unavailable

13

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Traxter 5-Speed XT

706200470

Unavailable

13

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Traxter CVT STD (Camo)

706200469

Unavailable

13

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Traxter CVT XT (Camo)

706200472

Unavailable

14

SPRING GUIDE - Call your local BRP dealership

706200460

Unavailable

15

Spring Stopper

706200881

Unavailable

16

WASHER - Call your local BRP dealership

706000375

Unavailable

17

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

18

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

19

Hex. Flange Elastic Nut M10

233201414

Unavailable

20

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

21

Hex. Flange Screw M6 X 16

207661644

Unavailable

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

23

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

24

Ball Joint

706200653

Unavailable

25

Hardened Washer

706200281

Unavailable

26

Circlip 32 mm

293370009

Unavailable

27

Hex. Castellated Nut M12

232221414

Unavailable

28

Cotter Pin

211400017

Unavailable
