06- Hydraulic Brake

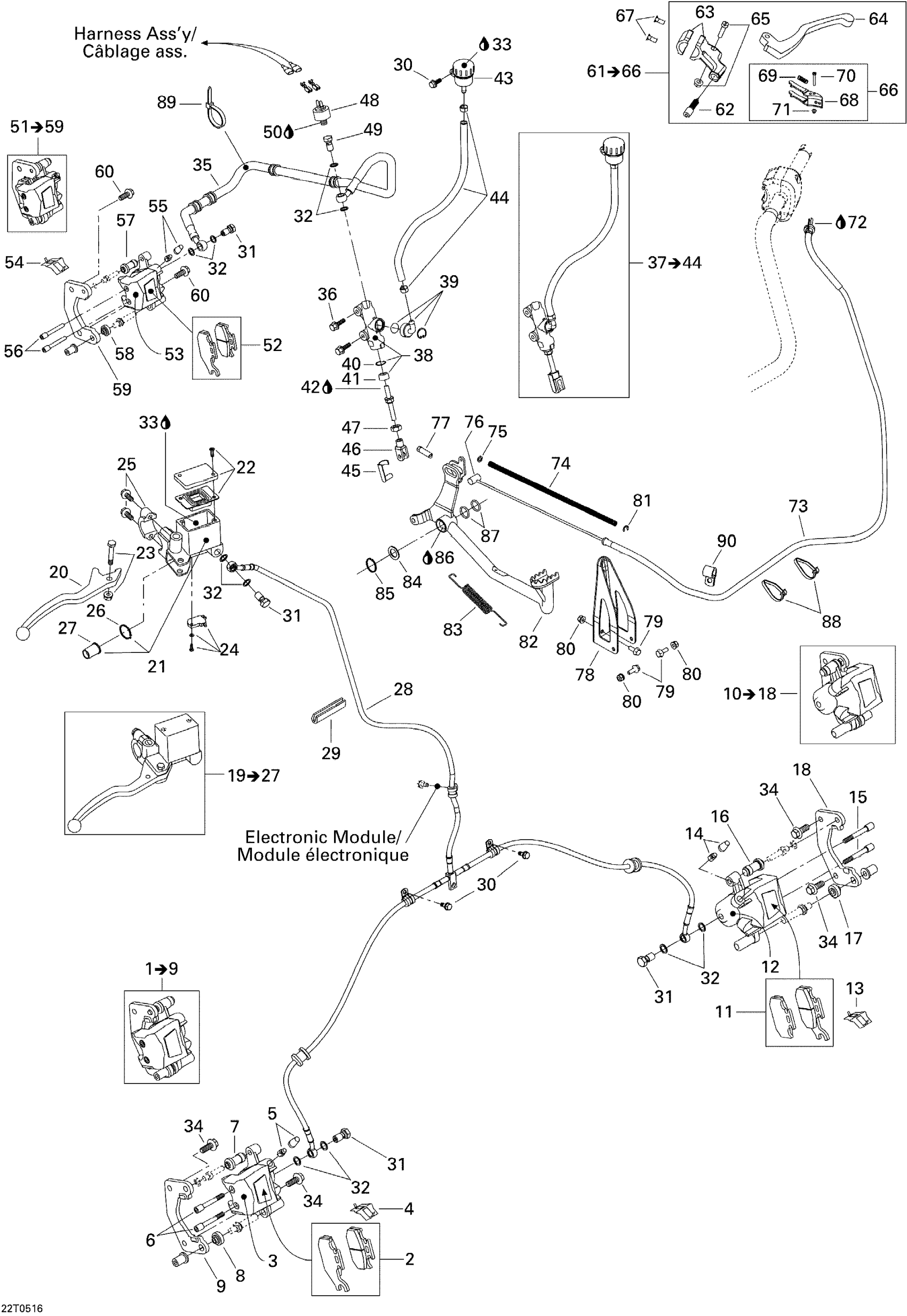

Can-Am Traxter CVT (500, 650, 650 XT), 2005 06- Hydraulic Brake Diagram
#
1
RH Caliper | Includes 1 To 9
705600118
Unavailable
2
Brake Pad Kit
705600004
Unavailable
3
Piston Set
705600078
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
LH Caliper | Includes 10 To 18
705600119
Unavailable
11
Brake Pad Kit
705600014
Unavailable
12
Piston Set
705600078
Unavailable
13
Spring
705600079
Unavailable
14
Bleeding Screw
705600080
Unavailable
15
Pin Set (2)
705600081
Unavailable
16
Compression Boot
705600082
Unavailable
17
Compression Boot
705600083
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27
705600120
Unavailable
20
LEVER ARM - Call your local BRP dealership
705600164
Unavailable
21
PISTON KIT - Call your local BRP dealership
705600152
Unavailable
22
Cap Set
705600084
Unavailable
23
BOLT KIT - Call your local BRP dealership
705600085
Unavailable
24
SWITCH KIT - Call your local BRP dealership
705600148
Unavailable
25
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
26
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
27
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
28
Brake Hose
705600290
Unavailable
29
TRIM 30000MM LONG - Call your local BRP dealership
219704405
Unavailable
30
Hex. Flange Screw M6 X 16
210261650
Unavailable
31
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
32
Washer
414920600
Unavailable
33
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
33
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
34
Hex. Screw M10 X 20, Scotch Grip
250000057
Unavailable
35
Rear Brake Flexible Hose
705600291
Unavailable
36
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
37
REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership
705600154
Unavailable
38
Piston Set
705600063
Unavailable
39
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
40
Circlip
705600068
Unavailable
41
Compression Boot
705600090
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
Oil Tank, Brake Fluid Reservoir
705600182
Unavailable
44
OIL HOUSING HOSE - Call your local BRP dealership
705600169
Unavailable
45
Pin Kit
219702305
Unavailable
46
Yoke
705600100
Unavailable
47
Hex. Nut M8
232081414
Unavailable
48
Interrupteur *Brake Switch
710001345
Unavailable
49
BANJO BOLT - Call your local BRP dealership
705600092
Unavailable
50
Was 293800013 Loctite 56765
219704454
Unavailable
51
REAR CALIPER - Call your local BRP dealership | Includes 51 To 59
705600122
Unavailable
52
Brake Pad Kit
705600150
Unavailable
53
Piston Set
705600078
Unavailable
54
Spring
705600079
Unavailable
55
Bleeding Screw
705600080
Unavailable
56
Pin Set (2)
705600081
Unavailable
57
Compression Boot
705600082
Unavailable
58
Compression Boot
705600083
Unavailable
59
Not Available As Spare Part - Friction Washer
Unavailable
60
Hex. Screw M10 X 14, Scotch Grip
250000163
Unavailable
61
Brake Handle | Includes 61 to 66
705600269
Unavailable
62
Cable Screw
250000030
Unavailable
63
CLAMP KIT - Call your local BRP dealership
705600270
Unavailable
64
LEVER - Call your local BRP dealership
705600186
Unavailable
65
Pivot Kit
705600187
Unavailable
66
Lever Lock Kit
705600188
Unavailable
67
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
205351646
Unavailable
68
LOCK LEVER - Call your local BRP dealership
705600387
Unavailable
69
SPRING - Call your local BRP dealership
705600225
Unavailable
70
Screw M3 X 22
208032291
Unavailable
71
Elastic Stop Nut M3
232531423
Unavailable
72
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
Unavailable
73
REAR BRAKE CABLE - Call your local BRP dealership
705600124
Unavailable
74
Spring
705600173
Unavailable
75
FLAT WASHER - Call your local BRP dealership
705600145
Unavailable
76
CABLE BARREL - Call your local BRP dealership
705600146
Unavailable
77
NUT - Call your local BRP dealership
705600388
Unavailable
78
Cable Support
705600191
Unavailable
79
Hex. Flange Screw M6 X 16
207661644
Unavailable
80
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
81
Circlip
705600272
Unavailable
82
BRAKE PEDAL, BLACK - Call your local BRP dealership
705600125
Unavailable
83
BRAKE PEDAL SPRING - Call your local BRP dealership
705600107
Unavailable
84
WASHER - Call your local BRP dealership
503107800
Unavailable
85
CIRCLIP - Call your local BRP dealership
293370012
Unavailable
86
Synthetic Grease, 400 G
293550010
Unavailable
87
O-RING - Call your local BRP dealership
293300053
Unavailable
88
Tie-Rap 180 mm
414115200
Unavailable
89
Tie Wrap 368 mm
293750008
Unavailable
90
CLIP - Call your local BRP dealership
414351600
Unavailable
