02- Fuel System

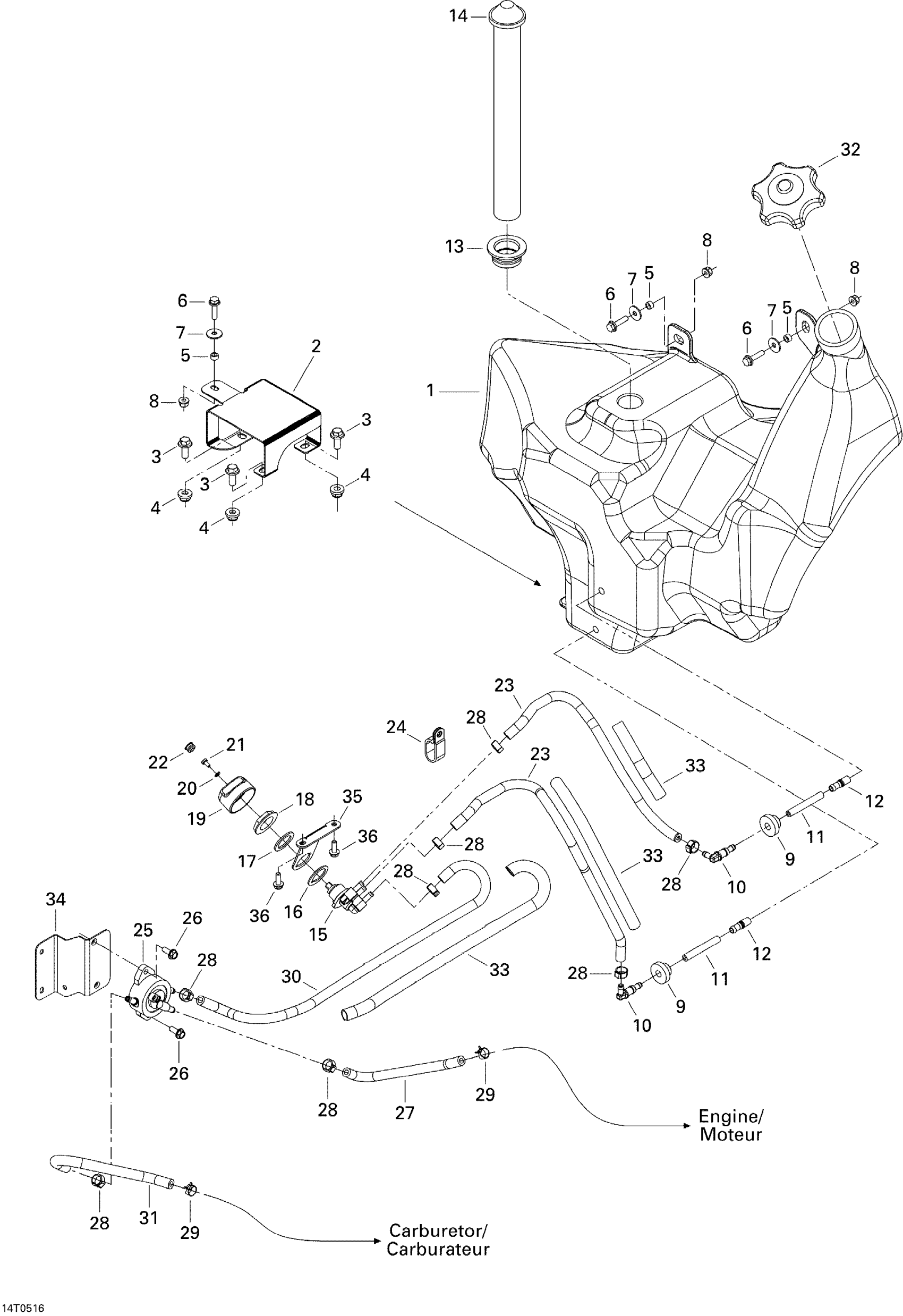

Can-Am Traxter CVT (500, 650, 650 XT), 2005 02- Fuel System Diagram
#
1
Fuel Tank
709000035
Unavailable
2
Fuel Tank Support, Black
709000039
Unavailable
3
Hex. Flange Screw M8 X 20
207682044
Unavailable
4
Hex. Flange Elastic Nut M8
233281414
Unavailable
5
Bushing | DS 650 X
293900104
Unavailable
6
Hex. Flange Screw M6 X 25
207662544
Unavailable
7
Flat Washer
224061201
Unavailable
8
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
9
Grommet
570045500
Unavailable
10
Elbow Male Connector
414580600
Unavailable
11
Polyurethane Hose 10000Mm Long
219704410
Unavailable
12
Fuel Filter
414865700
Unavailable
13
Grommet
293720058
Unavailable
14
FUEL GAUGE - Call your local BRP dealership
709000078
Unavailable
15
Fuel Valve
275500098
Unavailable
16
GASKET - Call your local BRP dealership
293250004
Unavailable
17
Washer
250200015
Unavailable
18
HEX. PLASTIC NUT - Call your local BRP dealership
212100009
Unavailable
19
FUEL VALVE KNOB, BLACK - Call your local BRP dealership
275500263
Unavailable
20
Flat Washer 4 mm
234040600
Unavailable
21
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
22
Black, Cap
275500241
Unavailable
23
Hose
219704549
Unavailable
24
Open Clamp
709000057
Unavailable
25
Gas Pump
709000103
Unavailable
26
Hex. Flange Screw M6 X 16
210261650
Unavailable
27
FORMED HOSE - Call your local BRP dealership
709000047
Unavailable
28
Oetiker Clamp
293650042
Unavailable
29
Spring Clamp
414415200
Unavailable
30
Formed Hose
709000068
Unavailable
31
GAS HOSE - Call your local BRP dealership
709000104
Unavailable
32
FUEL CAP - Call your local BRP dealership
709000059
Unavailable
33
Was 409901800 Tubing (13 mm)
219704400
Unavailable
34
Support Pump, Black
709000111
Unavailable
35
Valve Support, Black
709000070
Unavailable
36
Hex. Flange Screw M6 X 16
210261650
Unavailable
