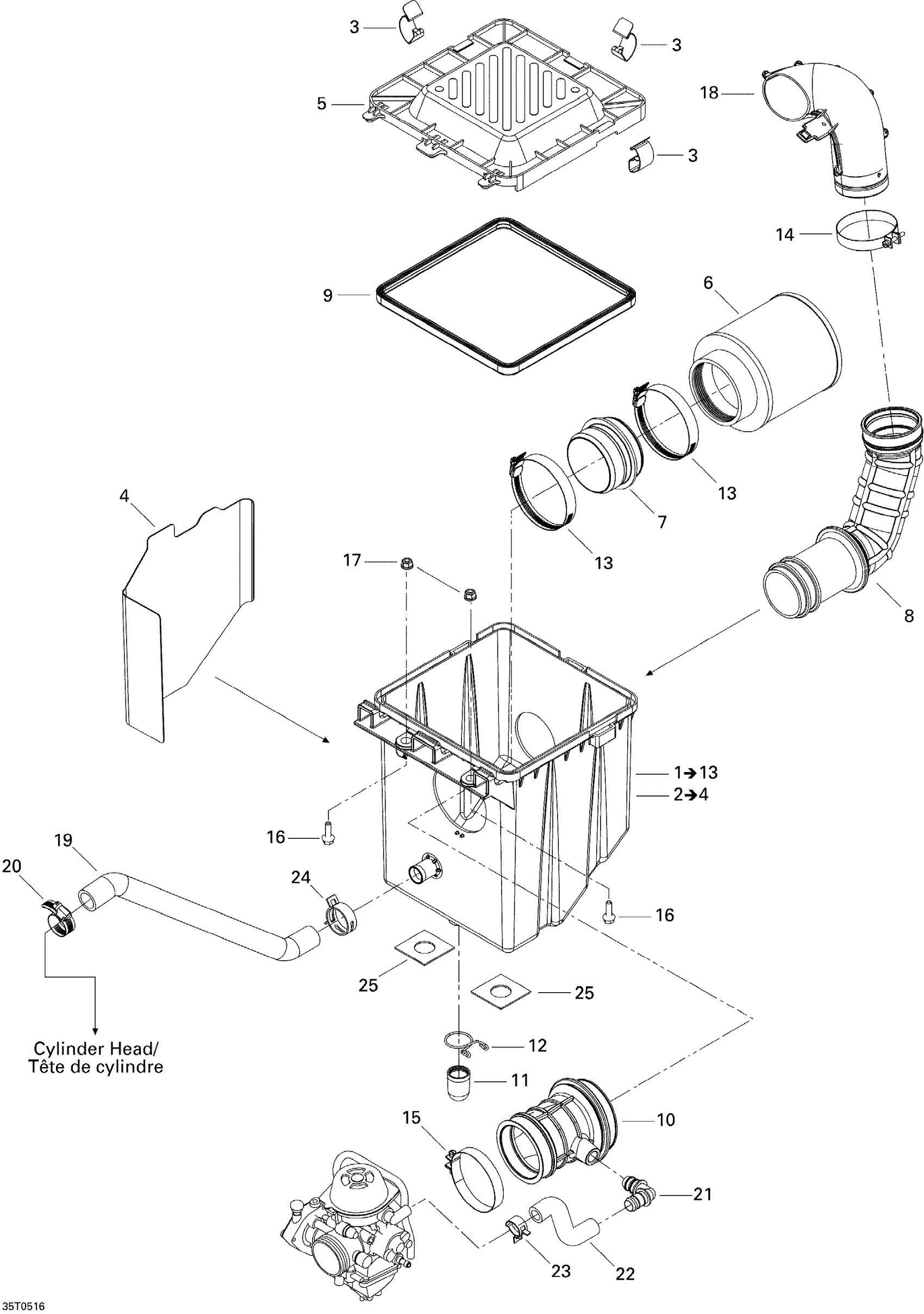

Can-Am Traxter CVT (500, 650, 650 XT), 2005 02- Air Intake Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Silencer Base Ass'y | Includes 2 to 4

707800190

Unavailable

3

Bracket Cover

707800079

Unavailable

4

HEAT PROTECTOR - Call your local BRP dealership

707800083

Unavailable

5

MUFFLER COVER - Call your local BRP dealership

707800158

Unavailable

6

Air Filter

707800072

Unavailable

7

Adaptor

707800077

Unavailable

8

Rear Intake Adaptor

707800195

Unavailable

9

OIL SEAL - Call your local BRP dealership

293250113

Unavailable

10

Front Air-Intake

707800065

Unavailable

11

Drain Tube

707800080

Unavailable

12

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

13

Tridon Clamp

293650179

Unavailable

14

Gemi Clamp

293650158

Unavailable

15

GEMI CLAMP - Call your local BRP dealership

293650159

Unavailable

16

Hex. Flange Screw M6 X 20

207662044

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Rear Hose Intake

707800133

Unavailable

19

Rear Vent Hose

707800165

Unavailable

20

Tridon Gear Clamp

293650173

Unavailable

21

90 Fitting-Elbow

293710098

Unavailable

22

VENT HOSE - Call your local BRP dealership

707800132

Unavailable

23

Norma Clamp

293650110

Unavailable

24

Norma Spring Clamp

293650108

Unavailable

25

Rubber Bumper

293830091

Unavailable
