- Traxter CVT (500, 650, 650 XT), 2005
01- Engine And Engine Support

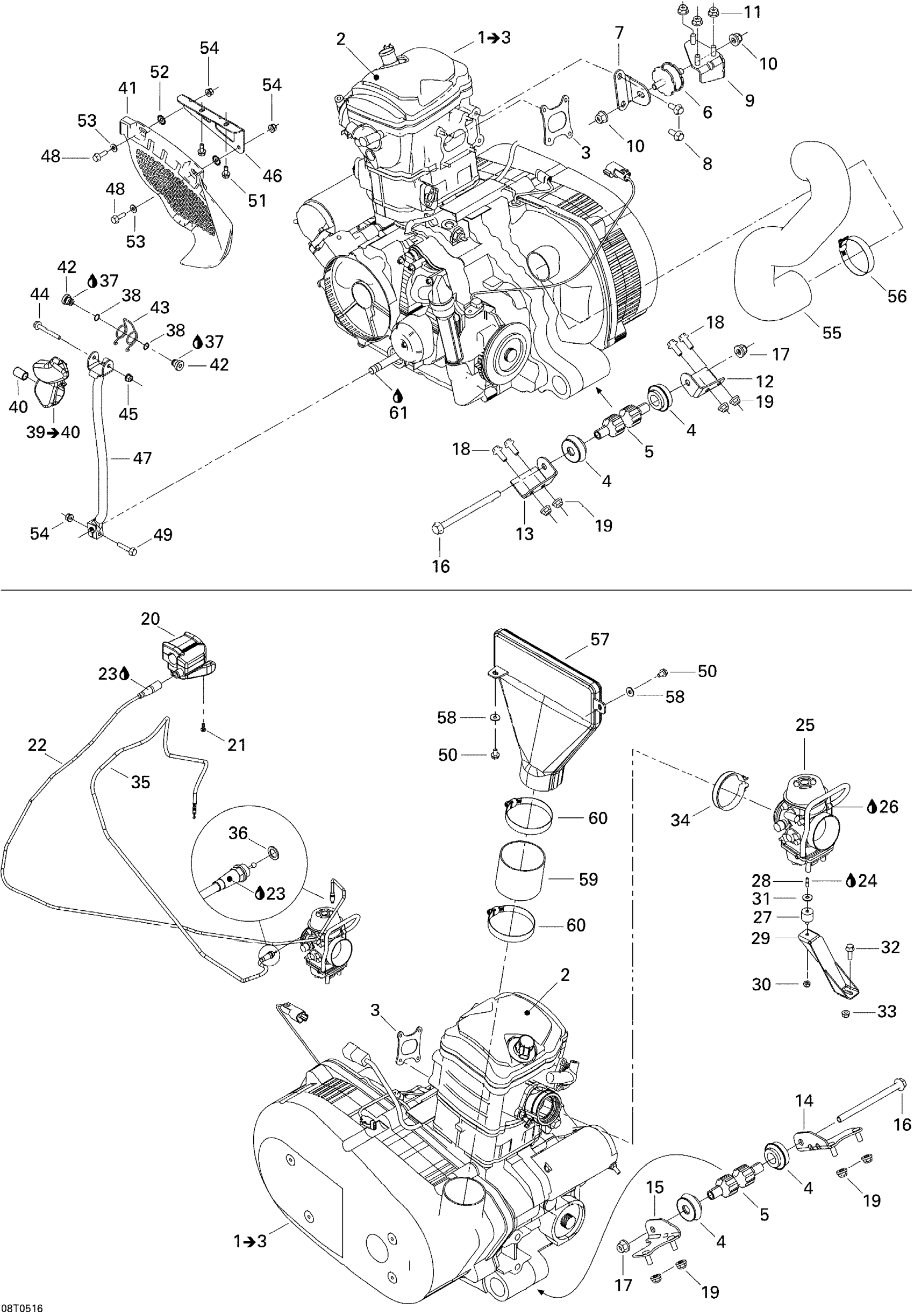

Can-Am Traxter CVT (500, 650, 650 XT), 2005 01- Engine And Engine Support Diagram
#
1
Rotax 4 Stroke Engine «610» | Traxter 650 CVT, Includes 1 To 3
707000358
Unavailable
1
Rotax 4 Stroke Engine"514" | Traxter 500 CVT, Includes 1 To 3
707000359
Unavailable
2
Valve Cover
420660201
Unavailable
3
GASKET - Call your local BRP dealership
420950680
Unavailable
4
Anti-Vibration Mount
707000094
Unavailable
5
ENGINE SUPPORT BUSHING - Call your local BRP dealership
707000019
Unavailable
6
RUBBER MOUNT - Call your local BRP dealership
707000174
Unavailable
7
Engine Support, Black
707000159
Unavailable
8
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
9
Engine Bracket
707000161
Unavailable
10
Hex. Flange Elastic Nut M10
233201414
Unavailable
11
Hex. Flange Elastic Nut M8
233281414
Unavailable
12
LH FRONT ENGINE BRACKET, BLACK - Call your local BRP dealership
707000132
Unavailable
13
RH Front Engine Bracket, Black
707000101
Unavailable
14
RH Rear Engine Bracket
707000207
Unavailable
15
LH Rear Engine Bracket
707000210
Unavailable
16
Hex. Flange Screw M10 X 140
230604044
Unavailable
17
Hex. Flange Elastic Nut M10
233201414
Unavailable
18
Hex. Flange Screw M8 X 20
207682044
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
THROTTLE HANDLE - Call your local BRP dealership | 2X4
707000370
Unavailable
21
Socket Head Screw M5 X 25
205052588
Unavailable
22
THROTTLE CABLE - Call your local BRP dealership
707000313
Unavailable
23
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
Unavailable
24
Loctite 243, 10 ml
293800060
Unavailable
25
CARBURETOR BSR42-7 - Call your local BRP dealership | Traxter 500 CVT
707200181
Unavailable
25
CARBURATOR BSR42-8 - Call your local BRP dealership | Traxter 650 CVT
707200186
Unavailable
26
Glue Tube, Loctite 454, 20 G
413708300
Unavailable
27
Anti-vibration Mount
707000248
Unavailable
28
THREADED INSERT - Call your local BRP dealership
707000250
Unavailable
29
CABURETOR SUPPORT - Call your local BRP dealership
707000252
Unavailable
30
HEX. ELASTIC STOP NUT - Call your local BRP dealership
212000006
Unavailable
31
Washer | DS 650 X
391301600
Unavailable
32
Hex. Flange Screw M6 X 20
207662044
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
Gemi Clamp
293650157
Unavailable
35
CHOKE CABLE - Call your local BRP dealership
707000314
Unavailable
36
O-RING - Call your local BRP dealership
293300075
Unavailable
37
Synthetic Grease, 400 G
293550010
Unavailable
38
O-RING - Call your local BRP dealership
293300081
Unavailable
39
SHIFTER HANDLE - Call your local BRP dealership | Includes 39 To 40
705500282
Unavailable
40
Bushing
707000103
Unavailable
41
Transmission Guide
707000139
Unavailable
42
PIVOT SLEEVE - Call your local BRP dealership
707000205
Unavailable
43
LEVER SPRING - Call your local BRP dealership
705500283
Unavailable
44
Hex. Flange Screw M6 X 50
207665044
Unavailable
45
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
46
Guide Support, Black
707000297
Unavailable
47
LOWER LEVER - Call your local BRP dealership
707000169
Unavailable
48
Hex. Flange Screw M6 X 25
207662544
Unavailable
49
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
50
Hex. Forming Screw M6 X 10
210261050
Unavailable
51
Hex. Flange Screw M6 X 16
210261650
Unavailable
52
Lock Washer Serrated M6
250200041
Unavailable
53
Flat Washer
250200082
Unavailable
54
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
55
AIR INTAKE - Call your local BRP dealership
707000152
Unavailable
56
Tridon Clamp
293650023
Unavailable
57
Exhaust
707000153
Unavailable
58
Flat Washer
224061201
Unavailable
59
FLEXIBLE ADAPTOR - Call your local BRP dealership
707000154
Unavailable
60
Tridon Clamp
293650064
Unavailable
61
Loctite 271, 10 ml
293800005
Unavailable
