Partiron

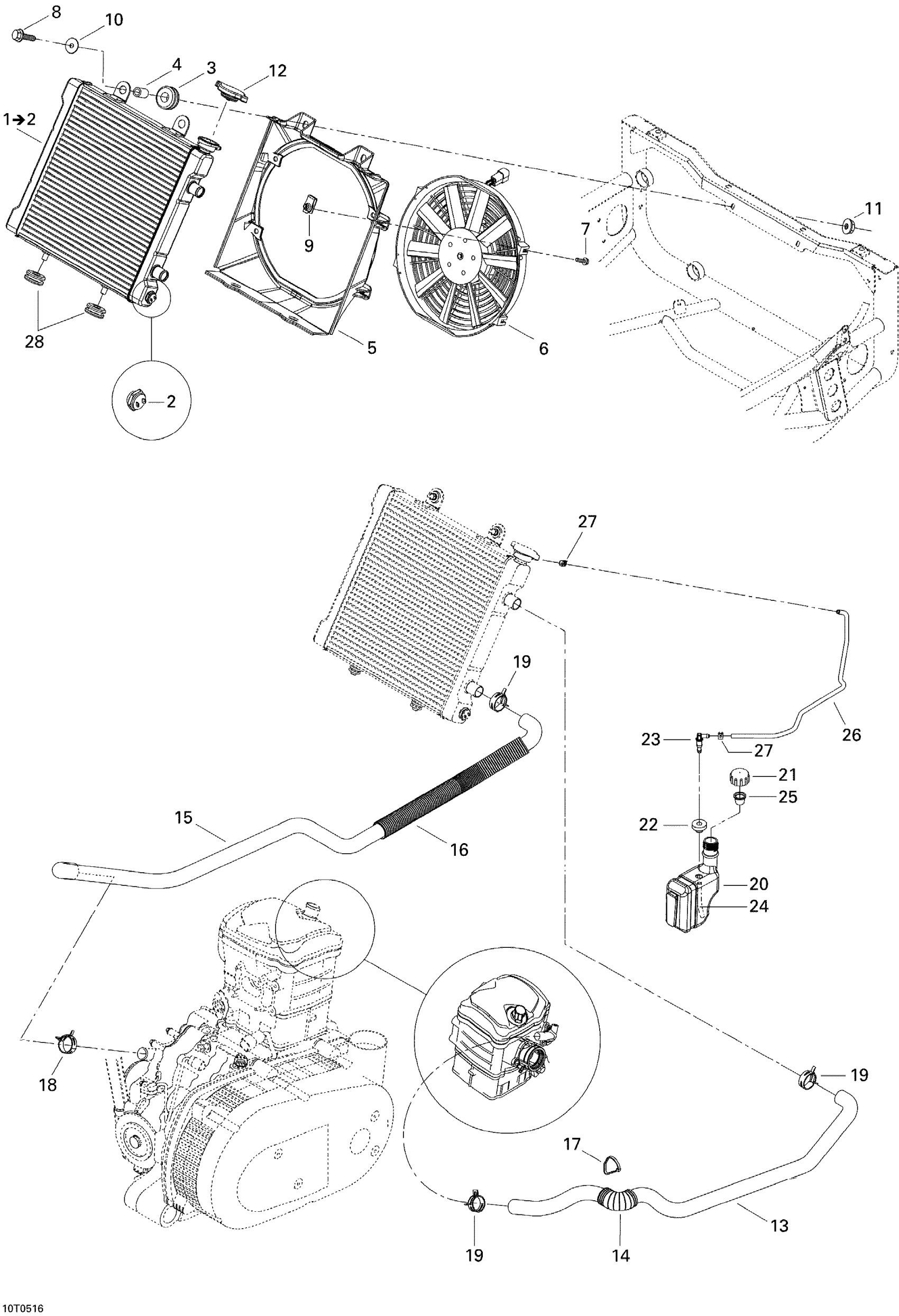

Can-Am Traxter CVT (500, 650, 650 XT), 2005 Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

709200109

Unavailable

2

Temperature Sensor

715900095

$64.90

3

Grommet

709000582

$4.25

4

Bushing

293900019

$7.21

5

OUTER SHROUD - Call your local BRP dealership

709200111

Unavailable

6

FAN ASS'Y - Call your local BRP dealership | Includes 6 to 8

709200112

Unavailable

7

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

8

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

9

Panel Nut M6 X 1.0

250100198

$1.73

10

Flat Washer

250200082

$0.35

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Radiator Pressure Cap

709200207

$18.82

13

RADIATOR INLET HOSE - Call your local BRP dealership

709200047

Unavailable

14

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

15

RADIATOR OUT HOSE - Call your local BRP dealership

709200048

Unavailable

16

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

17

Tie-Rap 180 mm

414115200

$0.09

18

Norma Spring Clamp

293650108

$3.88

19

Norma Spring Clamp

293650109

$3.88

20

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

21

TANK CAP - Call your local BRP dealership

709200009

Unavailable

22

Grommet

709200285

$7.09

23

Elbow Male Connector

414580600

$3.50

24

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

25

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

26

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

27

Spring Clamp

414554800

$0.81

28

Grommet

705003932

$2.89
