10- Homologation Kit For Europe

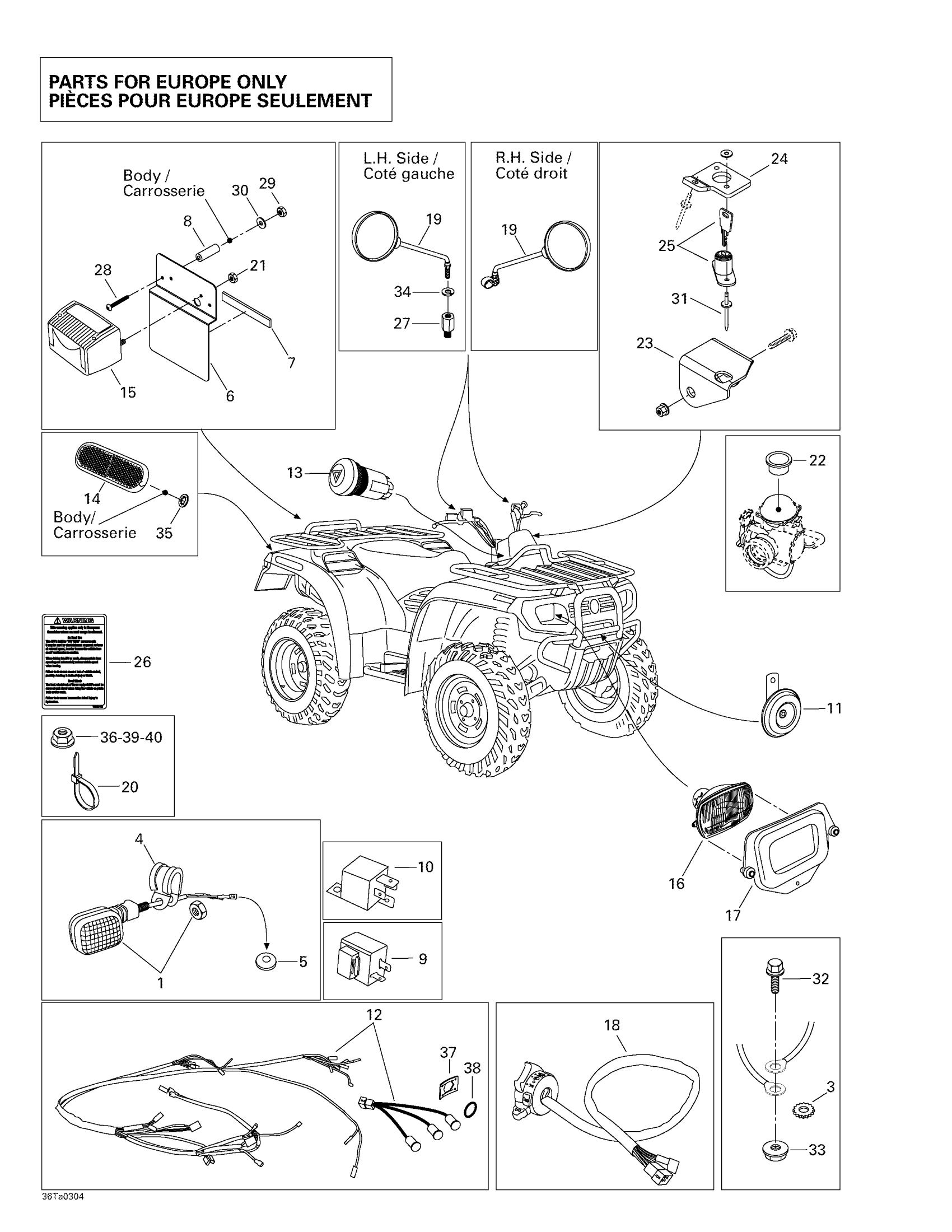

Can-Am Traxter Autoshift XT, 2003 10- Homologation Kit For Europe Diagram
#
1
Flashing Light
710000360
Unavailable
Flashing Light
710000361
Unavailable
2
Female Terminal (not shown)
710000385
Unavailable
3
Lock Washer Serrated M6
250200041
Unavailable
4
Collar
710000362
Unavailable
5
Grommet
414036300
Unavailable
6
Tail light support
705000658
Unavailable
7
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
8
Spacer
705000659
Unavailable
9
Flasher Unit
710000363
Unavailable
10
RELAY 12 V. - Call your local BRP dealership
710000364
Unavailable
11
Horn
710000365
Unavailable
12
Harness
710000366
Unavailable
13
EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe
710000367
Unavailable
14
Reflector
705000660
Unavailable
15
Tail Light
710000368
Unavailable
16
FRONT LIGHT - Call your local BRP dealership
710000369
Unavailable
17
LAMP SUPPORT - Call your local BRP dealership
705000283
Unavailable
18
LIGHT/HORN SWITCH - Call your local BRP dealership
710000370
Unavailable
19
RH Mirror | Europe
709400407
Unavailable
20
Tie-Rap 180 mm
414115200
Unavailable
21
Hex. Flange Elastic Nut M5
233251414
Unavailable
22
Power reductor
710000371
Unavailable
23
Bracket
707000286
Unavailable
24
Locking plate
707000287
Unavailable
25
Locking device (with key)
707000288
Unavailable
26
WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version
704901444
Unavailable
27
MIRROR SUPPORT - Call your local BRP dealership | Europe
705000673
Unavailable
28
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
208656091
Unavailable
29
Hex. Flange Elastic Nut M5
233251414
Unavailable
30
Flat Washer M5
234051410
Unavailable
31
Pop Rivet 3/16"
390402300
Unavailable
32
Hex. Flange Screw M6 X 20
207662044
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership
234180411
Unavailable
35
Push Nut
250100034
Unavailable
36
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
37
Push-nut
250100043
Unavailable
38
O-ring
293300097
Unavailable
39
Hex. Flange Elastic Nut M10
233201414
Unavailable
40
Hex. Flange Elastic Nut M8
233281414
Unavailable
