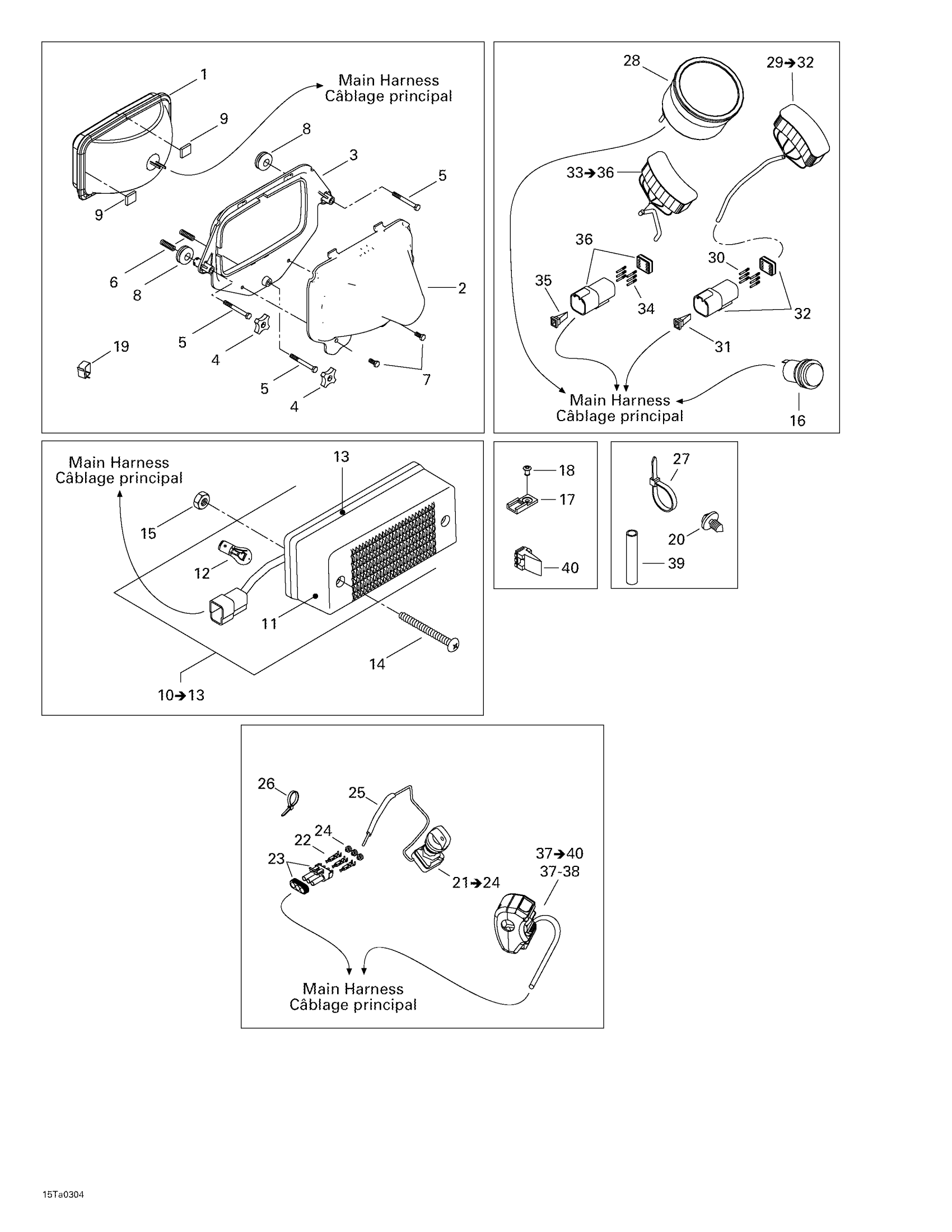

Can-Am Traxter Autoshift XT, 2003 10- Electrical Accessories Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

2

Protector

705000023

Unavailable

3

Head Lamp Support

705000474

Unavailable

4

Handle

572106600

Unavailable

5

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

6

Spring

517168600

Unavailable

7

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

8

Grommet

709000582

Unavailable

9

Rubber Pad

293830088

Unavailable

10

Tail Light Housing

710000102

Unavailable

11

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

12

Bulb

520000758

Unavailable

13

GASKET - Call your local BRP dealership

710000129

Unavailable

14

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

Unavailable

16

Outlet Power Kit, 12 Volts

861507200

Unavailable

17

CLIP - Call your local BRP dealership

409014200

Unavailable

18

Pop Rivet 3/16"

390402400

Unavailable

19

Clip

414227300

Unavailable

20

Mount Dart

293730040

Unavailable

21

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

21

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

21

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

22

Female Terminal

278000223

Unavailable

23

Male Housing, 3 Circuits

278000273

Unavailable

24

Wire Seal

278000218

Unavailable

25

Protector Tube

710000171

Unavailable

26

Tie Wrap 142 mm

293750002

Unavailable

27

Tie Wrap 142 mm

293750002

Unavailable

27

Tie Wrap 368 mm

293750008

Unavailable

27

Tie-Rap 180 mm

414115200

Unavailable

28

Speedometer

710000328

Unavailable

29

RH Warning Lamp | Includes 29 - 32.

710000089

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

31

Male Lock, 6 Circuits

409014600

Unavailable

32

Male Terminal Housing, 6 Circuits

409015200

Unavailable

33

LH Warning Lamp

710000008

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

35

Male Lock, 6 Circuits

409014600

Unavailable

36

Male Terminal Housing, 6 Circuits

409015200

Unavailable

37

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

38

BACK COVER - Call your local BRP dealership

710000173

Unavailable

39

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

40

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable
