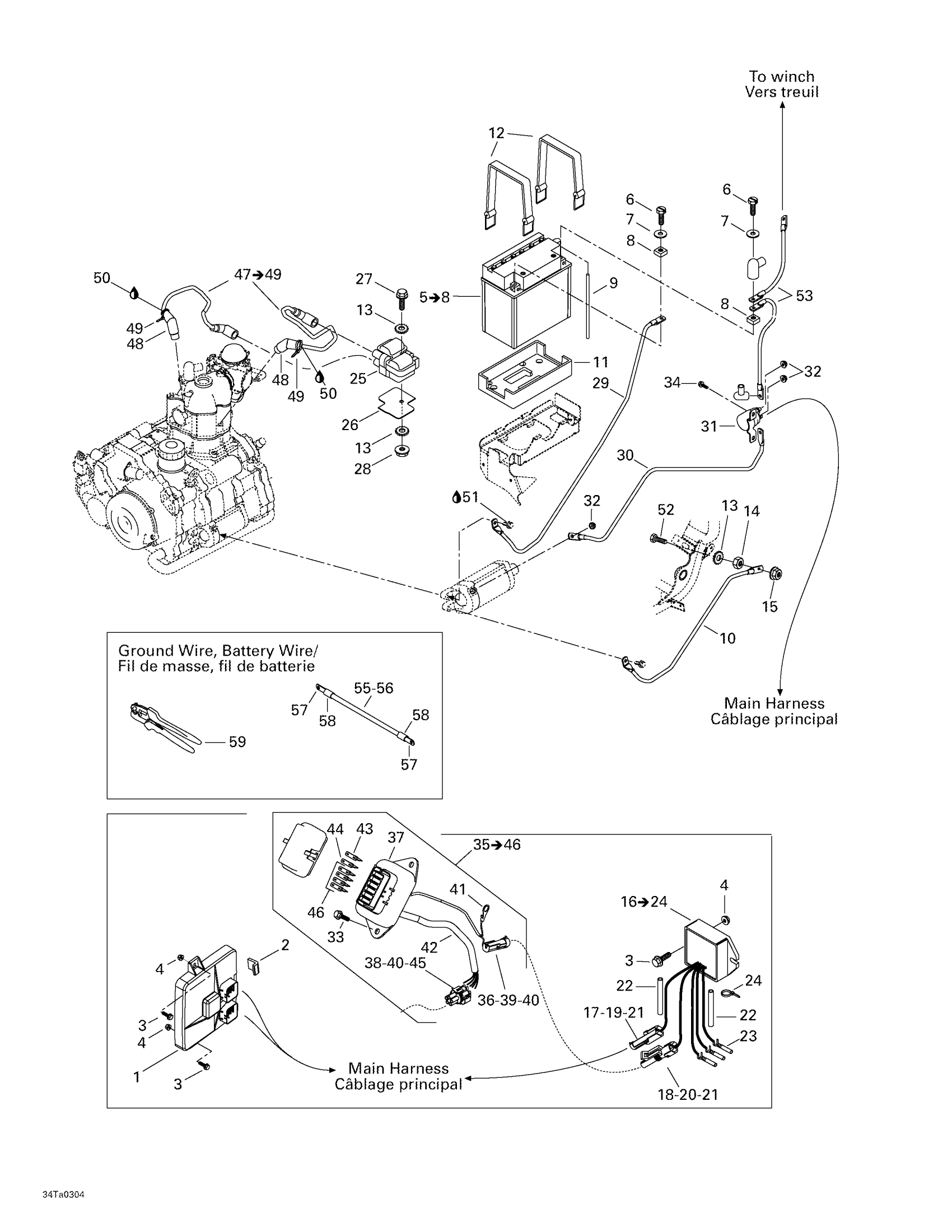

Can-Am Traxter Autoshift XT, 2003 Battery And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership

710000315

Unavailable

2

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Battery 19A | Includes 5 to 8

278001756

$162.45

6

Hex. Screw M6 X 16

207161644

$0.61

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Nut M6

232061414

$0.44

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

10

Battery Ground Cable

710000022

Unavailable

11

Lower Battery Pad

278001746

Unavailable

12

Retainer Strap

293850097

$9.26

13

External Serrated Lock Washer 6 mm

234461608

$0.92

14

Hex. Nut M6

232061414

$0.44

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26

710000100

Unavailable

17

Male Terminal | XT Models

278000222

$2.55

18

Female Terminal

278000223

$2.55

19

Female Housing, 1 Circuit

278000161

$8.98

20

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

21

Wire Seal

278000218

$3.48

22

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Ignition Coil

278001546

$129.32

26

Insulator Pad

710000073

$11.06

27

Hex. Flange Screw M6 X 50

207665044

$3.38

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

Engine Ground Cable

710000211

Unavailable

30

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

31

Starter Relay

515176011

$51.97

32

Hex. Elastic Stop Nut M6

232561600

$0.92

33

Hex. Flange Screw M6 X 16

210261650

$1.22

34

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

35

Fuse Hoder | Includes 28 - 40.

710000212

Unavailable

36

Male Terminal

409004300

$5.46

37

Fuse Box

710000213

Unavailable

38

Female Terminal

409007300

$0.36

39

Female Housing, 1 Circuit

278000161

$8.98

40

Wire Seal

278000218

$3.48

Wire Seal

710000048

$5.10

41

Open Barrel Terminal

278001392

$4.12

42

Tubing 6 Mm 3000Mm Long

219704425

$13.14

43

Fuse, 30 Amperes

410917200

$3.22

44

Fuse, 20 Amperes

409003900

$3.22

45

Female Housing, 5 Circuit

710000106

Unavailable

46

Fuse, 15 Amperes

278000343

$2.72

47

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$64.58

48

Spark Plug Connector

420265248

$31.34

49

Tie Wrap 94 mm | 4X4

293750001

$0.83

50

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

51

Loctite 243, 10 ml

293800060

$20.77

52

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

53

Battery Cable | 7423/7424 (XT-Yellow/Jaune).

710000135

Unavailable
