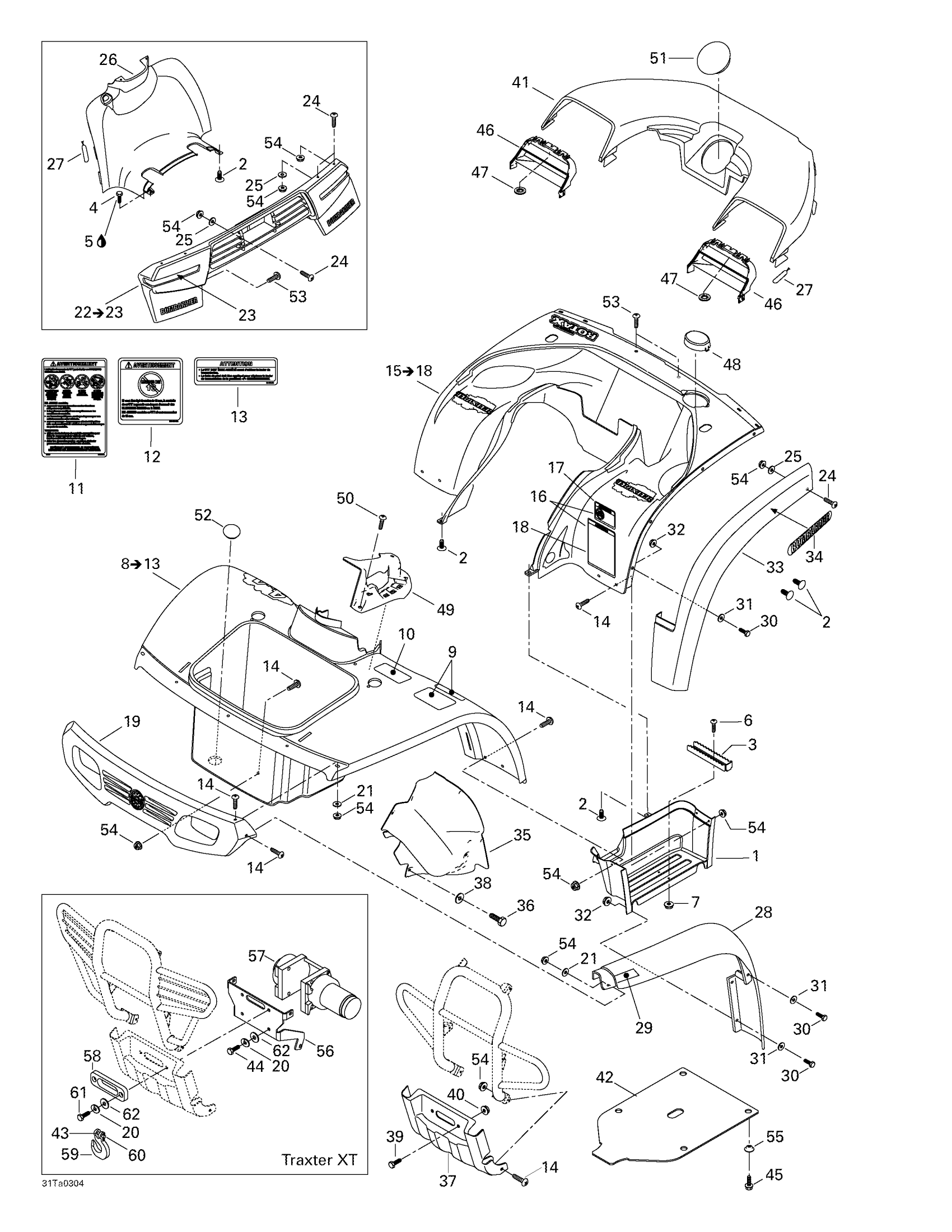

Can-Am Traxter Autoshift XT, 2003 09- Body And Accessories Diagram
#
1
Footwell R.H
705000592
Unavailable
Footwell L.H
705000593
Unavailable
2
Black, Dart
293730011
Unavailable
3
Footrest, Black
705000631
Unavailable
4
Hex. Flange Screw M6 X 12
207661244
Unavailable
5
Loctite 243, 10 ml
293800060
Unavailable
6
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
7
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
8
Front Fender Kit (Yellow) | (XT Yellow 7468 - 7472) Traxter XT.
703500140
Unavailable
Front Fender, Yellow | Includes 8 - 11.
703500137
Unavailable
Front Fender, Red | P-STD.
703500227
Unavailable
Front Fender Kit (Green) | (XT Green 7467 - 7481) Traxter XT.
703500142
Unavailable
Front Fender Kit (Green) | P-STD.
703500241
Unavailable
9
Warning Label | Includes 9 - 10.
704900034
Unavailable
10
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
11
Warning Decal, Death And Injuries
704900002
Unavailable
12
Warning Decal, Under 16 Years Old | French Version
704900012
Unavailable
13
Caution Decal, Transmission Selector | French version
704900008
Unavailable
14
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
15
Rear Fender, Red | Includes 15 - 18. P-STD.
703500217
Unavailable
Rear Fender Kit (Green) (English)
703500114
Unavailable
Rear Fender Kit (Green) (English) | (XT Yellow 7467 - 7481) Traxter XT.
703500141
Unavailable
Rear Fender, Yellow
703500112
Unavailable
Rear Fender Kit (Yellow) (English) | (XT Yellow 7468 - 7472) Traxter XT.
703500139
Unavailable
16
Warning Label Ass'y | (Rear Left Fender)
704900116
Unavailable
Warning Label (Passenger) (English) | (Rear Left Fender) 7423/7424 (XT-Yellow/Jaune).
704900119
Unavailable
17
Warning Decal, Passenger, French | French Version
704900006
Unavailable
18
Warning Label, Tire Pressure | (Tire Pressure) (French)
704900120
Unavailable
Warning Label | (Tire Pressure) (French) P-XT.
704900121
Unavailable
19
Front fascia | CAMO
705000594
Unavailable
20
Lock Washer 8 mm
234181401
Unavailable
21
Flat Washer
224060201
Unavailable
22
Rear fascia | CAMO
703500208
Unavailable
23
RH Rear Reflector
704900085
Unavailable
LH Rear Reflector
704900086
Unavailable
24
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
25
Flat Washer
224060201
Unavailable
26
Tank Cover
705000596
Unavailable
27
Windshield Latch
570023800
Unavailable
28
LH Front Mudguard
705000597
Unavailable
RH Front Mudguard
705000598
Unavailable
29
LH FRONT REFLECTOR - Call your local BRP dealership
705000083
Unavailable
RH FRONT REFLECTOR - Call your local BRP dealership
705000026
Unavailable
30
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
31
Flat Washer
224060201
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
LH rear Mudguard | CAMO
705000599
Unavailable
RH rear mudguard | CAMO
705000600
Unavailable
34
Bombardier label | 7400/7401. 7413/7414.
704900026
Unavailable
35
LH TANK PROTECTOR - Call your local BRP dealership
705000133
Unavailable
RH TANK PROTECTOR - Call your local BRP dealership
705000134
Unavailable
36
Hex. Flange Screw M6 X 16
210261650
Unavailable
37
Protector plate | CAMO
705000601
Unavailable
38
Flat Washer
224061201
Unavailable
39
Hex. Flange Screw M10 X 25
207602544
Unavailable
40
Hex. Flange Elastic Nut M10
233201414
Unavailable
41
Fender Cover, Viper Red | Red
705000576
Unavailable
Fender cover | 7407/7408.
705000193
Unavailable
Fender Cover, Yellow | Yellow
705000179
Unavailable
42
Skid Plate
705200535
Unavailable
43
Clevis Pin
250400021
Unavailable
44
Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT
250000042
Unavailable
45
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
46
LH Grill, Black
705000180
Unavailable
RH Grill, Black
705000181
Unavailable
47
PUSH NUT - Call your local BRP dealership
250100000
Unavailable
48
COVER, BLACK - Call your local BRP dealership
705000132
Unavailable
49
Lever Indicator
705000081
Unavailable
50
Tuflock Phillips Plastic Screw
414745900
Unavailable
51
CAP - Call your local BRP dealership
705000207
Unavailable
52
Rubber Cover
570041600
Unavailable
53
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
54
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
55
CUP - Call your local BRP dealership
705200533
Unavailable
56
Mouting plate | 7423/7424 (XT-Yellow/Jaune).
705000184
Unavailable
57
WINCH - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).
705000185
Unavailable
58
CABLE GUIDE - Call your local BRP dealership
705000194
Unavailable
59
Winch Hook Kit
705014949
Unavailable
60
Cotter Pin
250400022
Unavailable
61
SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership
250000041
Unavailable
62
Flat Washer 8 mm
234081410
Unavailable
