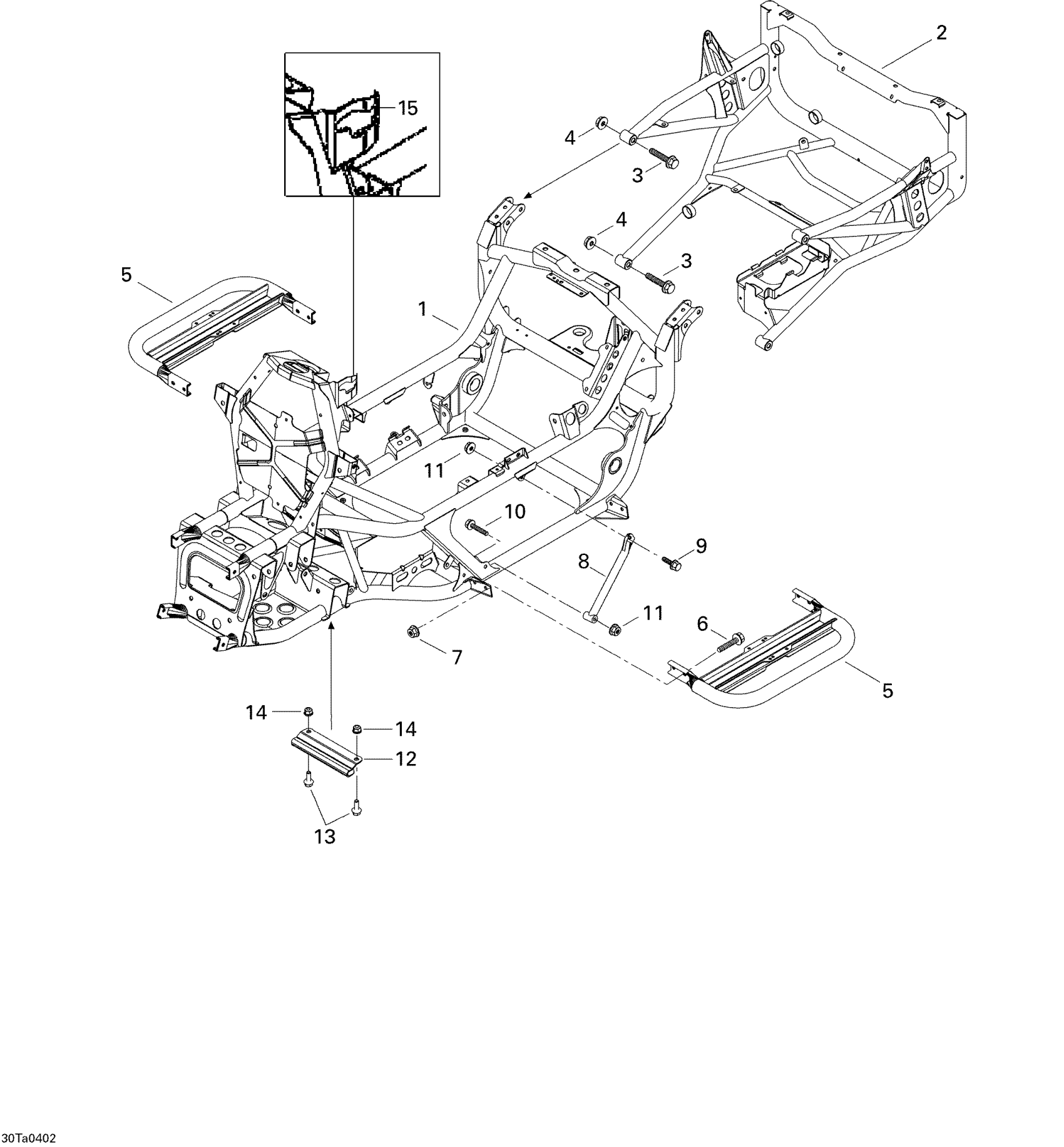

Can-Am Traxter Auto Std & XT, 2004 09- Frame Diagram

#

Description
Price

1

Frame, Black

705200723

Unavailable

2

Frame Extension, Black

705200546

Unavailable

3

Hex. Flange Screw M10 X 55

207605544

Unavailable

4

Hex. Flange Elastic Nut M10

233201414

Unavailable

5

Footrest, Black

705000610

Unavailable

6

Hex. Flange Screw M8 X 20

207682044

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Removable Brace, Black

705200143

Unavailable

9

Hex. Flange Screw M8 X 25

207682544

Unavailable

10

Hex. Flange Screw M8 X 50

207685044

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

12

Bracket, Black

705200575

Unavailable

13

Hex. Flange Screw M6 X 16

207661644

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

Shift Patern

705200351

Unavailable
