Partiron

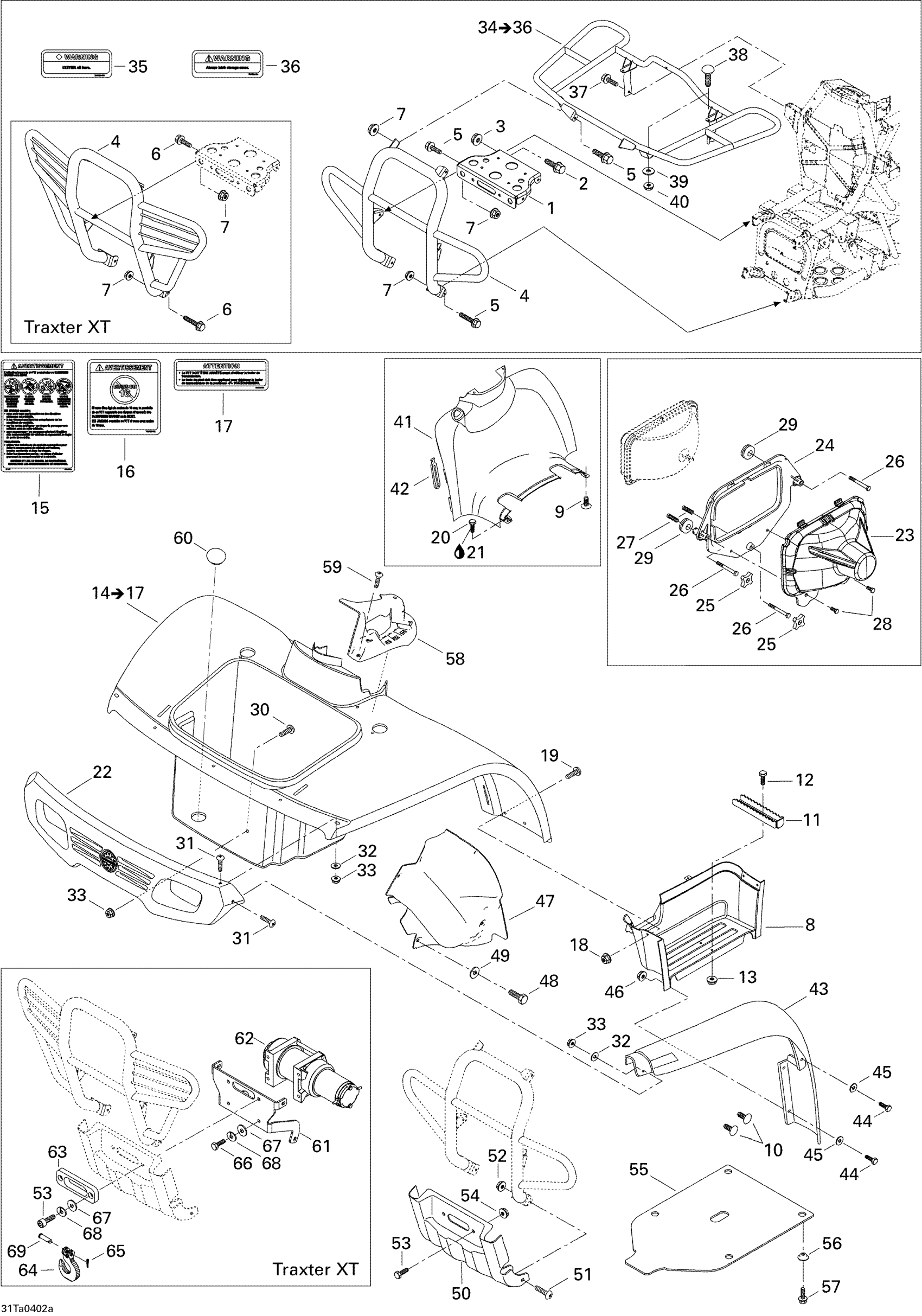

Can-Am Traxter Auto Std & XT, 2004 Body And Accessories, Front View Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$0.92

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 20

207682044

$0.92

6

Hex. Flange Screw M8 X 25

207682544

$0.90

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

RH Footboard, Slate Gray

705000822

Unavailable

LH Footboard, Slate Gray

705000823

Unavailable

9

Black, Dart

293730011

$0.79

10

Black, Dart

293730011

$0.79

11

Footrest, Black

705001083

Unavailable

12

Hex. Flange Screw M6 X 25

207662554

$1.43

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Front Fender, Yellow | Includes 8 - 11.

703500137

Unavailable

Front Fender, Red | P-STD.

703500227

Unavailable

Front Fender, Green | Includes 1 - 8. (Laurentian green)

703500315

Unavailable

15

Warning Decal, Death And Injuries | English version

704900001

Unavailable

Warning Decal, Death And Injuries

704900002

Unavailable

16

Warning Decal, Under 16 Years Old

704900011

Unavailable

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

17

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

Caution Decal, Transmission Selector | French version

704900008

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

20

Hex. Flange Screw M6 X 12

207661244

$1.70

21

Loctite 243, 10 ml

293800060

$20.77

22

Front Fascia, Slate Gray

705000708

Unavailable

23

Light Protector

705001048

Unavailable

24

Head Lamp Support

705000474

Unavailable

25

Handle

572106600

$9.03

26

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

27

Spring

517168600

$6.70

28

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

29

Grommet

709000582

$4.25

30

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

31

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

32

Flat Washer

224060201

$1.12

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Front Luggage Rack, Black

703500264

Unavailable

35

Warning Label, Front Load | Includes 8 - 9.

704900037

Unavailable

36

Warning Label, Tray Cover

704900038

Unavailable

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

38

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

39

Flat Washer

224060201

$1.12

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

41

Tank Cover, Slate Gray

705000710

Unavailable

42

Windshield Latch

570023800

$3.58

43

RH Front Mudguard

705000828

Unavailable

LH Front Mudguard

705000827

Unavailable

44

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

45

Flat Washer

224060201

$1.12

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

47

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

48

Hex. Flange Screw M6 X 16

210261650

$1.22

49

Flat Washer

224061201

$1.11

50

PROTECTOR PLATE, SLATE GRAY - Call your local BRP dealership

705000713

Unavailable

51

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

53

Hex. Flange Screw M10 X 25

207602544

$1.33

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

54

Hex. Flange Elastic Nut M10

233201414

$1.26

55

Skid Plate

705200535

Unavailable

56

CUP - Call your local BRP dealership

705200533

Unavailable

57

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

58

Lever Indicator

705000081

Unavailable

59

Tuflock Phillips Plastic Screw

414745900

$1.30

60

Rubber Cover

570041600

Unavailable

61

Mounting Plate | Traxter 5 Speed XT

705000994

Unavailable

62

WINCH - Call your local BRP dealership

705000839

Unavailable

63

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

64

Winch Hook Kit

705014949

$23.10

65

Cotter Pin

250400022

$8.40

66

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

67

Flat Washer 8 mm

234081410

$0.69

68

Lock Washer 8 mm

234181401

$0.87

69

Clevis Pin

250400021

$11.48
