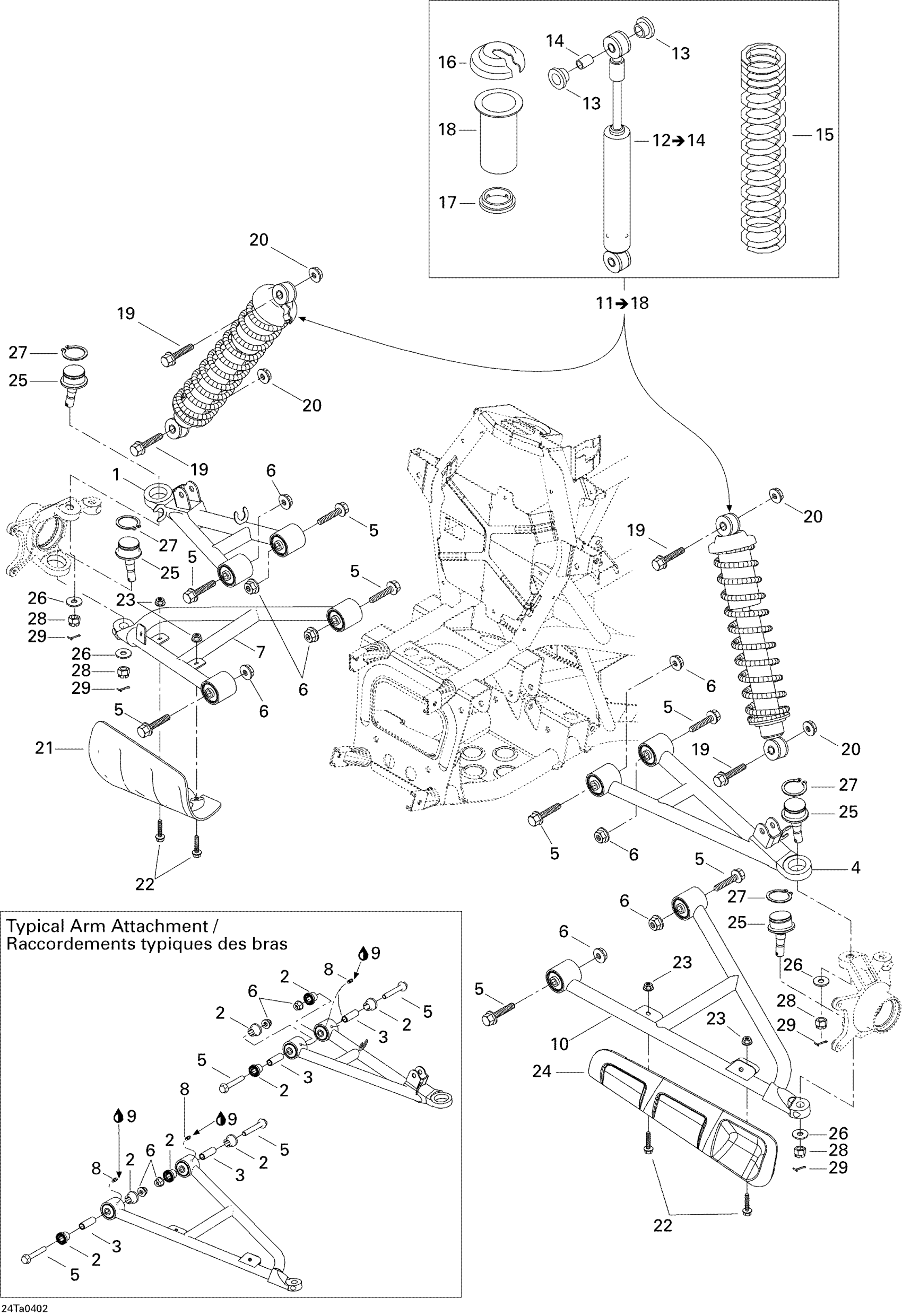

Can-Am Traxter Auto Std & XT, 2004 07- Front Suspension Diagram

#

Description
Price

1

RH UPPER ARM, BLACK - Call your local BRP dealership

706200318

Unavailable

2

Bushing

706200181

Unavailable

3

Sleeve

706201587

Unavailable

4

LH Upper Arm, Black

706200320

Unavailable

5

Hex. Flange Screw M10 X 70

207607046

Unavailable

6

Hex. Flange Elastic Nut M10

233201436

Unavailable

7

RH LOWER ARM, BLACK - Call your local BRP dealership

706200360

Unavailable

8

Grease Fitting

408200700

Unavailable

9

Synthetic Grease, 400 G

293550010

Unavailable

10

LH LOWER ARM, BLACK - Call your local BRP dealership

706200365

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

FRONT SHOCK - Call your local BRP dealership | Includes 12 - 14.

706200300

Unavailable

13

CUSHION - Call your local BRP dealership

706200185

Unavailable

14

BUSHING - Call your local BRP dealership

706200186

Unavailable

15

Yellow Front Spring

706200301

Unavailable

16

Spring Stopper

706200881

Unavailable

17

Spring Seat

706000197

Unavailable

18

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

19

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

20

Hex. Flange Elastic Nut M10

233201414

Unavailable

21

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

22

Hex. Flange Screw M6 X 16

207661644

Unavailable

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

24

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

25

Ball Joint

706200653

Unavailable

26

Hardened Washer

706200281

Unavailable

27

Circlip 32 mm

293370009

Unavailable

28

Hex. Castellated Nut M12

232221414

Unavailable

29

Cotter Pin

211400017

Unavailable
