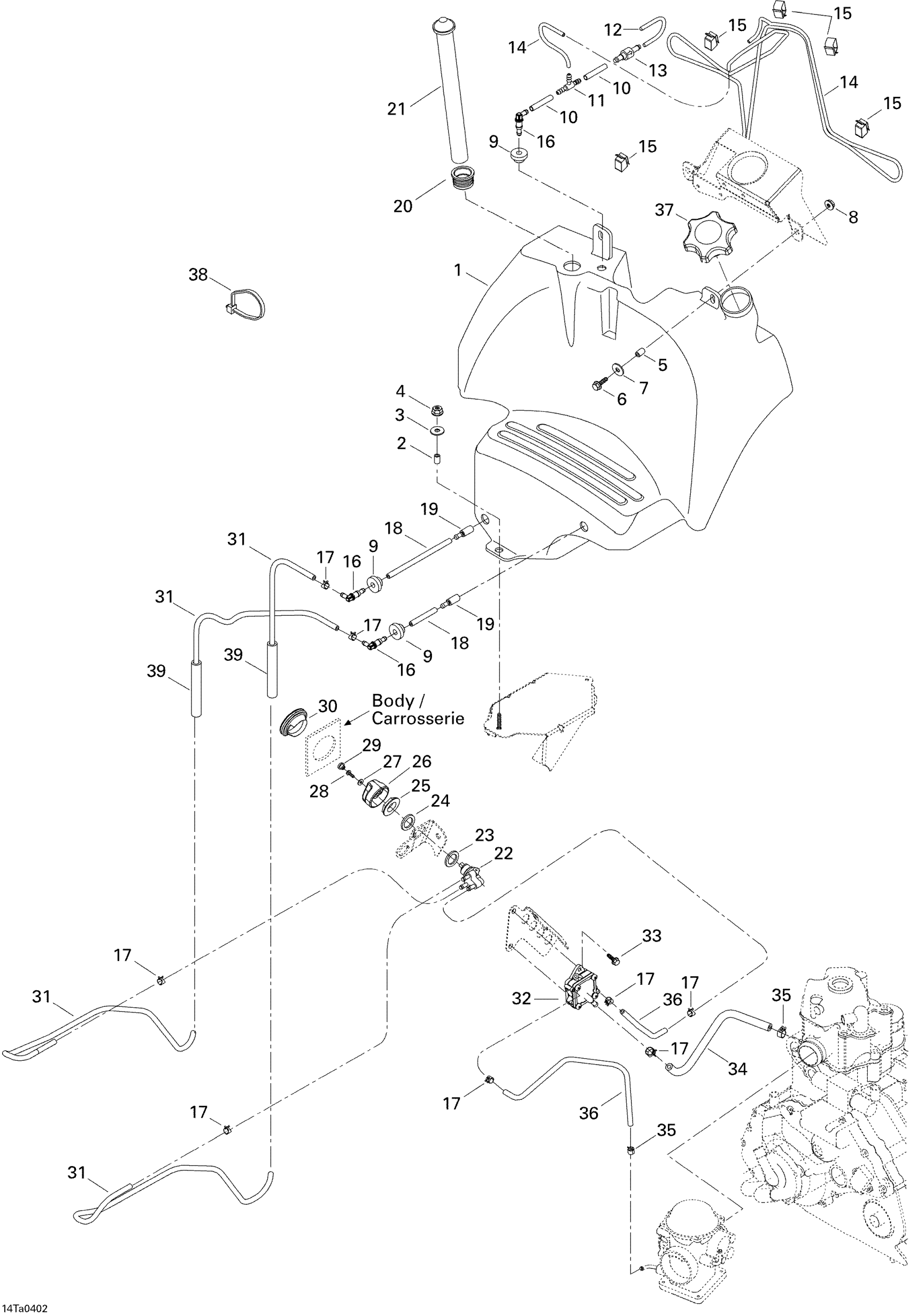

Can-Am Traxter Auto Std & XT, 2004 02- Fuel Tank Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000025

Unavailable

2

Bushing

293900028

Unavailable

3

Flat Washer 8 mm

234082410

Unavailable

4

Hex. Flange Elastic Nut M8

233281414

Unavailable

5

Bushing | DS 650 X

293900104

Unavailable

6

Hex. Flange Screw M6 X 25

207662544

Unavailable

7

Flat Washer

224061201

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Grommet

570045500

Unavailable

10

Polyurethane Hose 10000Mm Long

219704410

Unavailable

11

T-fitting

414222500

Unavailable

12

VENT HOSE - Call your local BRP dealership

709000029

Unavailable

13

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

14

VENT HOSE - Call your local BRP dealership

709000031

Unavailable

15

Clip

414227300

Unavailable

16

Elbow Male Connector

414580600

Unavailable

17

Oetiker Clamp

293650042

Unavailable

18

Polyurethane Hose 10000Mm Long

219704410

Unavailable

19

Fuel Filter

414865700

Unavailable

20

Grommet

293720058

Unavailable

21

FUEL GAUGE - Call your local BRP dealership

709000078

Unavailable

22

Fuel Valve

275500098

Unavailable

23

GASKET - Call your local BRP dealership

293250004

Unavailable

24

Washer

250200015

Unavailable

25

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

26

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

27

Flat Washer 4 mm

234040600

Unavailable

28

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

29

Black, Cap

275500241

Unavailable

30

Fuel Valve Grommet

709000005

Unavailable

31

Hose

219704549

Unavailable

32

FUEL PUMP - Call your local BRP dealership

707200000

Unavailable

33

Hex. Flange Screw M6 X 10

210261040

Unavailable

34

HOSE - Call your local BRP dealership

709000024

Unavailable

35

Spring Clamp

414415200

Unavailable

36

Hose

219704549

Unavailable

37

Fuel Tank Cap

513033025

Unavailable

38

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 180 mm

414115200

Unavailable

Tie Wrap 368 mm

293750008

Unavailable

39

Was 409901800 Tubing (13 mm)

219704400

Unavailable
