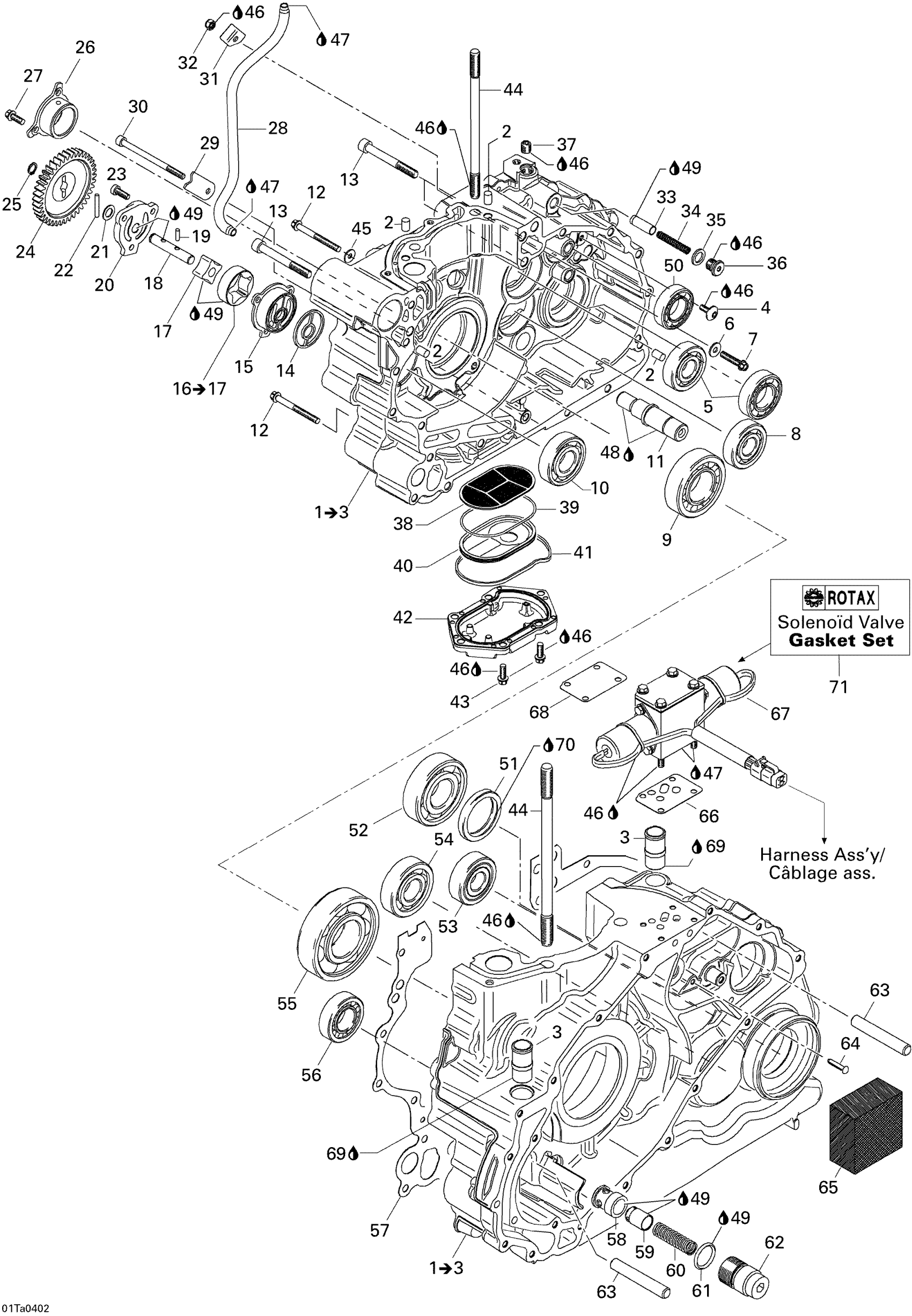

Can-Am Traxter Auto Std & XT, 2004 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass‘Y | Includes 1 to 2

420295881

Unavailable

2

Center Pin 8 X 12

420632010

Unavailable

3

TUBE - Call your local BRP dealership

420224260

Unavailable

4

SCREW M6 X 13 - Call your local BRP dealership

420241531

Unavailable

5

Ball Bearing 6205

420232764

Unavailable

6

Washer

420627400

Unavailable

7

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

8

Ball Bearing 6304E

420932095

Unavailable

9

ROLLER BEARING - Call your local BRP dealership

420232490

Unavailable

10

BALL BEARING 63/22 - Call your local BRP dealership

420632200

Unavailable

11

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420220570

Unavailable

12

Hex. Flange Screw M6 X 65

420640351

Unavailable

13

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420841991

Unavailable

14

RUBBER RING - Call your local BRP dealership

420650960

Unavailable

15

Ring Housing

420610140

Unavailable

16

OIL PUMP ROTOR ASS'Y - Call your local BRP dealership | Includes 16 to 17

420956275

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Oil Pump Shaft

420220592

Unavailable

19

Needle Pin

420232731

Unavailable

20

OIL PUMP COVER - Call your local BRP dealership

420211852

Unavailable

21

Thrust Washer

420827590

Unavailable

22

NEEDLE PIN - Call your local BRP dealership

420232971

Unavailable

23

SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership

420240404

Unavailable

24

Oil Pump Gear, 40 Teeth

420635030

Unavailable

25

Snap Ring

420245330

Unavailable

26

Ring Housing

420610130

Unavailable

27

Hex. Flange Screw M6 X 16

420241751

Unavailable

28

Oil Pipe

420224622

Unavailable

29

Holding Strip

420627437

Unavailable

30

Socket Head Screw M6 X 90

420241481

Unavailable

31

Holding Strip

420627432

Unavailable

32

Elastic Stop Nut M6

232561414

Unavailable

33

PISTON - Call your local BRP dealership

420256590

Unavailable

34

COMPRESSION SPRING - Call your local BRP dealership

420238020

Unavailable

35

Aluminum Sealing Ring

420250016

Unavailable

36

Plug Screw M12 x 1,5

420241701

Unavailable

37

PLUG SCREW M12 X 1.5 - Call your local BRP dealership

420840651

Unavailable

38

OIL SIEVE - Call your local BRP dealership

420256572

Unavailable

39

O-RING - Call your local BRP dealership

420931385

Unavailable

40

OIL COLLECTOR - Call your local BRP dealership

420256652

Unavailable

41

RUBBER RING - Call your local BRP dealership

420650950

Unavailable

42

Oil Sieve Cover

420211941

Unavailable

43

HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership

420241861

Unavailable

44

STUD M10 X 190 - Call your local BRP dealership

420241670

Unavailable

45

Oil Seal

420230150

Unavailable

46

Loctite 243, 10 ml

293800060

Unavailable

47

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

48

Molykote G-N, 50 g

420297433

Unavailable

49

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

50

Bearing_Ball - Call your local BRP dealership

420932650

Unavailable

51

OIL SEAL - Call your local BRP dealership

420650700

Unavailable

52

Ball Bearing

420932822

Unavailable

53

Ball Bearing

420932816

Unavailable

54

Ball Bearing 6304E

290932095

Unavailable

55

BALL BEARING - Call your local BRP dealership

420432120

Unavailable

56

ROLLER BEARING - Call your local BRP dealership

420232280

Unavailable

57

GASKET, CRANKCASE - Call your local BRP dealership

420650422

Unavailable

58

SEAT VALVE SLEEVE - Call your local BRP dealership

420256602

Unavailable

59

Piston Valve

420256638

Unavailable

60

COMPRESSION SPRING - Call your local BRP dealership

420938785

Unavailable

61

O-Ring

420250050

Unavailable

62

Plug Screw M24 X 1.5

420640790

Unavailable

63

Needle Pin

420229475

Unavailable

64

Groove Pin M4 X 20

420229170

Unavailable

65

OIL SEPARATING FOAM - Call your local BRP dealership

420256720

Unavailable

66

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

Unavailable

67

Solenoïd Valve

420256540

Unavailable

68

Gasket

420650636

Unavailable

69

Sealant Loctite 648

219703000

Unavailable

70

Grease, Super Lube

293550030

Unavailable

71

SOLENOID VALVE GASKET SET - Call your local BRP dealership

420296375

Unavailable
