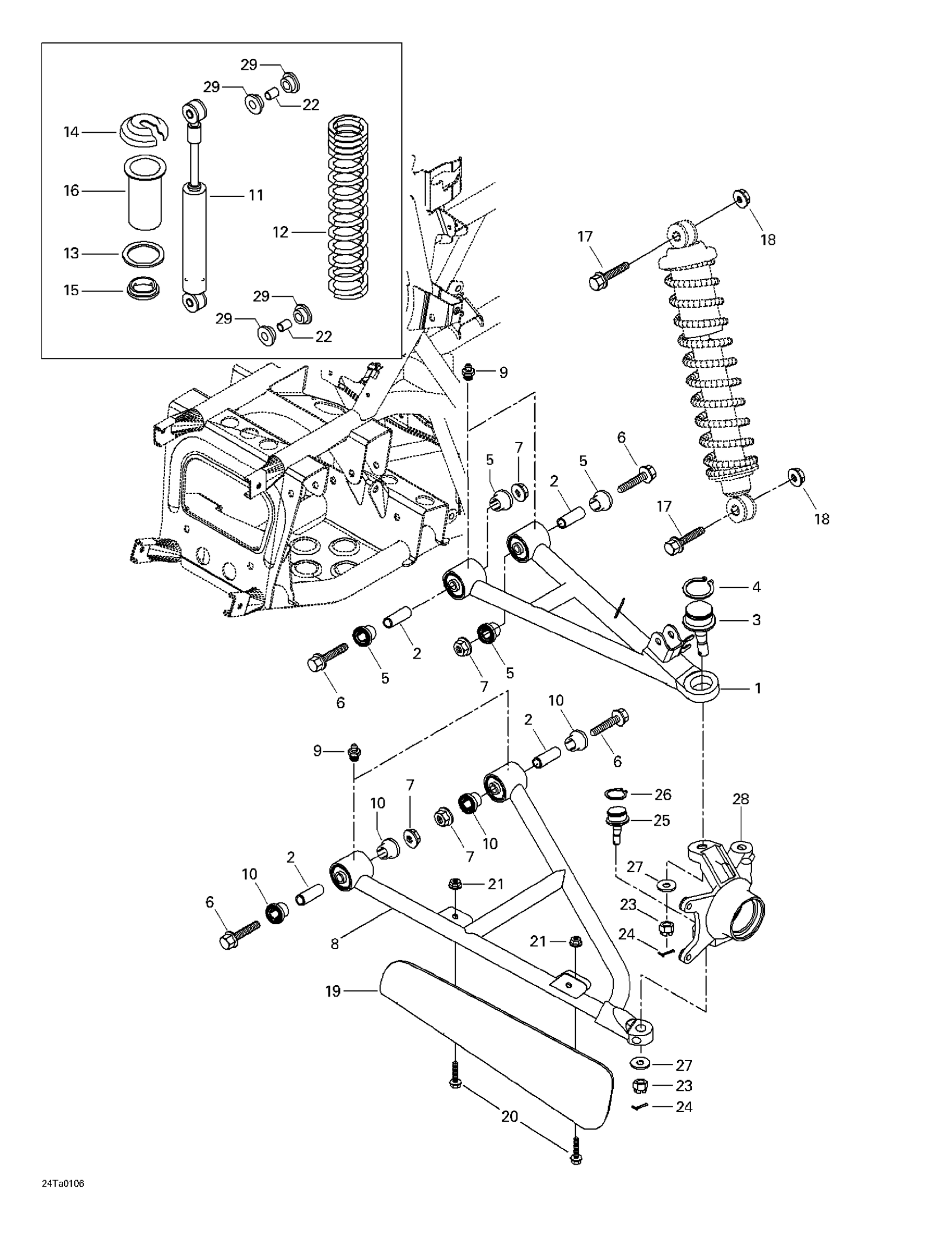

Can-Am Traxter, 7459/7460/7465/7466, 2001 Front Suspension Diagram

#

Description
Price

1

RH Upper Arm

706200152

Unavailable

RH UPPER ARM - Call your local BRP dealership

706200187

Unavailable

LH Upper Arm

706200155

Unavailable

LH upper arm

706200193

Unavailable

2

Sleeve

706201587

$3.36

3

Ball Joint

706200653

$40.27

4

Circlip 32 mm

293370009

$1.33

5

Bushing

706200181

$2.45

6

Hex. Flange Screw M10 X 70

207607046

$2.82

7

Hex. Flange Elastic Nut M10

233201436

$2.00

8

RH Lower Arm (7431 @ 7434)

706200159

Unavailable

RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200196

Unavailable

LH Lower Arm (7431 @ 7434)

706200161

Unavailable

LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200200

Unavailable

9

Grease Fitting

408200700

$3.21

10

Bushing

706200181

$2.45

11

Front Shock | Includes 10 - 12.

706200137

Unavailable

12

FRONT SPRING - Call your local BRP dealership

706200006

Unavailable

13

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

14

Spring Stopper

706200881

$11.82

15

Spring seat

706000007

Unavailable

16

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

17

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

18

Hex. Flange Elastic Nut M10

233201414

$1.45

19

Arm Protector R.H

706200007

Unavailable

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

Arm Protector L.H

706200009

Unavailable

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

20

Hex. Flange Screw M6 X 16

207661644

$0.70

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

22

BUSHING - Call your local BRP dealership

706200186

Unavailable

23

Hex. Castellated Nut M12

232221414

$3.00

24

Cotter Pin

211400017

$0.28

25

Ball Joint

706200653

$40.27

26

Circlip 32 mm

293370009

$1.33

27

Hardened Washer

503175400

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

29

CUSHION - Call your local BRP dealership

706200185

Unavailable
