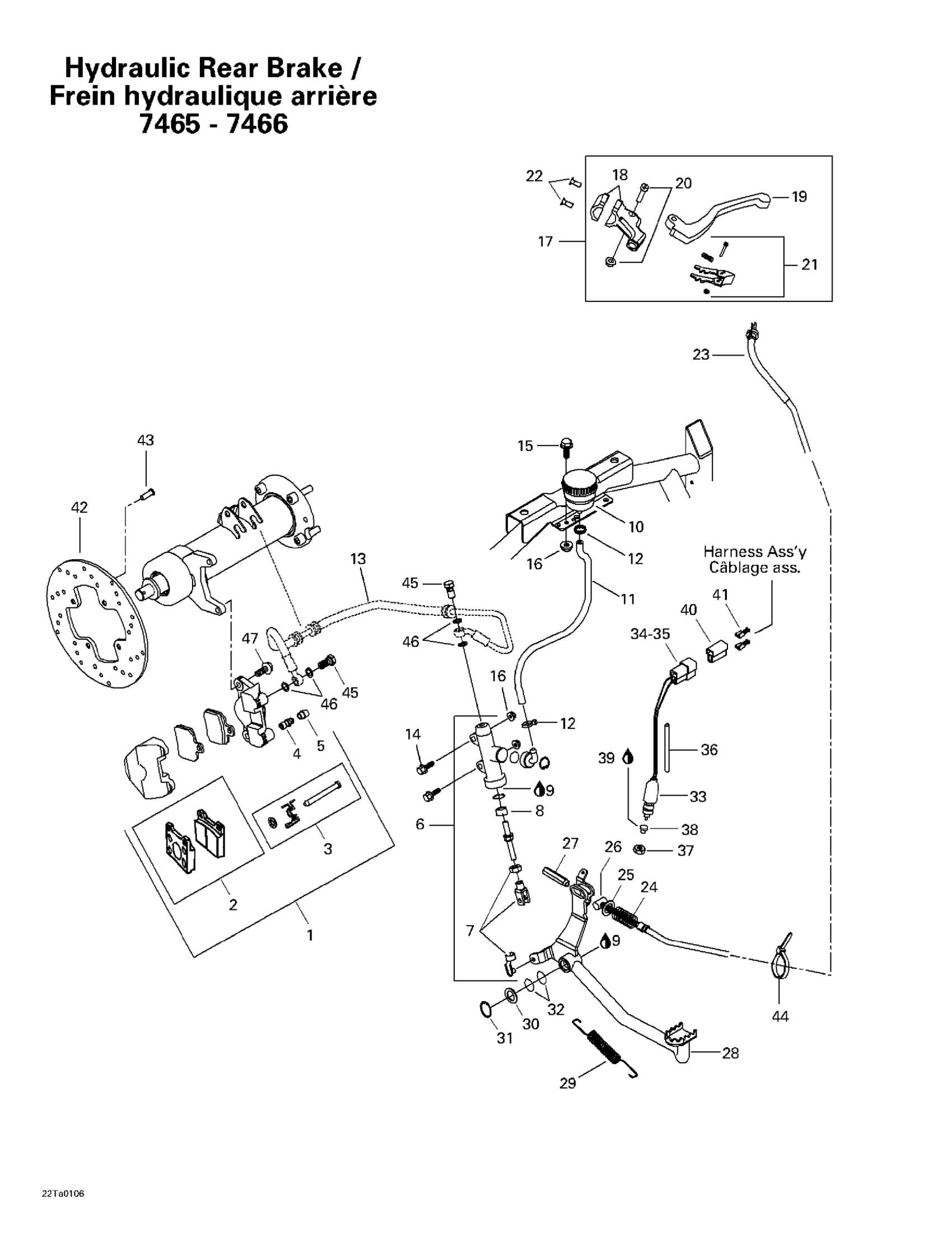

Can-Am Traxter, 7459/7460/7465/7466, 2001 06- Hydraulic Rear Brake (7465 - 7466) Diagram

#

Description
Price

1

RH Rear Caliper | Includes 16 - 17.

705600031

Unavailable

2

PAD_BRAKE KIT - Call your local BRP dealership

705600041

Unavailable

3

Retainer Kit

705600110

Unavailable

4

Bleeder Screw

705600111

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

Master Cylinder | Includes 18 - 0.

705600006

Unavailable

7

Pusher

705600021

Unavailable

8

Boot Bellow

705600075

Unavailable

9

Synthetic Grease, 400 G

293550010

Unavailable

10

OIL HOUSING - Call your local BRP dealership

705600009

Unavailable

11

Oil Housing Hose | 7415/7416. 7417/7418.

705600102

Unavailable

12

Oetiker Clamp

293650042

Unavailable

13

Rear Brake Hose

705600159

Unavailable

14

Hex. Flange Screw M6 X 25

207662544

Unavailable

15

Hex. Flange Screw M6 X 16

207661644

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Brake Handle Ass'y | Includes 46 - 50.

705600129

Unavailable

18

CLAMP KIT - Call your local BRP dealership

705600184

Unavailable

19

Lever

705600130

Unavailable

20

Pivot Kit

705600187

Unavailable

21

Lever Lock Kit

705600188

Unavailable

22

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

23

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

24

SPRING - Call your local BRP dealership

705600144

Unavailable

25

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable

26

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

27

NUT - Call your local BRP dealership

705600147

Unavailable

28

Brake Pedal (Black)

705600131

Unavailable

29

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

30

WASHER - Call your local BRP dealership

503107800

Unavailable

31

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

32

O-RING - Call your local BRP dealership

293300053

Unavailable

33

Brake Switch

515175653

Unavailable

34

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

35

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

36

Tubing 6 Mm 3000Mm Long

219704425

Unavailable

37

Switch Nut

250100002

Unavailable

38

Plunger Cap

570151100

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

40

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

41

Female Terminal

561503100

Unavailable

42

Brake Disk 220 mm (Rear)

705600033

Unavailable

43

Torx Screw M8 X 16, Scotch Grip

235381646

Unavailable

44

Tie Wrap 368 mm

293750008

Unavailable

Tie-Rap 180 mm

414115200

Unavailable

45

Banjo Bolt

414920500

Unavailable

46

Washer

414920600

Unavailable

47

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable
