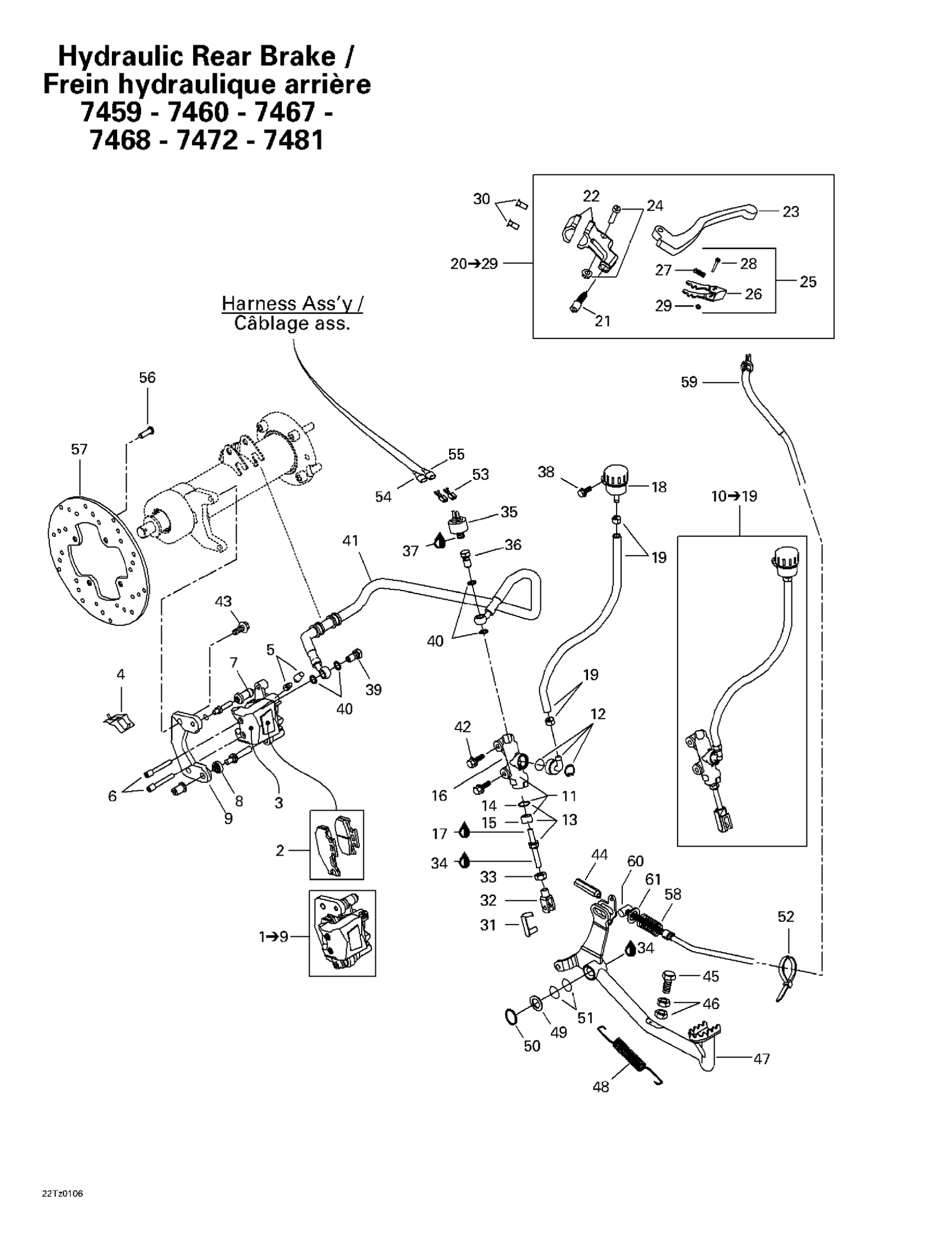

Can-Am Traxter, 7459/7460/7465/7466, 2001 06- Hydraulic Rear Brake (7459 - 7460 - 7467 - 7468 - 7472 - 7481) Diagram

#

Description
Price

1

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

2

Brake Pad Kit

705600150

Unavailable

3

Piston Set

705600078

Unavailable

4

Spring

705600079

Unavailable

5

Bleeding Screw

705600080

Unavailable

6

Pin Set (2)

705600081

Unavailable

7

Compression Boot

705600082

Unavailable

8

Compression Boot

705600083

Unavailable

9

Lining Support

705600149

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Piston Set

705600063

Unavailable

12

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

13

Rod Ass'y | Includes 45 - 47.

705600155

Unavailable

14

Circlip

705600068

Unavailable

15

Compression Boot

705600090

Unavailable

16

Master Cylinder

705600117

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Oil Tank, Brake Fluid Reservoir

705600182

Unavailable

19

OIL HOUSING HOSE - Call your local BRP dealership

705600169

Unavailable

20

Brake Handle | Includes 61 To 66

705600011

Unavailable

21

Cable Screw

250000030

Unavailable

22

CLAMP KIT - Call your local BRP dealership

705600184

Unavailable

23

LEVER - Call your local BRP dealership

705600186

Unavailable

24

Pivot Kit

705600187

Unavailable

25

Lever Lock Kit

705600188

Unavailable

26

Lock lever

705600224

Unavailable

27

SPRING - Call your local BRP dealership

705600225

Unavailable

28

Screw M3 X 22

208032291

Unavailable

29

Elastic Stop Nut M3

232531423

Unavailable

30

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

31

Pin Kit

219702305

Unavailable

32

Yoke

705600100

Unavailable

33

Hex. Nut M8

232081414

Unavailable

34

Synthetic Grease, 400 G

293550010

Unavailable

35

Interrupteur *Brake Switch

710001345

Unavailable

36

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

37

Was 293800013 Loctite 56765

219704454

Unavailable

38

Hex. Flange Screw M6 X 16

210261650

Unavailable

39

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

40

Washer

414920600

Unavailable

41

BRAKE LINE - Call your local BRP dealership

705601392

Unavailable

42

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

43

Hex. Screw M10 X 14, Scotch Grip

250000163

Unavailable

44

NUT - Call your local BRP dealership

705600147

Unavailable

45

Hex. Screw M10 X 25

207102544

Unavailable

46

Hex. Nut M10 X 1.5

232006414

Unavailable

47

BRAKE PEDAL, BLACK - Call your local BRP dealership

705600125

Unavailable

48

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

49

WASHER - Call your local BRP dealership

503107800

Unavailable

50

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

51

O-RING - Call your local BRP dealership

293300053

Unavailable

52

Tie-Rap 180 mm

414115200

Unavailable

53

Female Terminal | DS 650 X

278001009

Unavailable

54

Insulated Sheath

278001007

Unavailable

55

Insulated Sheath

278000770

Unavailable

56

Torx Screw M8 X 16, Scotch Grip

235381646

Unavailable

57

Brake Disk 220 mm (Rear)

705600170

Unavailable

58

SPRING - Call your local BRP dealership

705600144

Unavailable

59

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

60

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

61

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable
