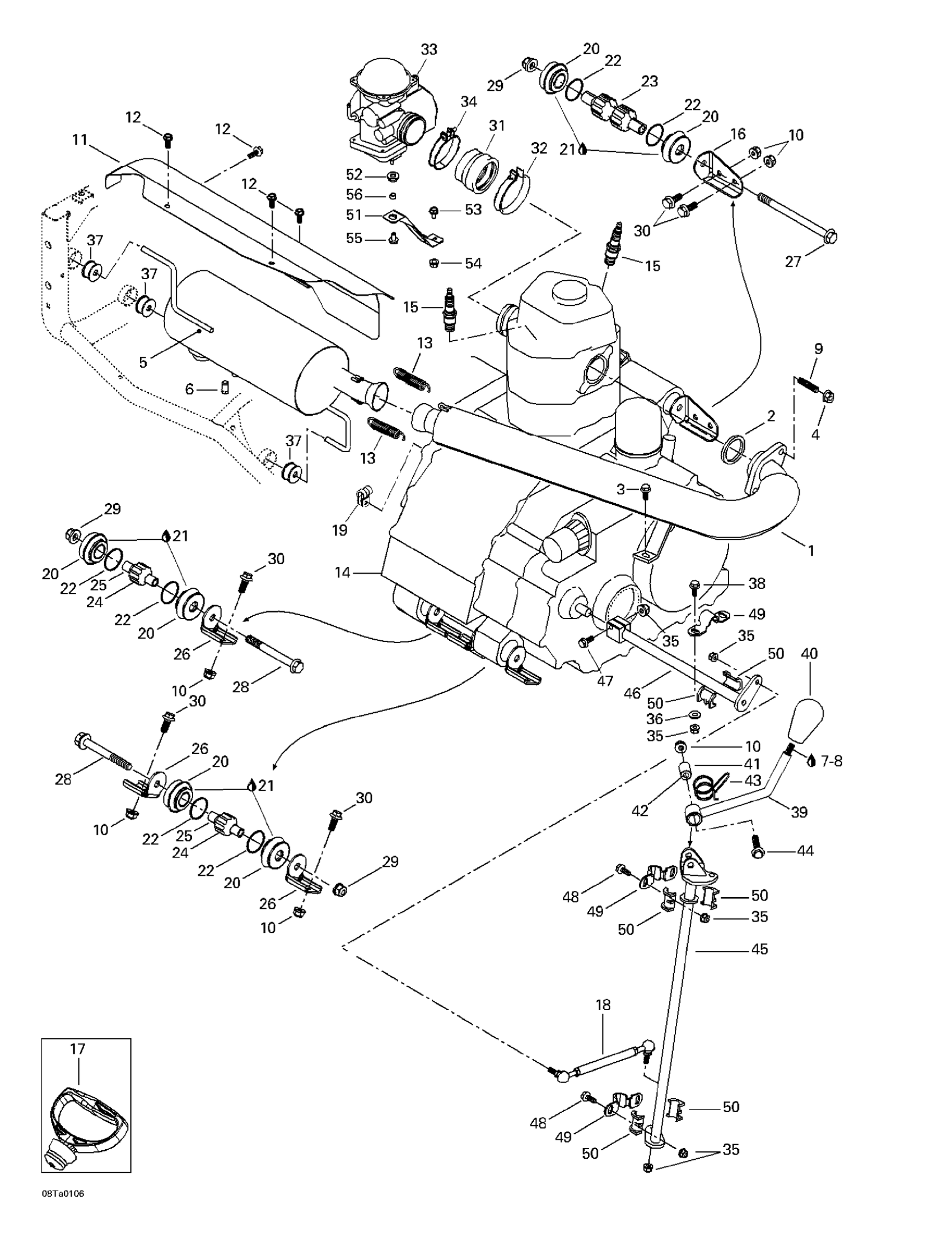

Can-Am Traxter, 7459/7460/7465/7466, 2001 01- Exhaust System Diagram

#

Description
Price

1

Tuned Pipe

707600062

Unavailable

2

GASKET - Call your local BRP dealership

707600003

Unavailable

3

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

4

Hex. Flange Nut M8

233081416

Unavailable

5

Muffler | Includes 5 To 6

707600080

Unavailable

6

Drain Plug

250500003

Unavailable

7

Was 293800041 Loctite Primer 7649

219704458

Unavailable

8

Loctite 243, 10 ml

293800060

Unavailable

9

Stud M8 x 23

711940366

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

Heat Shield

707600076

Unavailable

12

Hex. Flange Screw M6 X 10

210261040

Unavailable

13

Spring

415107100

Unavailable

14

Rotax 4 Strokes Engine «511» | Includes 1 to 7

707000041

Unavailable

15

Spark Plug, NGK/DR8EA

707000008

Unavailable

16

Front Engine Bracket, Black

707000082

Unavailable

17

Starting Grip

711852515

Unavailable

18

Tie Rod Ass'y

707000068

Unavailable

19

Hose Retainer 13 mm

705600232

Unavailable

Open Clamp

705600040

Unavailable

20

Anti-Vibration Mount

707000002

Unavailable

21

Synthetic Grease, 400 G

293550010

Unavailable

22

O-Ring

293300050

Unavailable

23

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

24

Support Bushing | Includes 10 to 11

707000030

Unavailable

25

RH LOWER BUSHING - Call your local BRP dealership

707000004

Unavailable

26

Engine Bracket

705200197

Unavailable

27

Hex. Flange Screw M10 X 140

230604044

Unavailable

28

HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership

207609544

Unavailable

29

Hex. Flange Elastic Nut M10

233201414

Unavailable

30

Hex. Flange Screw M8 X 20

207682044

Unavailable

31

CARBURETOR ADAPTOR - Call your local BRP dealership

707000037

Unavailable

32

Clamp

512059062

Unavailable

33

CARBURATOR ASS?Y BSR33-29 - Call your local BRP dealership

707200157

Unavailable

34

Gear Clamp Gemi

293650094

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

Shim 1.0 mm

707000080

Unavailable

Shim 2.0 mm

707000081

Unavailable

37

Anti-Vibration Rubber

707600702

Unavailable

38

Hex. Flange Screw M6 X 20

207662044

Unavailable

39

LEVER ASS'Y - Call your local BRP dealership

707000010

Unavailable

40

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

41

Adjuster Bushing

705500193

Unavailable

42

BUSHING - Call your local BRP dealership

705500150

Unavailable

43

LEVER SPRING - Call your local BRP dealership

705500024

Unavailable

44

Hex. Flange Screw M8 X 50

207685044

Unavailable

45

Upper Tube

705500134

Unavailable

46

Lower Tube

705500135

Unavailable

47

Hex. Flange Screw M6 X 35

207663544

Unavailable

48

Hex. Flange Screw M6 X 16

207661644

Unavailable

49

RETAINER CLAMP - Call your local BRP dealership

705500041

Unavailable

50

Half Ring

705500033

Unavailable

51

Carburator Support

707200159

Unavailable

52

Grommet

709000582

Unavailable

53

Hex. Flange Screw M6 X 20

207662044

Unavailable

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

55

Hex. Screw M4 X 16, Scotch Grip

207341644

Unavailable

56

Spacer

707000181

Unavailable
