01- Crankshaft, Pistons And Cylinder

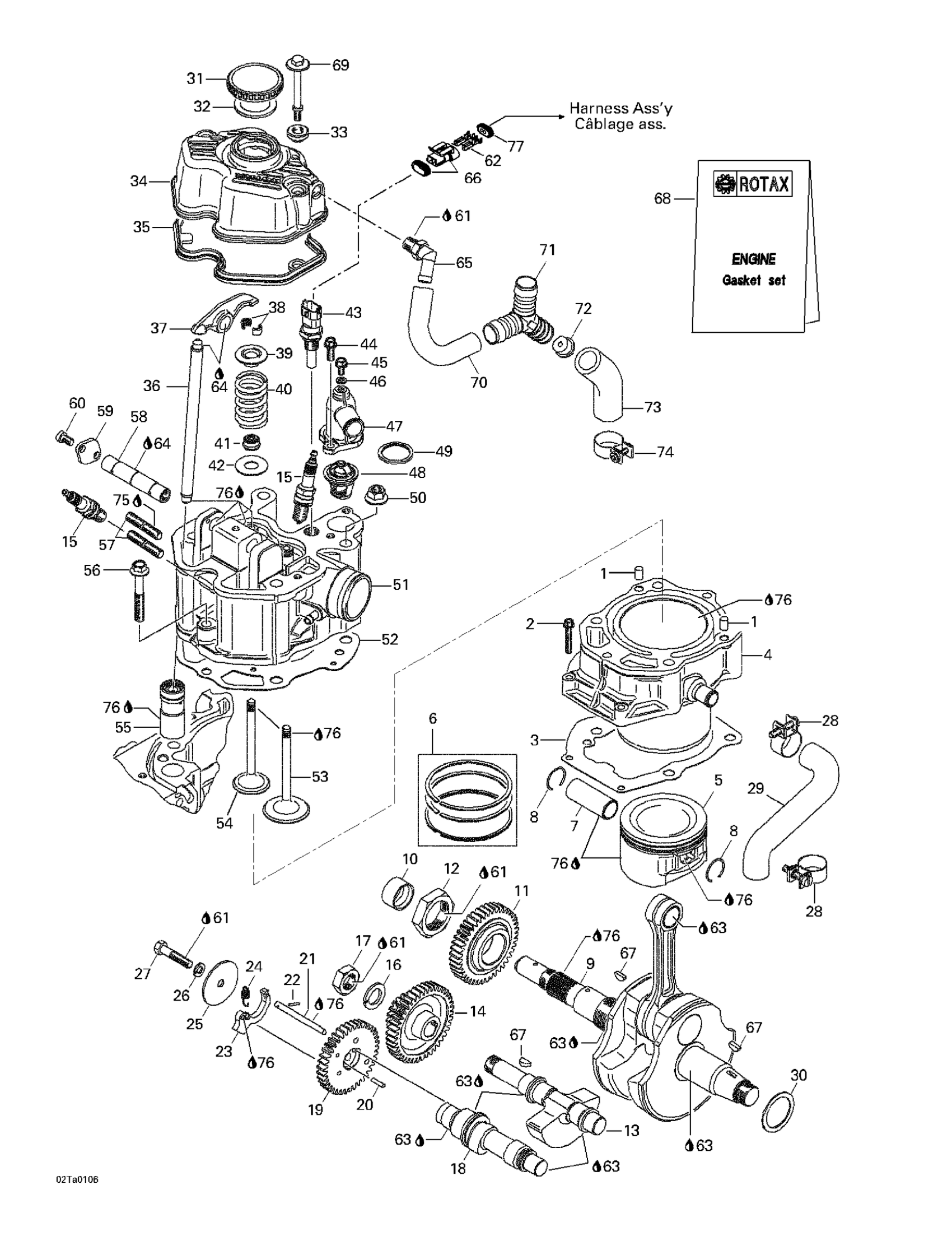

Can-Am Traxter, 7459/7460/7465/7466, 2001 01- Crankshaft, Pistons And Cylinder Diagram
#
1
Center Pin 8 X 12
420632010
Unavailable
2
Hex. Flange Screw M6 x 35
711941126
Unavailable
3
CYLINDER GASKET - Call your local BRP dealership
711650430
Unavailable
4
Cylinder/Piston
711613177
Unavailable
5
Piston 89 mm & Ring Set | Includes 5 - .
711296110
Unavailable
6
Piston Ring Set
711296114
Unavailable
7
Piston Pin
420216225
Unavailable
8
Circlip 22 mm
711245431
Unavailable
9
Crankshaft Ass'y | Includes 9 - 10.
711295893
Unavailable
10
Spacer
711247070
Unavailable
11
Mating Gear (42 Teeth)
711635011
Unavailable
12
Nut M34
711842605
Unavailable
13
Balance Shaft
711220470
Unavailable
14
Balancing Gear Double
711635100
Unavailable
15
Spark Plug, NGK/DR8EA
707000008
Unavailable
16
Lock Washer 18 mm
290945757
Unavailable
17
HEX. NUT M18 - Call your local BRP dealership
420942220
Unavailable
18
Cam Shaft
711220462
Unavailable
19
Cam Shaft Gear (38 Teeth)
711634956
Unavailable
20
Needle Pin
420232420
Unavailable
21
Deko Shaft Ass'y
711220615
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Centrifugal Weight
711231050
Unavailable
24
Tension Spring
711239570
Unavailable
25
Washer
711244260
Unavailable
26
Washer-Lock Din.128
420945832
Unavailable
27
Hex. Screw M8 X 40
207084044
Unavailable
28
Clamp
711951760
Unavailable
29
Water Cooling Hose
711222285
Unavailable
30
Adjusting Washer 35 x 45 x 1.3
711427505
Unavailable
Adjusting Washer 35 x 45 x 1.5
711427506
Unavailable
Adjusting Washer 35 x 45 x 1.8
711427507
Unavailable
31
Bayonet Filler Cap | Includes 63 - 64.
711974644
Unavailable
32
Gasket Ring
711650990
Unavailable
33
Rubber Bushing
711260050
Unavailable
34
Valve Cover
711211835
Unavailable
35
Valve Cover Gasket
711650450
Unavailable
36
Push Rod
711854575
Unavailable
37
Rocker Arm
711254083
Unavailable
38
Valve Cotter
711253090
Unavailable
39
Valve Spring Retainer
711254100
Unavailable
40
Valve Spring
711239500
Unavailable
41
Valve Seal
420230810
Unavailable
42
THRUST WASHER - Call your local BRP dealership
420227980
Unavailable
43
Temperature Sensor
278002895
Unavailable
44
Hex. Flange Screw M6 x 16
711241751
Unavailable
45
Hex. Flange Screw M6 x 16
711241751
Unavailable
46
Sealing Washer
404146600
Unavailable
47
Thermostat Cover
711222560
Unavailable
48
Thermostat | Includes 53 to 54
420222495
Unavailable
49
Thermostat Gasket
420650300
Unavailable
50
Hex. Flange Nut M10
233101414
Unavailable
51
Cylinder Head
711613375
Unavailable
52
Cylinder Head Gasket
711650446
Unavailable
53
Inlet Valve 42 mm
711254050
Unavailable
54
Inlet Valve 34 mm
711254062
Unavailable
55
Valve Hydraulic Tappet
420854099
Unavailable
56
Hex. Flange Screw M8 X 53.5
420240326
Unavailable
57
Stud M8 x 23
711940366
Unavailable
58
Rocker Arm Shaft
711254110
Unavailable
59
Holding Strip
711244250
Unavailable
60
Socket Head Screw M6 x 10
711241681
Unavailable
61
Loctite 243, 10 ml
293800060
Unavailable
62
Female Terminal
278000998
Unavailable
63
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
64
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
65
Angular Tube
420922242
Unavailable
66
Male Housing, 2 Circuits
278001005
Unavailable
67
Woodruff Key 4 X 5
420246570
Unavailable
68
Gasket Set Engine
711296372
Unavailable
69
DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership
420240906
Unavailable
70
Formed Hose
711222610
Unavailable
71
Y Fitting
711874380
Unavailable
72
Fitting
711222590
Unavailable
73
Formed Hose
711222600
Unavailable
74
Gear Clamp
711251222
Unavailable
75
Sealant Loctite 648
219703000
Unavailable
76
Not Available As Spare Part - Friction Washer
Unavailable
77
Wire Seal
278000999
Unavailable
