04- Rewind Starter, Electric Starter

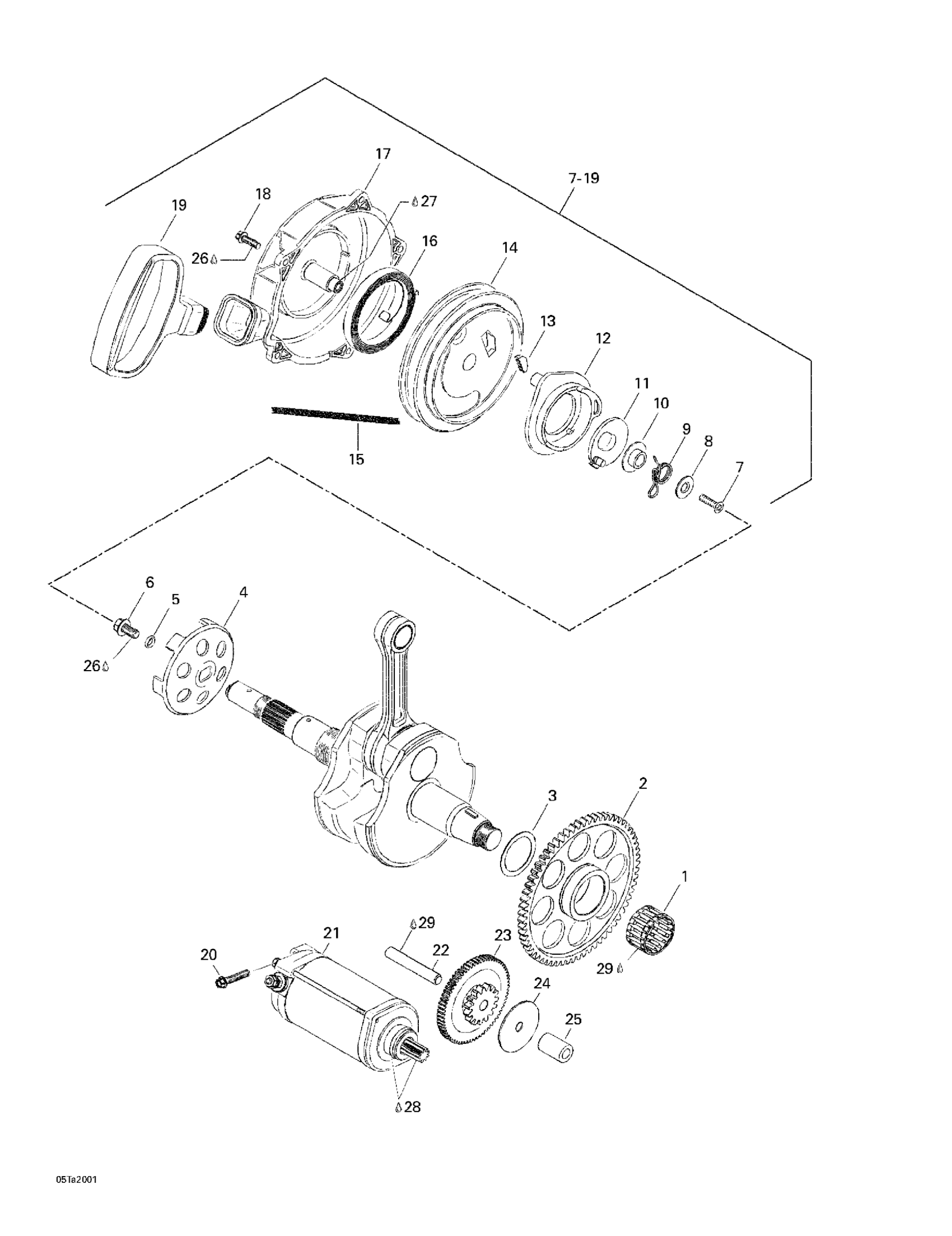

Can-Am Traxter, 7417/7418, 2000 04- Rewind Starter, Electric Starter Diagram
#
Description
Price
1
Needle Cage
711632190
Unavailable
2
Ring Gear (65 Teeth)
711634941
Unavailable
3
Thrust Washer
711244290
Unavailable
4
Starting Pulley
420852501
Unavailable
5
O Ring
711650710
Unavailable
6
Hex. Flange Screw M8 x 20
711241720
Unavailable
7
Rewind Starter Ass'y | Includes 7 - 19.
711296150
Unavailable
7
Screw Plastite M6 x 20
711241730
Unavailable
8
Flat Washer
420244320
Unavailable
9
Locking Spring
420938989
Unavailable
10
STAGE SLEEVE - Call your local BRP dealership
420847927
Unavailable
11
Lock Pawl
420852306
Unavailable
12
Pawl
420852299
Unavailable
13
Key Clamp
420852070
Unavailable
14
Rope Sheave
420852283
Unavailable
15
Was 412500100 Rope-Starter
219704403
Unavailable
16
Rewind Spring
420939115
Unavailable
17
Starter Rope Housing
420610930
Unavailable
18
Hex. Flange Screw M6 x 20
711241861
Unavailable
19
Starting Grip
711852515
Unavailable
20
Hex. Flange Screw M6 x 30
711241941
Unavailable
21
Electric Starter Ass'y
711296120
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
21
O-Ring
420250140
Unavailable
21
Oil Seal
420250130
Unavailable
22
Needle Pin
420229475
Unavailable
23
Double Gear 15/67 Teeth
711634970
Unavailable
24
Thrust Washer
711227620
Unavailable
25
Spacer
711847485
Unavailable
26
Loctite 243, 10 ml
293800060
Unavailable
27
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
28
Molykote G-N, 50 g
420297433
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
