05- Drive System, Front

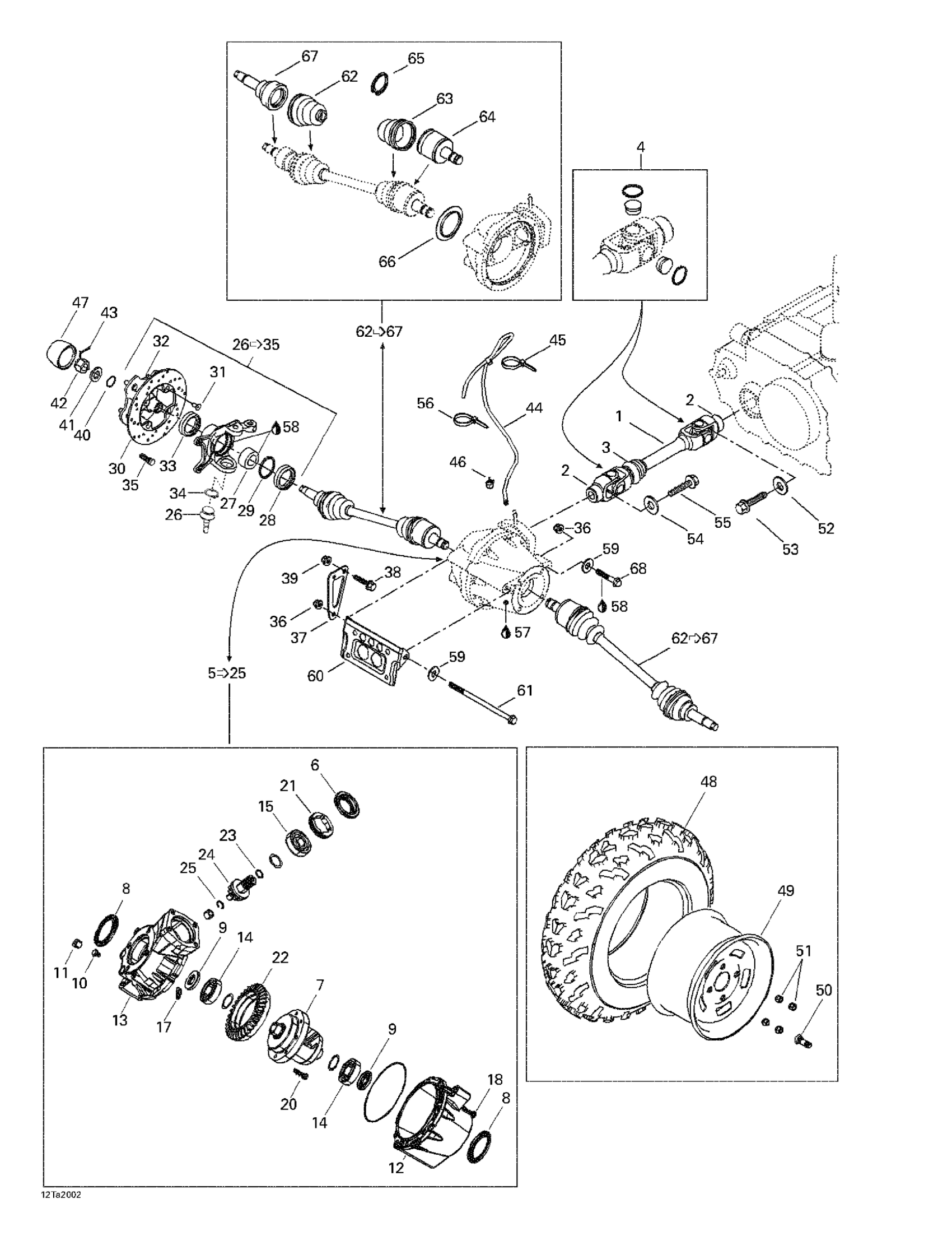

Can-Am Traxter, 7407/7408, 2000 05- Drive System, Front Diagram
#
1
Front Propeller Shaft Kit
703500001
Unavailable
2
Wear Ring | 4X4
705400036
Unavailable
3
PROTECTOR - Call your local BRP dealership
705400051
Unavailable
4
Ens. Croix*U-Joint Cross Kit
715900325
Unavailable
5
Front Differential Ass'y | Includes 5 - 5.
705400003
Unavailable
6
Oil Seal | 4X4
705401481
Unavailable
7
DIFFERENTIAL - Call your local BRP dealership
705400404
Unavailable
8
OIL SEAL - Call your local BRP dealership
705400019
Unavailable
9
Gasket | 4X4
705401618
Unavailable
10
Drain Plug
705500093
Unavailable
11
Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.
705500143
Unavailable
12
Differential Carrier
705400026
Unavailable
13
Differential Cap
705400025
Unavailable
14
Ball Bearing | 4X4
705401606
Unavailable
15
Ball Bearing
705500074
Unavailable
16
Needle Bearing
705500077
Unavailable
17
Vent Valve
705500124
Unavailable
18
SCREW - Call your local BRP dealership
705500088
Unavailable
19
Seal
705500091
Unavailable
20
RING GEAR SCREW - Call your local BRP dealership
705500090
Unavailable
21
Nut | 4X4
705401603
Unavailable
22
Gear (36 Teeth)
705500087
Unavailable
23
O-Ring
705500073
Unavailable
24
GEAR (10 TEETH) - Call your local BRP dealership
705500076
Unavailable
25
Retaining Ring
705500102
Unavailable
26
Knuckle Kit R.H | Includes 26 - 34.
703500040
Unavailable
Knuckle Kit L.H
703500041
Unavailable
26
Ball Joint
706200653
Unavailable
27
ANGLE BEARING (7431 _ 7434) - Call your local BRP dealership
705400006
Unavailable
28
Oil Seal | 4X4
293250090
Unavailable
29
CIRCLIP (7431 _ 7434) - Call your local BRP dealership
293370003
Unavailable
30
Brake Disk (Front) (7431 @ 7434)
705600003
Unavailable
31
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
32
Front Wheel Hub(7431 @ 7434)
705400011
Unavailable
33
Oil Seal (7431 @ 7434)
293250098
Unavailable
34
Circlip 32 mm
293370009
Unavailable
35
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
36
Hex. Flange Nut M10
233101414
Unavailable
37
RH Diffential Front Bracket
705400069
Unavailable
38
Hex. Flange Screw M8 X 20
207682044
Unavailable
39
Hex. Flange Elastic Nut M8
233281414
Unavailable
40
O-Ring
293300052
Unavailable
41
Washer
211200049
Unavailable
42
Hex. Flange Castellated Nut M18
232291413
Unavailable
43
Cotter Pin
250400036
Unavailable
44
Vent Hose (Meter)
417110000
Unavailable
45
Tie Wrap 142 mm
293750002
Unavailable
46
Spring Clamp
414554800
Unavailable
47
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
48
Tire 205 X 80 R12
705402890
Unavailable
49
Front Rim
705400010
Unavailable
50
Rim Valve With Cap
705400193
Unavailable
51
HEX. NUT - Call your local BRP dealership
705400013
Unavailable
52
Washer
211200041
Unavailable
53
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
54
Flat Washer M10 | 4X4
250200014
Unavailable
55
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
56
Tie Wrap 142 mm
293750002
Unavailable
57
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
58
Synthetic Grease, 400 G
293550010
Unavailable
59
Flat Washer
250200003
Unavailable
60
Bracket (Differential)
705400068
Unavailable
61
Flange Screw M10 X 200, Scotch Grip
250000024
Unavailable
62
RH CV Joint (7431 @ 7434) | Includes 62 - 67.
703500021
Unavailable
LH CV Joint(7431 @ 7434)
703500022
Unavailable
62
WHEEL BOOT KIT - Call your local BRP dealership
705400038
Unavailable
63
DIFFERENTIAL BOOT KIT - Call your local BRP dealership
705400039
Unavailable
64
RH Plunging Joint
705400040
Unavailable
LH Plunging Joint
705400041
Unavailable
65
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
66
Wear Ring
705400016
Unavailable
67
CV JOINT (7431 _ 7434) - Call your local BRP dealership
705400037
Unavailable
68
HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.
207506044
Unavailable
