- Traxter, 7400/ 7401/7413/7414, 1999
10- Battery And Electrical Accessories

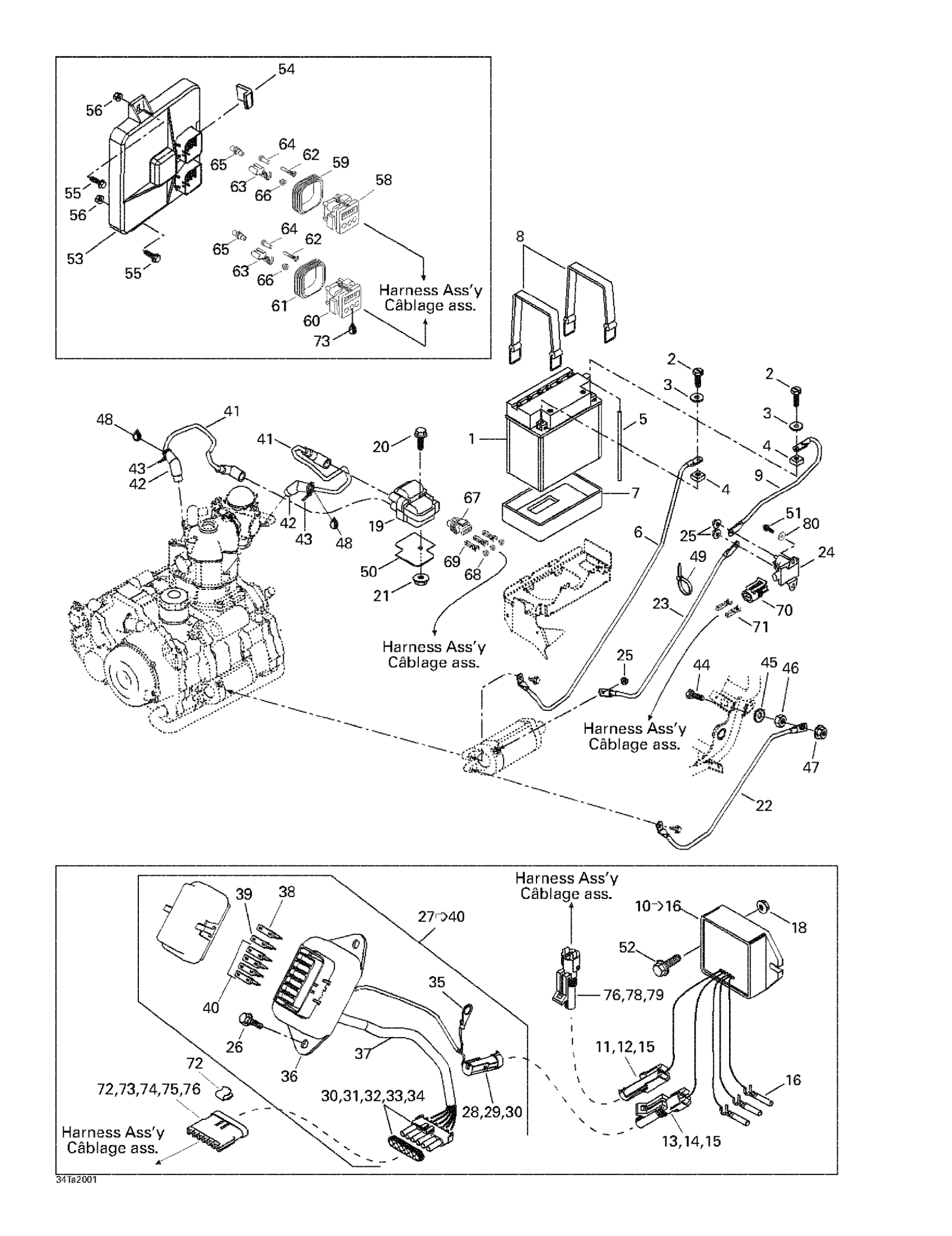

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 10- Battery And Electrical Accessories Diagram
#
1
Battery 19A | Includes 5 to 8
278001756
Unavailable
2
Hex. Screw M6 X 16
207161644
Unavailable
3
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
4
Hex. Nut M6
232061414
Unavailable
5
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
6
Ground Cable
710000023
Unavailable
7
Battery Lower Pad
278001234
Unavailable
8
Retainer Strap
293850097
Unavailable
9
Positive Cable
710000011
Unavailable
10
VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26
710000100
Unavailable
11
Male Terminal | XT Models
278000222
Unavailable
12
Female Housing, 1 Circuit
278000161
Unavailable
13
Female Terminal
278000223
Unavailable
14
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
15
Wire Seal
278000218
Unavailable
16
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
17
Tie Wrap 94 mm | 4X4
293750001
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
Ignition Coil
278001546
Unavailable
20
Hex. Flange Screw M6 X 45
207664544
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Battery Ground Cable
710000022
Unavailable
23
Positive Cable
710000012
Unavailable
24
Starter Relay
710000091
Unavailable
25
Hex. Elastic Stop Nut M6
232561600
Unavailable
26
Hex. Flange Screw M6 X 16
210261650
Unavailable
27
Fuse Holder | Includes 27 - 40.
710000016
Unavailable
28
Male Terminal
409004300
Unavailable
29
Female Housing, 1 Circuit
278000161
Unavailable
30
Wire Seal
278000218
Unavailable
Wire Seal
710000048
Unavailable
31
Wire Seal
278000216
Unavailable
32
Female Terminal
409007300
Unavailable
33
Female Terminal
278000223
Unavailable
34
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000221
Unavailable
35
Open Barrel Terminal
278001392
Unavailable
36
Fuse Box
710000029
Unavailable
37
TUBING 6 MM - Call your local BRP dealership
515175442
Unavailable
38
Fuse, 30 Amperes
410917200
Unavailable
39
Fuse, 20 Amperes
409003900
Unavailable
40
Fuse, 15 Amperes
278000343
Unavailable
41
Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57
703500744
Unavailable
42
Spark Plug Connector
420265248
Unavailable
43
Tie Wrap 94 mm | 4X4
293750001
Unavailable
44
Hex. Screw M6 X 25
207162544
Unavailable
45
External Serrated Lock Washer 6 mm
234461608
Unavailable
46
Hex. Nut M6
232061414
Unavailable
47
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
48
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
49
Tie-Rap 180 mm
414115200
Unavailable
50
Insulator Pad
710000073
Unavailable
51
Hex. Flange Tapping Screw | 7400/7401.
250000028
Unavailable
Hex. Flange Tapping Screw | 7413/7414. 7415/7416. 7417/7418.
250000039
Unavailable
52
Hex. Flange Screw M6 X 20
207662044
Unavailable
53
Electronic Module Calibrated | 7400/7401.
710000094
Unavailable
Electronic Module Calibrated | 7413/7414. 7415/7416. 7417/7418.
710000109
Unavailable
54
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
55
Hex. Flange Screw M6 X 20
207662044
Unavailable
56
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
57
*(Ormd) *Deoxit Aerosol *
293550034
Unavailable
58
Male Terminal Housing, 26 Circuits
278001062
Unavailable
59
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
60
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership
278001063
Unavailable
61
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
62
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
63
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
64
SEAL - Call your local BRP dealership
409013900
Unavailable
65
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
67
Male Housing, 3 Circuits
278000997
Unavailable
68
Wire Seal
278000999
Unavailable
69
Female Terminal
278000998
Unavailable
70
Male Connector, 2 Circuits
278001113
Unavailable
71
Female Terminal
278001114
Unavailable
72
Male Terminal
409004300
Unavailable
73
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
74
Wire Seal
278000216
Unavailable
75
Wire Seal
278000218
Unavailable
76
Wire Seal
710000048
Unavailable
77
CLIP - Call your local BRP dealership
409014200
Unavailable
78
Female Terminal
409007300
Unavailable
79
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
80
FLAT WASHER - Call your local BRP dealership
391302100
Unavailable
