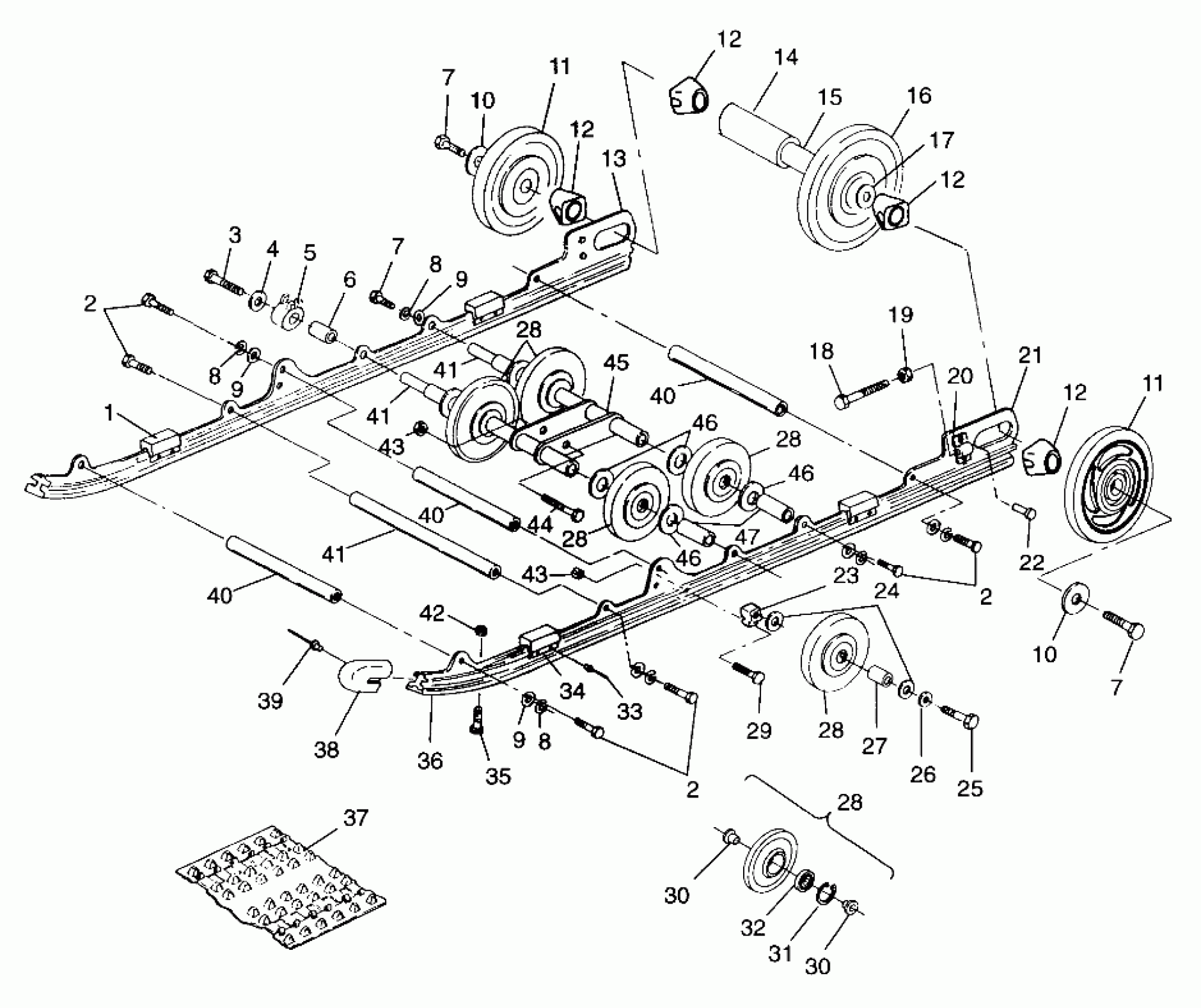

Polaris TRANSPORT - 099SU4DS SUSPENSION - 099SU4DS (4948264826b007) Diagram

#

Description
Price

1

BUMPER, RAIL

5810554

$7.27

2

SCREW,(10)

7517247

$3.19

2

SCREW,(10)

7517247

$3.19

2

SCREW,(10)

7517247

$3.19

3

BOLT, SUSP.(10)

7515499

Unavailable

4

WASHER(10)

7555823

$3.99

5

BLOCK,SPRING SLIDER

5431924

$10.65

6

SPACER

5333428

$4.79

7

BOLT(10)

7515526

$1.19

7

BOLT(10)

7515526

$1.19

7

BOLT(10)

7515526

$1.19

8

WASHER(10)

7552603

$1.49

8

WASHER(10)

7552603

$1.49

8

WASHER(10)

7552603

$1.49

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

10

WASHER(10) Substituted by 7556130

7571629

Unavailable

10

WASHER(10) Substituted by 7556130

7571629

Unavailable

11

RING-RETAINING

7710444

$8.79

11

Bearing

3514012

Unavailable

11

WHEEL,IDLER,SCRL.GLD.MET.

1594083-227

$72.84

11

RING-RETAINING

7710444

$8.79

11

Bearing

3514012

Unavailable

11

WHEEL,IDLER,SCRL.GLD.MET.

1594083-227

$72.84

12

SPACER-IDLER

5432535

$11.99

12

SPACER-IDLER

5432535

$11.99

12

SPACER-IDLER

5432535

$11.99

12

SPACER-IDLER

5432535

$11.99

13

RAIL ASM,RH,141" (Incl. 1,20,22,34,38,39)

1541125

Unavailable

14

SPACER-IDLER, LONG

5333285

$11.99

15

SHAFT,IDLER

5020744

$59.99

16

WHEEL,IDLER,BLK(20MM)

1594056-070

$48.56

17

BUSHING(10)

7555918

$1.59

18

BOLT, ADJUSTER(10)

7515455

$29.99

19

NUT,TENSIONER ADJ.

5020943

$20.22

20

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

21

RAIL ASM,LH,141" (Incl. 1,20,22,34,38,39)

1541124

Unavailable

22

RIVET,(50)

7621501

$2.39

23

BRACKET,BOGIE WHEEL

5130570

$48.56

24

WASHER(10)

7555804

$3.99

25

BOLT(10)

7512659

$7.99

26

LOCK WASHER(10)

7553201

$3.99

27

SPACER

5332786

$7.99

28

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

28

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

28

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

28

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

28

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

29

BOLT(10)

7512404

$3.99

30

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

30

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

31

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

32

BEARING,CHAINCASE (1 per Wheel)

3514305

$19.99

33

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

34

REINF., BUMPER

5222629

$13.75

35

SCREW(10)

7512227

$3.19

36

SLIDER,WHI.,(2)

5521452

$40.46

37

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

37

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

37

TRACK,141'',DEEP-PROF,MOLDED

5410801

Unavailable

38

COVER-RAIL TIP

5430627

$32.37

39

RIVET(50)

7621435

$1.49

40

SHAFT,PIVOT ARM

5020723

$29.99

40

SHAFT,PIVOT ARM

5020723

$29.99

40

SHAFT,PIVOT ARM

5020723

$29.99

41

SHAFT,PIVOT ARM

5020724

$29.99

41

SHAFT,PIVOT ARM

5020724

$29.99

41

SHAFT,PIVOT ARM

5020724

$29.99

42

NUT-LOCK(10)

7542122

$1.49

43

NUT-LOCK(10)

7542439

$1.49

43

NUT-LOCK(10)

7542439

$1.49

44

BOLT(10)

7515438

$4.79

45

SHOCK MOUNT ARM

1541334-067

$44.40

46

MACHINERY BUSHING(10)

7556301

$3.19

46

MACHINERY BUSHING(10)

7556301

$3.19

46

MACHINERY BUSHING(10)

7556301

$3.19

47

SPACER, OUTER

5332784

Unavailable
