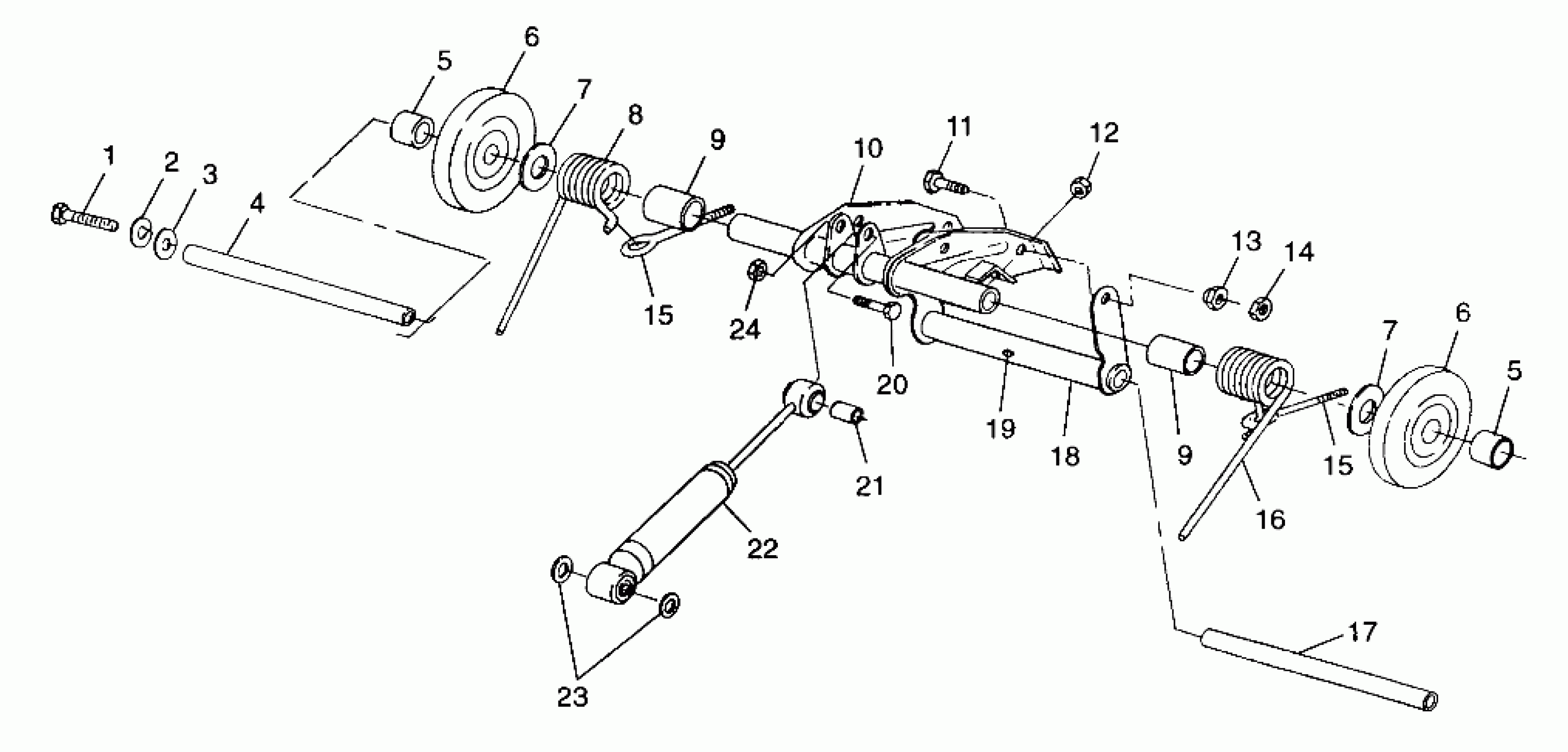

Polaris TRANSPORT - 099SU4DS REAR TORQUE ARM - 099SU4DS (4948264826b012) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT,MTG,REAR

5020906

Unavailable

5

SPACER-CARR.WHEEL

5332730

$14.99

5

SPACER-CARR.WHEEL

5332730

$14.99

6

WHEEL-TRACK CARRIER

1543017

$48.56

6

BEARING-5/8I.D. (1 Per Wheel)

3513504

$9.59

6

RETAINER(10) (1 Per Wheel)

7710403

$2.63

6

WHEEL-TRACK CARRIER

1543017

$48.56

6

BEARING-5/8I.D. (1 Per Wheel)

3513504

$9.59

6

RETAINER(10) (1 Per Wheel)

7710403

$2.63

7

WASHER(10)

7555726

$1.59

7

WASHER(10)

7555726

$1.59

8

SPRING,RH,R.SUSP,.406,BLK. (.406)

7041321-067

Unavailable

9

TUBE-SPRING

5521089

Unavailable

9

TUBE-SPRING

5521089

Unavailable

10

ARM, REAR TORQUE

1540539-067

Unavailable

11

BOLT(10)

7515317

$4.79

12

NUT FLEX LOC,(10)

7542402

$6.39

13

NUT, SHOULDER(10)

7542326

$19.99

14

NUT LOCK(10)

7542302

$3.99

15

EYEBOLT

7080386

$6.98

15

EYEBOLT

7080386

$6.98

16

SPRING,LH,R.SUSP,.406,BLK. (.406)

7041320-067

Unavailable

17

Shaft, Pivot Arm (See Footnote) (See Suspension Pg. B8, Ref. 40)

-------

Unavailable

18

ARM,REAR PIVOT

1540737-067

Unavailable

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

20

BOLT(10)

7512329

$3.99

21

SPACER

5332631

$6.39

22

SHOCK,REAR TRACK

7041737

Unavailable

23

WASHER, FLAT(10)

7555815

$3.99

24

NUT-5/16-18 NYLOK-Y

7542324

$1.49
