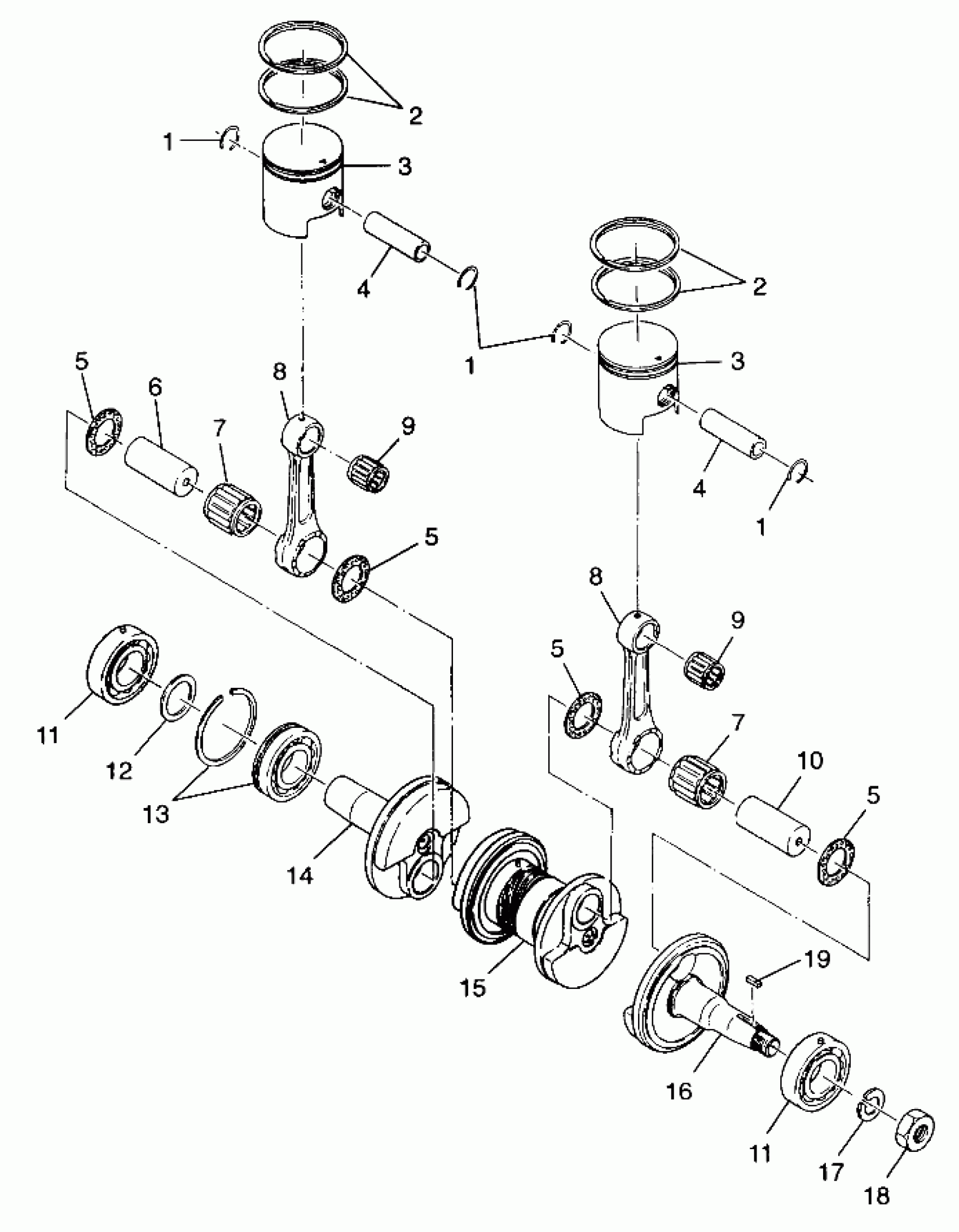

Polaris TRANSPORT - 099SU4DS PISTON and CRANKSHAFT - 099SU4DS (4948264826c006) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

2

RING, PISTON (Standard)

3082822

Unavailable

2

RING,PISTON,.010 O/S (0.25mm O/S)

3084242

Unavailable

2

RING,PISTON,(.020) (0.50mm O/S)

3084243

Unavailable

2

RING, PISTON (Standard)

3082822

Unavailable

2

RING,PISTON,.010 O/S (0.25mm O/S)

3084242

Unavailable

2

RING,PISTON,(.020) (0.50mm O/S)

3084243

Unavailable

3

PISTON(STD) (Standard)

3085837

$138.08

3

PISTON(0.25 O/S) (0.25mm O/S)

3085838

Unavailable

3

PISTON(0.50 O/S) (0.50mm O/S)

3085839

Unavailable

3

PISTON(STD) (Standard)

3085837

$138.08

3

PISTON(0.25 O/S) (0.25mm O/S)

3085838

Unavailable

3

PISTON(0.50 O/S) (0.50mm O/S)

3085839

Unavailable

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

Pin, Crank, 2

3083456

Unavailable

7

BEARING,LARGE END Substituted by 3086390

3085720

$1,634.99

7

BEARING,LARGE END Substituted by 3086390

3085720

$1,634.99

8

ROD-CONNECTING

3083252

$164.99

8

ROD-CONNECTING

3083252

$164.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

PIN,CRANK

3083233

$36.41

11

BEARING, BALL

3084586

$44.99

11

BEARING, BALL

3084586

$44.99

12

SPACER,CRANKSHAFT

3080447

$1.99

13

BEARING, BALL

3084587

Unavailable

14

CRANKSHAFT #3 (PTO Side)

3083278

Unavailable

15

CRANKSHAFT #2 (Center) (Incl. 6,10)

3083890

Unavailable

16

CRANKSHAFT #1 (Mag Side)

3083280

$255.99

16

CRANKSHAFT ASM. (Incl. 5-8,10-16)

3084585

Unavailable

17

WASHER-SPRING(10)

3083094

$3.17

18

NUT

3083093

$19.99

19

KEY

3081447

Unavailable
