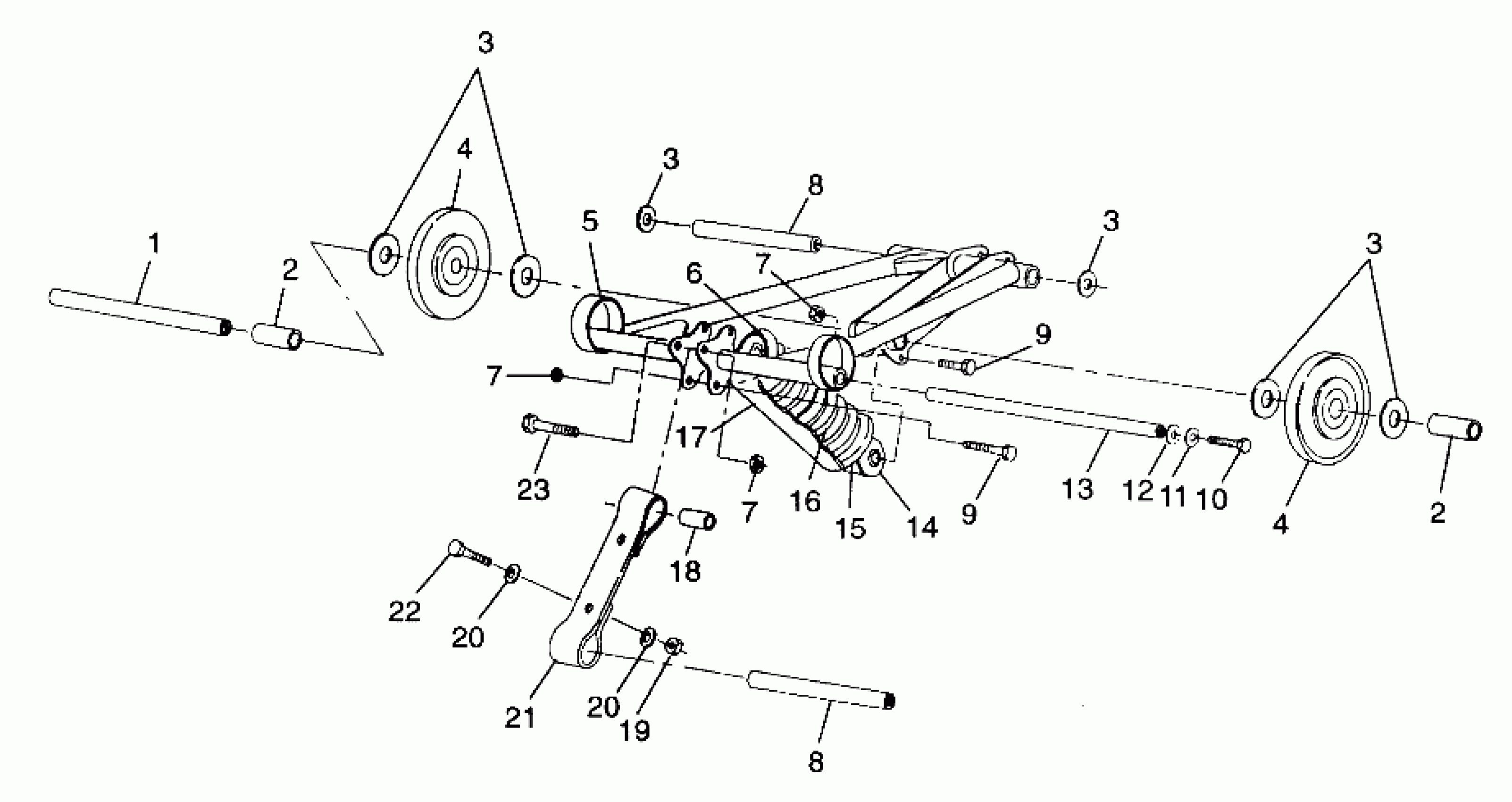

Polaris TRANSPORT - 099SU4DS FRONT TORQUE ARM - 099SU4DS (4948264826b011) Diagram

#

Description
Price

1

Shaft (See Footnote) (See Suspension Pg. B8, Ref. 41)

-------

Unavailable

2

SPACER, OUTER

5332784

Unavailable

2

SPACER, OUTER

5332784

Unavailable

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

4

BEARING,CHAINCASE (1 per Wheel)

3514305

$19.99

4

WHEEL, IDLER

1543018

$56.65

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

4

BEARING,CHAINCASE (1 per Wheel)

3514305

$19.99

4

WHEEL, IDLER

1543018

$56.65

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

5

ARM,F.TORQUE,BLK.

1540722-067

Unavailable

6

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

Shaft, Pivot Arm (See Footnote) (See Suspension Pg. B8, Ref. 40)

-------

Unavailable

8

Shaft, Pivot Arm (See Footnote) (See Suspension Pg. B8, Ref. 40)

-------

Unavailable

9

BOLT(10)

7515415

$1.49

9

BOLT(10)

7515415

$1.49

10

SCREW,(10)

7517247

$3.19

11

WASHER(10)

7552603

$1.49

12

WASHER(10)

7555893

$1.49

13

Shaft

5020908

$69.99

14

SHOCK,FRT.TRACK

7041741

Unavailable

15

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

16

SPRING,FR.TRACK,BLK

7041710-067

$34.44

17

SHIELD-SPRING

5430671

$24.27

18

BUSHING,SUSPENSION

5010212

Unavailable

19

NUT,NYLOC,(10)

7542344

$3.99

20

WASHER(10)

7555716

$1.59

20

WASHER(10)

7555716

$1.59

21

STRAP, LIMITER

5410397

Unavailable

22

SCREW ,(10)

7517313

$4.79

23

BOLT(10)

7515438

$4.79
