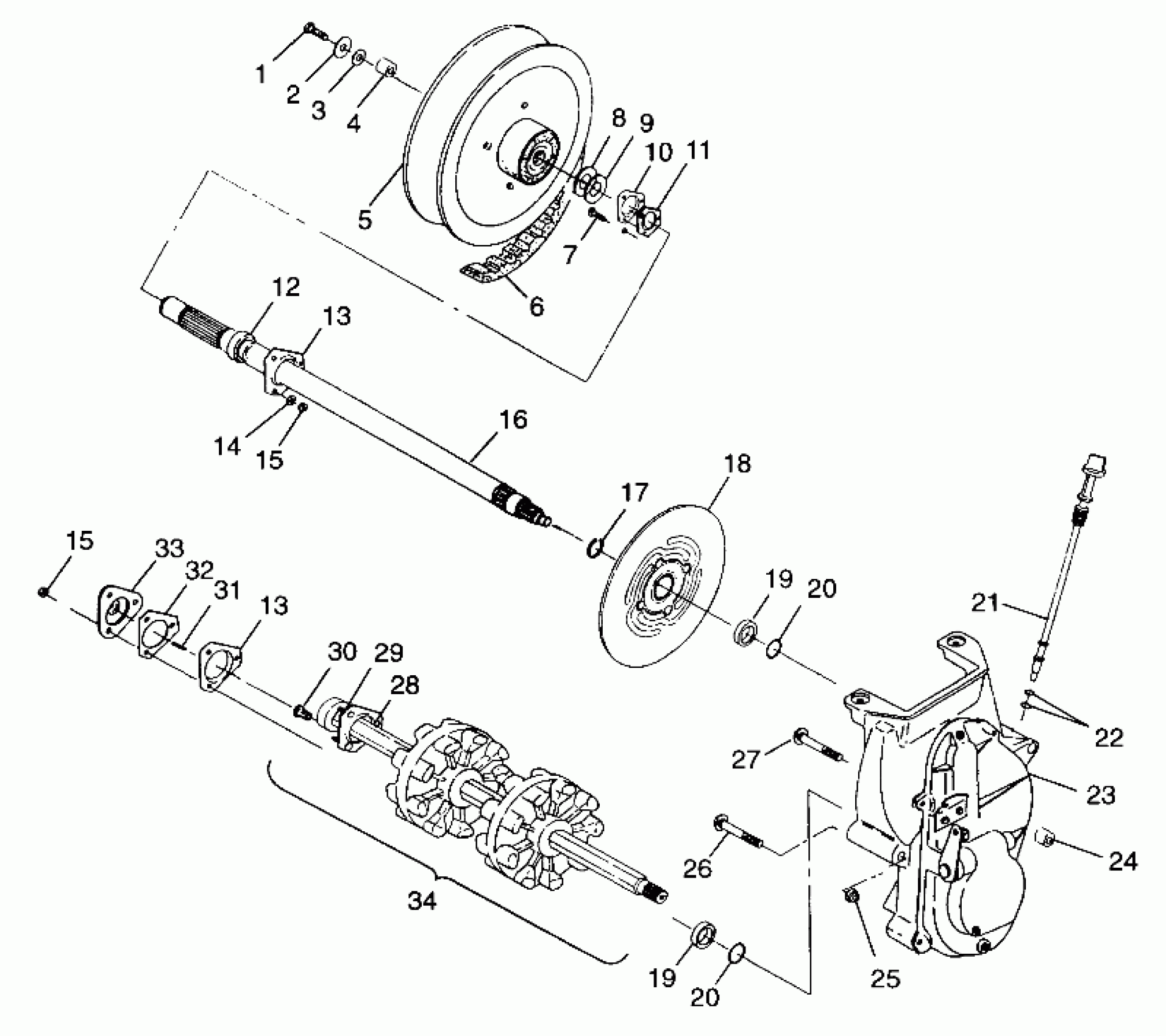

Polaris TRANSPORT - 099SU4DS DRIVE TRAIN - 099SU4DS (4948264826b006) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER,DRIVEN CLUTCH

5020645

Unavailable

5

Asm., Driven Clutch (See Footnote) (See Driven Clutch Pg. C1, Ref. 1)

-------

Unavailable

6

BELT, DRIVE(5)

3211059

$79.99

7

BOLT(10) Substituted by 7512377

7512394

Unavailable

8

SPACER, DRIVEN Substituted by 2200385

5020596

Unavailable

9

WASHER SPECIAL(10)

7556509

Unavailable

10

FLANGETTE

5240252

Unavailable

11

GASKET,JACKSHAFT,BLK.

5811095

$2.41

12

BEARING

3514525

$31.99

13

FLANGETTE

5222751

$16.44

13

FLANGETTE

5222751

$16.44

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

JACKSHAFT,P-90,15T,W/BRG (Incl. 12,17)

1332172

$161.89

17

RING, RETAINING(10)

7710422

$3.99

18

DISC ASM,BRAKE,SLOTTED,SNO Substituted by 1910403

1910276

Unavailable

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O RING,(10)

5410613

$1.99

20

O RING,(10)

5410613

$1.99

21

DIPSTICK Substituted by 1332143

5431419

Unavailable

22

O-RING

5410675

$1.60

23

Cover, Chaincase, Reverse (See Footnote) (See Chaincase Pg. B5, Ref. 14)

-------

Unavailable

24

TUBE, SPACER

5333082

Unavailable

25

NUT(10)

7542423

$3.99

26

BOLT(10)

7515428

$4.79

27

BOLT(10)

7515474

$3.33

28

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

29

BEARING,LUBE. Substituted by 3514525

3514526

$31.75

30

BUSHING METAL SPEEDO

3280019

$11.99

31

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

32

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

33

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

34

DRIVESHAFT ASM,2 DR.W/BEARING Substituted by 1590283 (Incl. 28-30)

1590271

Unavailable
