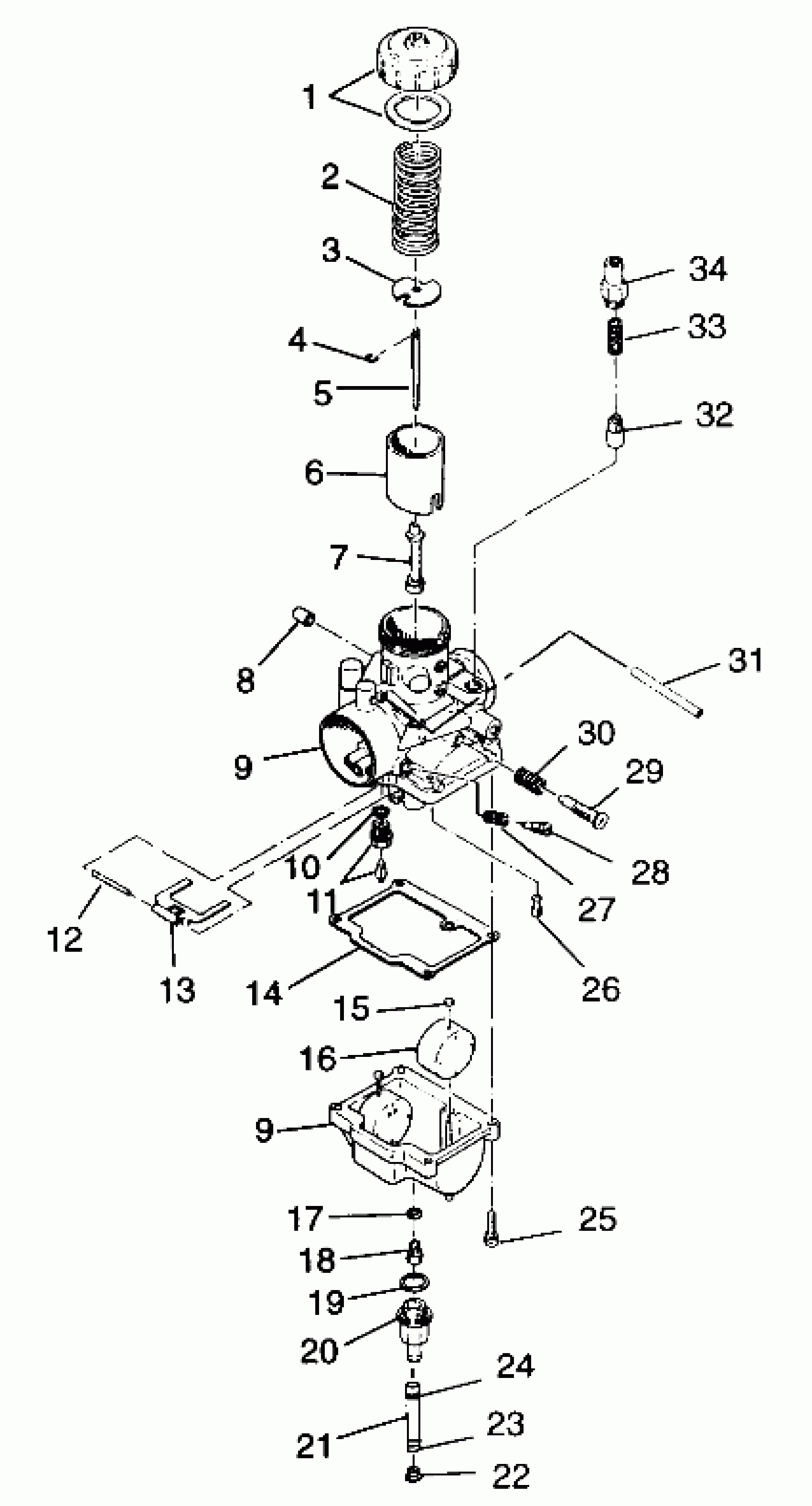

Polaris TRANSPORT - 099SU4DS CARBURETOR - 099SU4DS (4948264826c008) Diagram

#

Description
Price

1

TOP ASM (Incl. Gasket)

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE

3130027

$9.70

4

E-RING,(10)

3130508

$6.46

5

JET NEEDLE,(6FJ6-3) (6FJ6-3)

3130481

Unavailable

6

VALVE,THROTTLE,2.0 (2.0)

3130464

Unavailable

7

NEEDLE JET (166)

3130421

Unavailable

8

CAP

3130479

$14.56

9

CARBURETOR ASM. (Incl. 1-20,25-30,32-34)

3130547

Unavailable

9

CARBURETOR ASM. (Incl. 1-20,25-30,32-34)

3130547

Unavailable

10

PACKING(10)

3130017

$4.03

11

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

12

PIN, FLOAT

3130361

$8.89

13

ARM,FLOAT

3130018

$24.27

14

PACKING,FLOAT CHAMBER

3130020

$16.17

15

CAP,(10)

3130237

$4.03

16

FLOAT ASM.

3130430

$43.56

17

WASHER (10)

3130014

$1.59

18

JET,MAIN,HX.HD.#185(10) (#185)

3130120

$7.27

19

O RING

3130239

Unavailable

20

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

21

FUEL LINE, 5 FT.

8450045-153

Unavailable

22

PLUG,TRAP

5431893

$12.94

23

CLAMP,HOSE(10)

7080544

Unavailable

24

CLAMP,SPRING,(10)

7080534

$1.59

25

SCREW & WASHER(10)

3130025

$3.19

26

JET,PILOT,#35(10) (#35)

3130066

$8.89

27

SPRING,AIR ADJUST

3130012

$8.89

28

SCREW,AIR

3130011

$19.99

29

SCREW,THROTTLE STOP

3130009

$19.99

30

SPRING,THROTTLE ADJ.

3130010

$8.89

31

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

32

PLUNGER ASM, STARTER

3130328

$32.37

33

SPRING,PLUNGER

3130006

$8.89

34

HOLDER,GUIDE

3130199

$28.32
