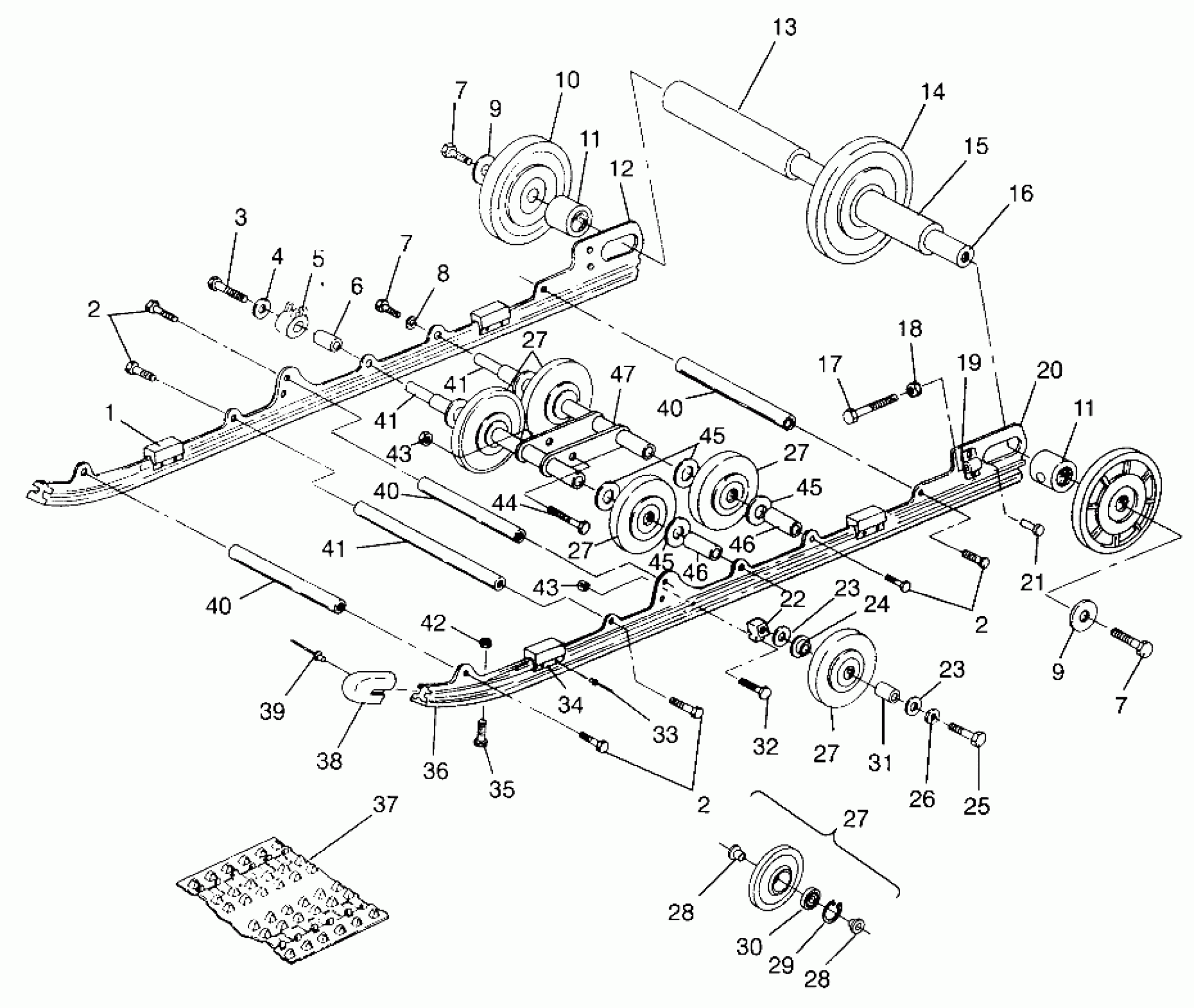

Polaris TRAN SPORT - 0960143 SUSPENSION TRAN SPORT 0960143 and EURO TRAN SPORT E960143 (4932273227B010) Diagram

#

Description
Price

1

BUMPER, RAIL

5810554

$7.27

2

BOLT

7515542

Unavailable

2

BOLT

7515542

Unavailable

2

BOLT

7515542

Unavailable

3

BOLT, SUSP.(10)

7515499

Unavailable

4

WASHER(10)

7555743

Unavailable

5

BLOCK,SPRING SLIDER

5431924

$10.65

6

SPACER

5333428

$4.79

7

BOLT(10)

7515526

$1.19

7

BOLT(10)

7515526

$1.19

7

BOLT(10)

7515526

$1.19

8

WASHER(10)

7552603

$1.49

9

WASHER(10) Substituted by 7556130

7571629

Unavailable

9

WASHER(10) Substituted by 7556130

7571629

Unavailable

10

WHEEL,IDLER,PURPLE"C"

1594060

Unavailable

11

SPACER-IDLER-OUTER

5332641

Unavailable

11

SPACER-IDLER-OUTER

5332641

Unavailable

12

RAIL ASM, RH Substituted by 1541125 (Incl. 18, 33, 40-44)

1540660

Unavailable

13

SPACER,IDLER,R.INNER

5333086

Unavailable

14

WHEEL, IDLER Substituted by 1594079-070

1594021

Unavailable

15

SPACER INNER IDLER

5010169

Unavailable

16

SHAFT,IDLER

5020722

Unavailable

17

BOLT, ADJUSTER(10)

7515455

$29.99

18

NUT(10)

7542440

Unavailable

19

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

20

RAIL ASM, LH Substituted by 1541124 (Incl. 18, 33, 40-44)

1540659

Unavailable

21

RIVET,(50) Substituted by 7621467

7621401

Unavailable

22

BRACKET,BOGIE WHEEL

5130570

$48.56

23

WASHER(10)

7555804

$3.99

23

WASHER(10)

7555804

$3.99

24

INSERT-WHEEL Substituted by 5431531

5430789

$9.70

25

BOLT(10)

7512659

$7.99

26

LOCK WASHER(10)

7553201

$3.99

27

WHEEL, IDLER (Incl. 28-30)

1543018

$56.65

27

WHEEL, IDLER (Incl. 28-30)

1543018

$56.65

27

WHEEL, IDLER (Incl. 28-30)

1543018

$56.65

27

WHEEL, IDLER (Incl. 28-30)

1543018

$56.65

27

WHEEL, IDLER (Incl. 28-30)

1543018

$56.65

28

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

28

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

29

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

30

BEARING (1 per Wheel)

3514303

$11.99

31

SPACER

5332786

$7.99

32

BOLT(10)

7512404

$3.99

33

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

34

REINF., BUMPER

5222629

$13.75

35

SCREW(10)

7512227

$3.19

36

SLIDER,LH,BLK.

5521280

Unavailable

36

SLIDER,RH,BLK.

5521281

$28.15

37

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

37

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

37

TRACK,141'',DEEP-PROF,MOLDED

5410801

Unavailable

38

COVER-RAIL TIP

5430627

$32.37

39

RIVET(50)

7621435

$1.49

40

SHAFT,PIVOT ARM

5020723

$29.99

40

SHAFT,PIVOT ARM

5020723

$29.99

40

SHAFT,PIVOT ARM

5020723

$29.99

41

SHAFT,PIVOT ARM

5020724

$29.99

41

SHAFT,PIVOT ARM

5020724

$29.99

41

SHAFT,PIVOT ARM

5020724

$29.99

42

NUT-LOCK(10)

7542122

$1.49

43

NUT-LOCK(10)

7542439

$1.49

43

NUT-LOCK(10)

7542439

$1.49

44

BOLT(10)

7515438

$4.79

45

MACHINERY BUSHING(10)

7556301

$3.19

45

MACHINERY BUSHING(10)

7556301

$3.19

45

MACHINERY BUSHING(10)

7556301

$3.19

46

SPACER, OUTER

5332784

Unavailable

46

SPACER, OUTER

5332784

Unavailable

47

ARM,SHOCK MT,BLK. Substituted by 1541334-067

1540636-067

Unavailable
