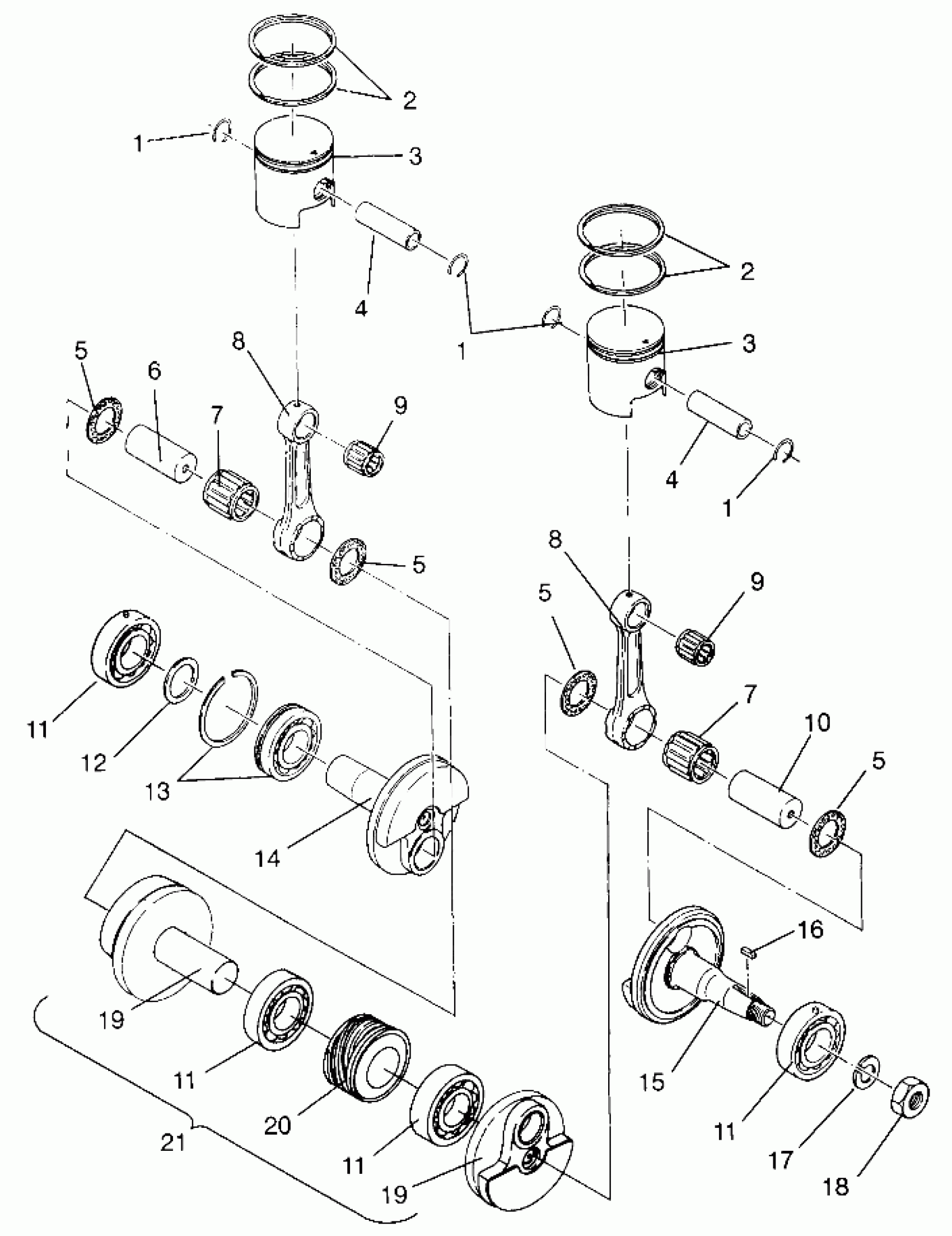

Polaris TRAN SPORT - 0960143 PISTON and CRANKSHAFT TRAN SPORT 0960143 and EURO TRAN SPORT E960143 (4932273227C007) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

2

RING, PISTON (Standard)

3082822

Unavailable

2

RING,PISTON,.010 O/S (0.25mm/.010" O/S)

3084242

Unavailable

2

RING,PISTON,(.020) (0.50mm/.020" O/S)

3084243

Unavailable

2

RING, PISTON (Standard)

3082822

Unavailable

2

RING,PISTON,.010 O/S (0.25mm/.010" O/S)

3084242

Unavailable

2

RING,PISTON,(.020) (0.50mm/.020" O/S)

3084243

Unavailable

3

PISTON,(.010 O/S) Substituted by 3085838 (0.25m/.010" O/S)

3084240

Unavailable

3

PISTON,(.020 O/S) Substituted by 3085839 (0.50m/.020" O/S)

3084241

Unavailable

3

PISTON, STD. Substituted by 3085837 (Standard)

3084239

$138.08

3

PISTON,(.010 O/S) Substituted by 3085838 (0.25m/.010" O/S)

3084240

Unavailable

3

PISTON,(.020 O/S) Substituted by 3085839 (0.50m/.020" O/S)

3084241

Unavailable

3

PISTON, STD. Substituted by 3085837 (Standard)

3084239

$138.08

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

Pin, Crank, 2

3083456

Unavailable

7

BEARING,LGE.END Substituted by 3085720

3083276

Unavailable

7

BEARING,LGE.END Substituted by 3085720

3083276

Unavailable

8

ROD-CONNECTING

3083252

$164.99

8

ROD-CONNECTING

3083252

$164.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

PIN,CRANK

3083233

$36.41

11

BEARING, BALL

3084586

$44.99

11

BEARING, BALL

3084586

$44.99

11

BEARING, BALL

3084586

$44.99

11

BEARING, BALL

3084586

$44.99

12

SPACER,CRANKSHAFT

3080447

$1.99

13

BEARING, BALL

3084587

Unavailable

14

CRANKSHAFT #3 (PTO End)

3083278

Unavailable

15

CRANKSHAFT #1 (Mag End)

3083280

$255.99

16

KEY

3081447

Unavailable

17

WASHER-SPRING(10)

3083094

$3.17

18

NUT

3083093

$19.99

19

CRANKSHAFT #2 (Center) (Incl. 6, 10)

3083890

Unavailable

19

CRANKSHAFT #2 (Center) (Incl. 6, 10)

3083890

Unavailable

20

DRIVEGEAR,OILPUMP

3083780

$107.99

21

CRANKSHAFT ASM. (Incl. 5-8, 7-15, 19, 20)

3084585

Unavailable
