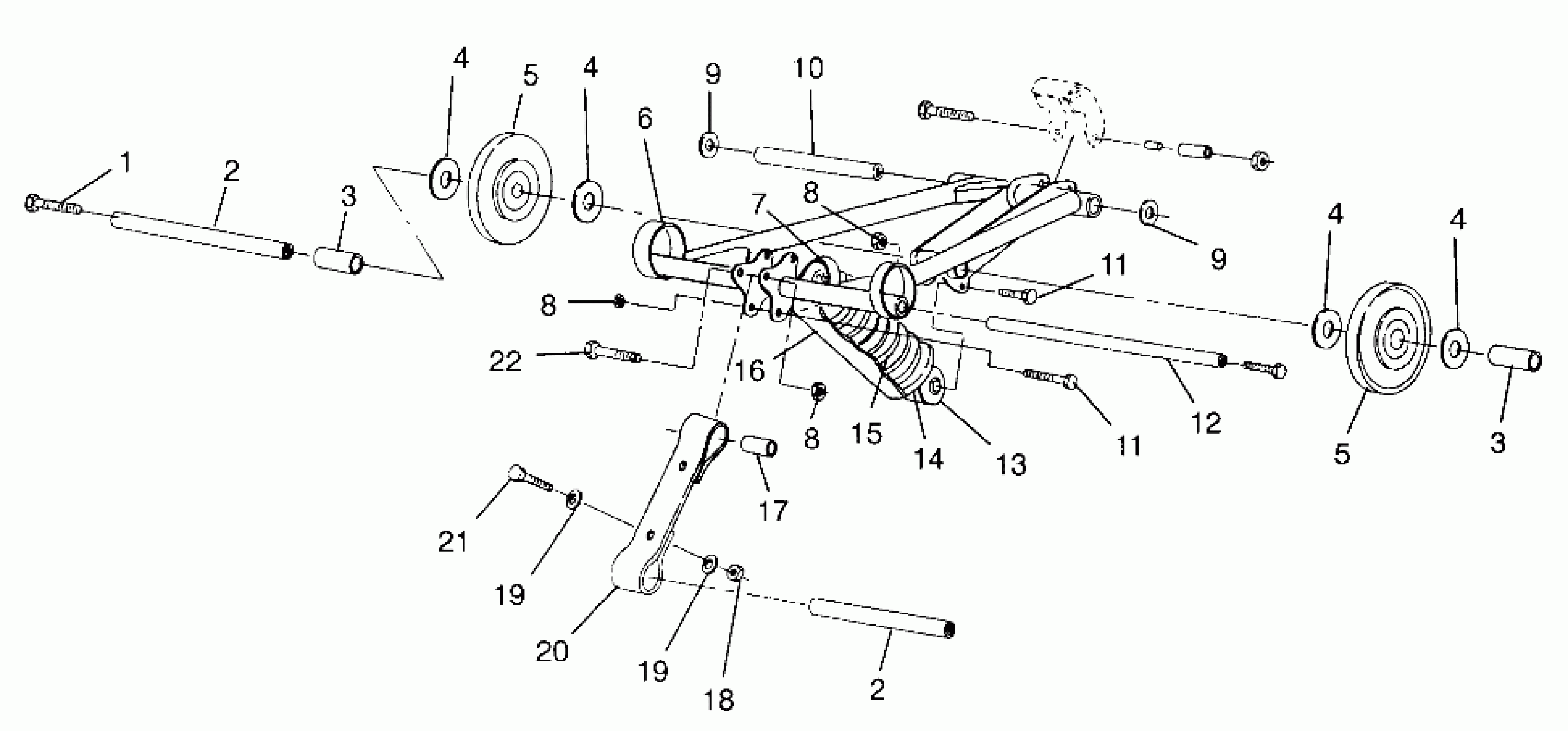

Polaris TRAN SPORT - 0960143 FRONT TORQUE ARM TRAN SPORT 0960143 and EURO TRAN SPORT E960143 (4932273227B012) Diagram

#

Description
Price

1

BOLT(10)

7515432

Unavailable

2

SHAFT,PIVOT ARM

5020724

$29.99

2

SHAFT,PIVOT ARM

5020724

$29.99

3

SPACER, OUTER

5332784

Unavailable

3

SPACER, OUTER

5332784

Unavailable

4

MACHINERY BUSHING(10)

7556301

$3.19

4

MACHINERY BUSHING(10)

7556301

$3.19

4

MACHINERY BUSHING(10)

7556301

$3.19

4

MACHINERY BUSHING(10)

7556301

$3.19

5

WHEEL, IDLER

1543018

$56.65

5

WHEEL, IDLER

1543018

$56.65

6

ARM,F.TORQUE,BLK.

1540722-067

Unavailable

7

RETAINER-TOP

5220225

$10.39

8

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

8

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

8

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

10

SHAFT,PIVOT ARM

5020723

$29.99

11

BOLT(10)

7515415

$1.49

11

BOLT(10)

7515415

$1.49

12

SHAFT,MOUNTING

5010149

Unavailable

13

SHOCK-SUSP

7041142

Unavailable

14

SPACER,SHOCK RETAINER(10)

5210953

$6.39

15

SPRING-SHOCK

7041127

Unavailable

16

SHIELD-SPRING

5430671

$24.27

17

BUSHING,SUSPENSION

5010212

Unavailable

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

WASHER(10)

7555716

$1.59

19

WASHER(10)

7555716

$1.59

20

STRAP, LIMITER

5410397

Unavailable

21

BOLT(10)

7515307

$3.99

22

BOLT(10)

7515438

$4.79
