CHAINCASE TRAN SPORT 0960143 and EURO TRAN SPORT E960143 (4932273227B008)

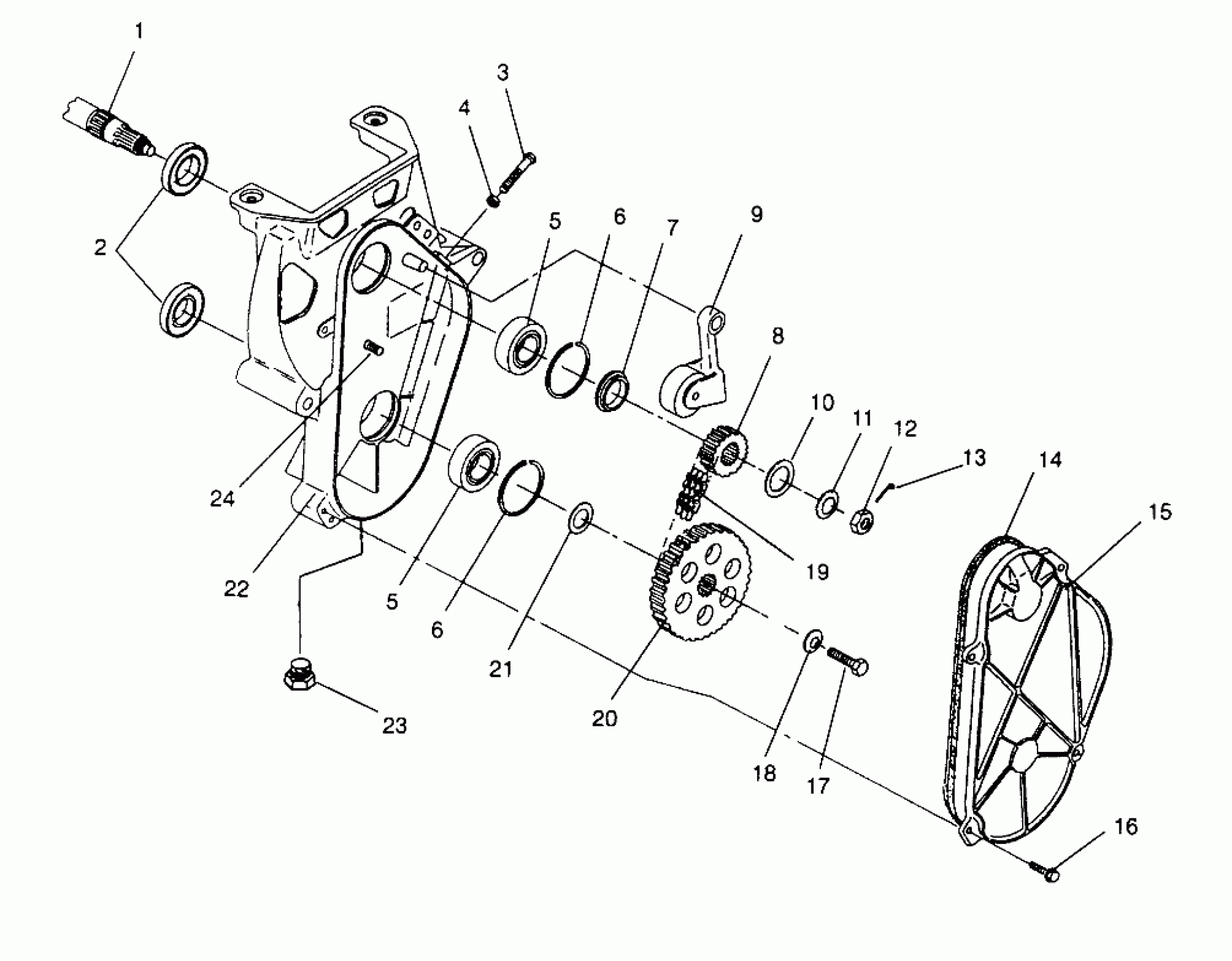

Polaris TRAN SPORT - 0960143 CHAINCASE TRAN SPORT 0960143 and EURO TRAN SPORT E960143 (4932273227B008) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. A20, Ref. 15)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,205,W/O SEAL
3514304
$15.99
5
BEARING,205,W/O SEAL
3514304
$15.99
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER, SPROCKET
5010270
Unavailable
8
SPROCKET 15 T
3221031
Unavailable
9
PIN,CHAIN TIGHTENER
7662210
Unavailable
9
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
9
BEARING
3553002
$11.99
9
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
9
WHEEL,C/C IDLER
5630123
Unavailable
9
WASHER THRUST(10)
7558702
$1.59
10
BUSHING(10)
7555863
$2.39
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT
7542811
Unavailable
13
COTTER PIN(10)
7661401
$1.49
14
GASKET-CHAINCASE
5410277
$24.99
15
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
16
SCREW(10)
7512242
$2.39
17
SCREW(10)
7515350
$3.97
18
WASHER(10)
7571618
$6.39
19
CHAIN 64 PITCH
3224023
Unavailable
20
SPROCKET 39 T
3222034
Unavailable
21
BUSHING(10)
7555864
$2.39
22
CHAINCASE,VENTED,W/BRG CLEAR. Substituted by 5131568
5131121
Unavailable
23
PLUG(10)
7052115
$5.65
24
BOLT(10)
7515477
$34.99
