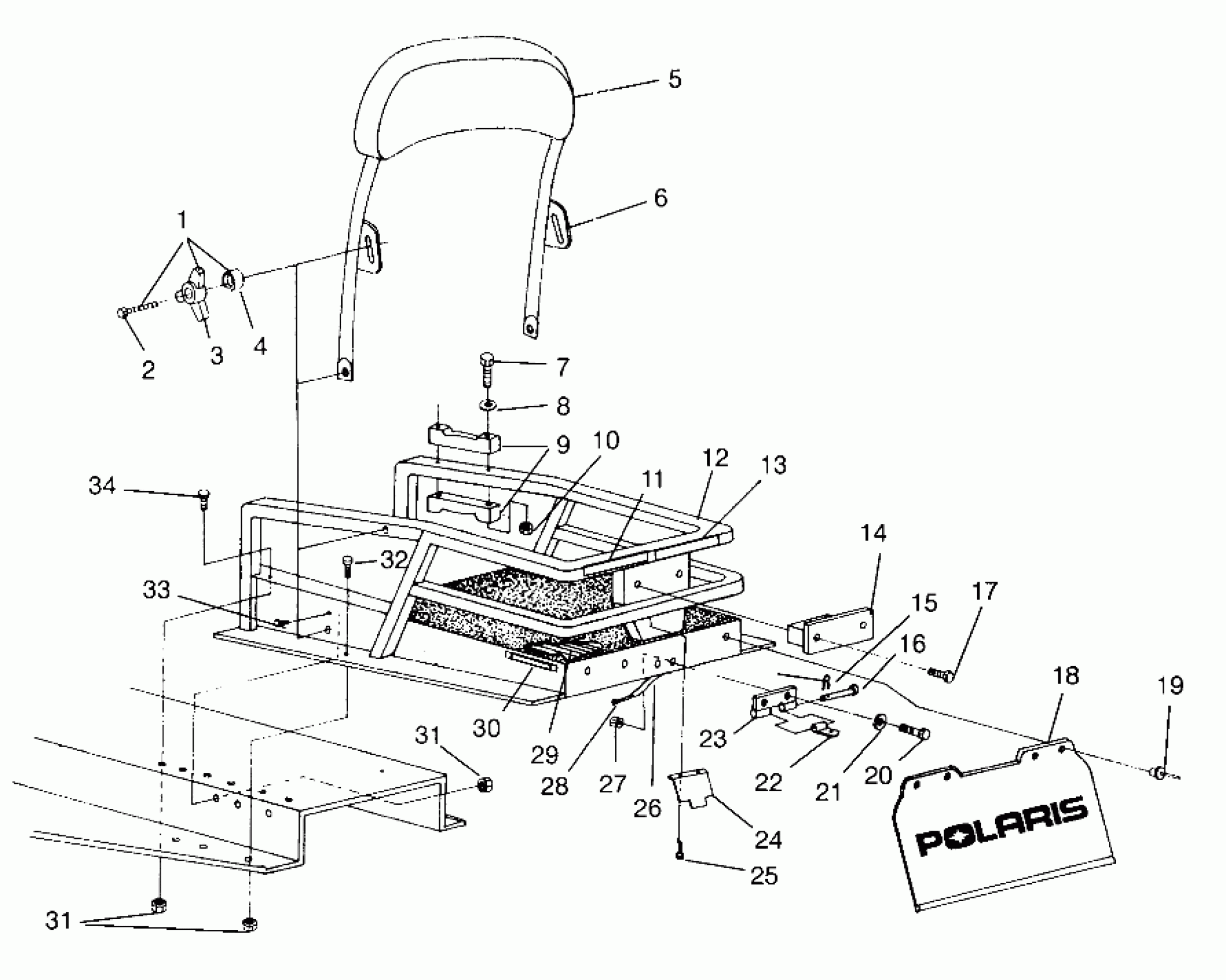

Polaris TRAN SPORT - 0960143 CARGO RACK TRAN SPORT 0960143 (4932273227A007) Diagram

#

Description
Price

1

KNOB ASM,BACKREST

2670130

Unavailable

2

SCREW(10)

7515352

Unavailable

3

Knob, Backrest

5630386-067

$20.22

4

SPACER

5431285

Unavailable

5

COVER,BACKREST ASM. Substituted by 2681265

2681790

Unavailable

6

BACKREST ASM. Substituted by 2681356

2681789

Unavailable

7

SCREW(10)

7510504

$6.76

8

WASHER(10)

7555783

$3.99

9

GRIP, HAND Substituted by 5433383

5431015

$19.68

10

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

11

DECAL,LH,TRACK/SEAT,ENGLISH

7075414

Unavailable

12

RACK,(GT),BLK

1012373-067

Unavailable

13

DECAL,RH,TRACK/SEAT,FRENCH

7075415

Unavailable

14

TAILLIGHT ASM.

4030041

$91.19

14

Gasket

4032015

Unavailable

14

BULB,TAILLIGHT Substituted by 4030063

4030044

Unavailable

14

LENS-TAIL-LIGHT

4032014

$36.41

15

COTTER PIN(10)

7661401

$1.49

16

CLEVIS PIN(10)

7662209

$9.59

17

SCREW(10)

7511989

Unavailable

18

FLAP,SNOW,BLK.(GT)

5410604

Unavailable

19

POP RIVET(50)

7621418

$1.49

20

SCREW(10) Substituted by 7512490

7512402

Unavailable

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

22

HITCH WELD,BLK.(U.S.) (US)

1011518-067

$31.75

23

HITCH WELD, BLK. Substituted by 2871178

1011624-067

Unavailable

24

COVER,WIRE,BLK.

5222573-067

Unavailable

25

SCREW(10)

7512017

$4.79

26

PROTECTOR-HARNESS, 3"

5521347

Unavailable

27

NUT(10)

7542404

$1.59

28

HARNESS,TAILLIGHT

2460543

Unavailable

29

PROTECTOR-BED

5811180

Unavailable

30

REFLECTOR RED

2670070

$9.91

31

NUT-LOCK(10)

7542122

$1.49

31

NUT-LOCK(10)

7542122

$1.49

32

SCREW(10)

7512222

$2.39

33

BOLT, BLACK(10)

7512282

$1.49

34

BOLT(10)

7512157

Unavailable
