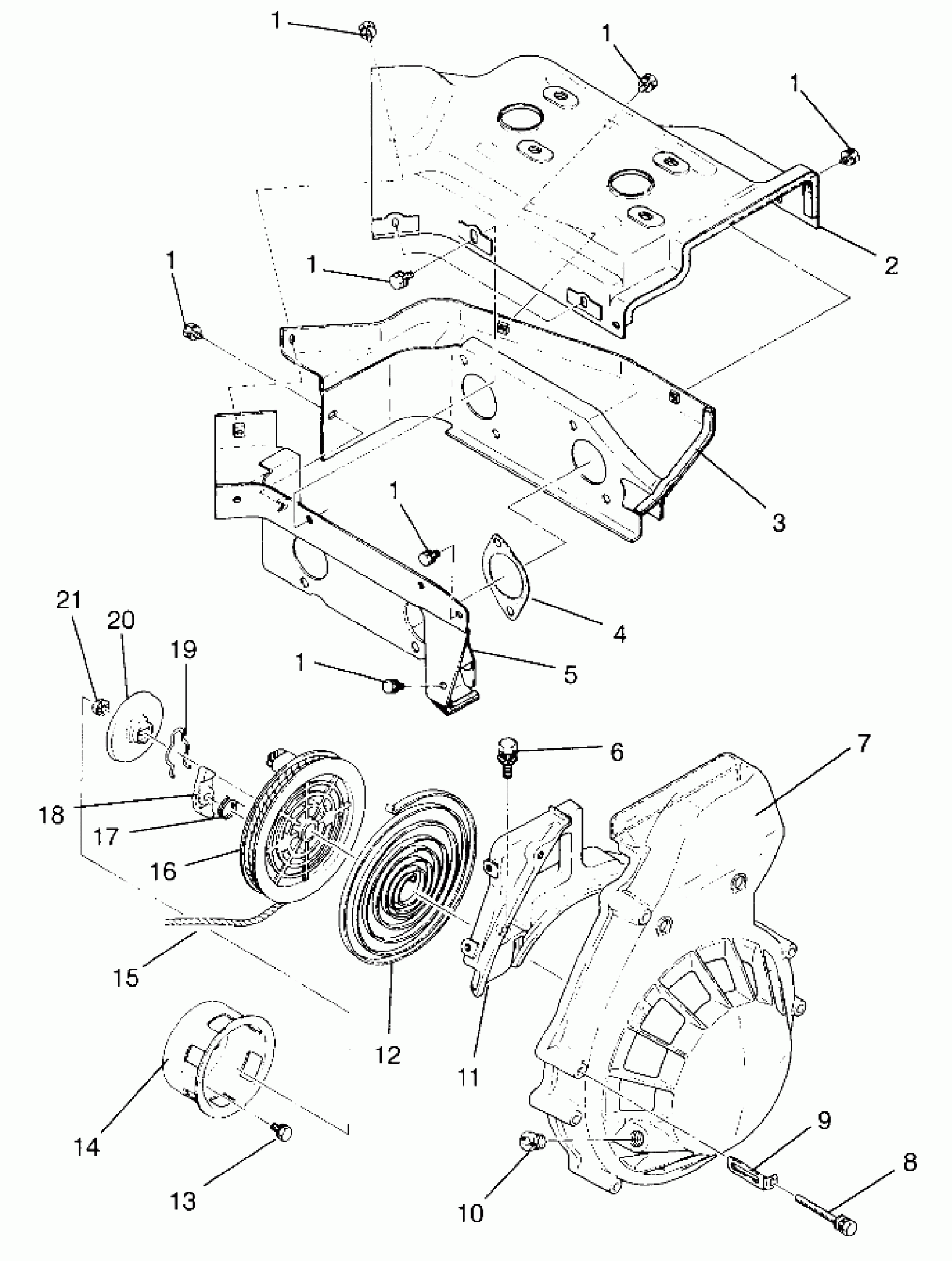

Polaris TRAN SPORT - 0960143 BLOWER HOUSING and RECOIL STARTER TRAN SPORT 0960143 and EURO TRAN SPORT E9 (4932273227C012) Diagram

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BAFFLE,CYL.#1

3084588

Unavailable

BAFFLE,CYL.#2

3085008

Unavailable

GASKET, INTAKE

3084027

Unavailable

BAFFLE,CYL.#3 (Incl. 4)

3085009

Unavailable

BOLT&WASHER ASM.

3084225

$3.99

RECOIL STARTER (Incl. 7, 10, 12, 16-21)

3083547

Unavailable

CASE, STARTER

3083548

Unavailable

BOLT&WASHER ASM.

3083550

Unavailable

Clamp

3083590

$3.99

GUIDE-ROPE

3083107

Unavailable

HOUSING,BLOWER,#2

3083697

Unavailable

Spring, Spiral

3083376

$179.11

BOLT,(10)

3081665

$3.19

PULLEY, STARTER

3083549

Unavailable

ROPE,100 FT,NYL.STARTER

2870621

$34.99

REEL, REWIND

3083377

$56.65

Spring, Return

3083463

$4.03

Ratchet

3083378

$20.22

Spring, Friction

3083379

$24.27

Plate, Friction

3083464

$28.32

NUT, FLANGE ,(10)

3083381

$2.99
