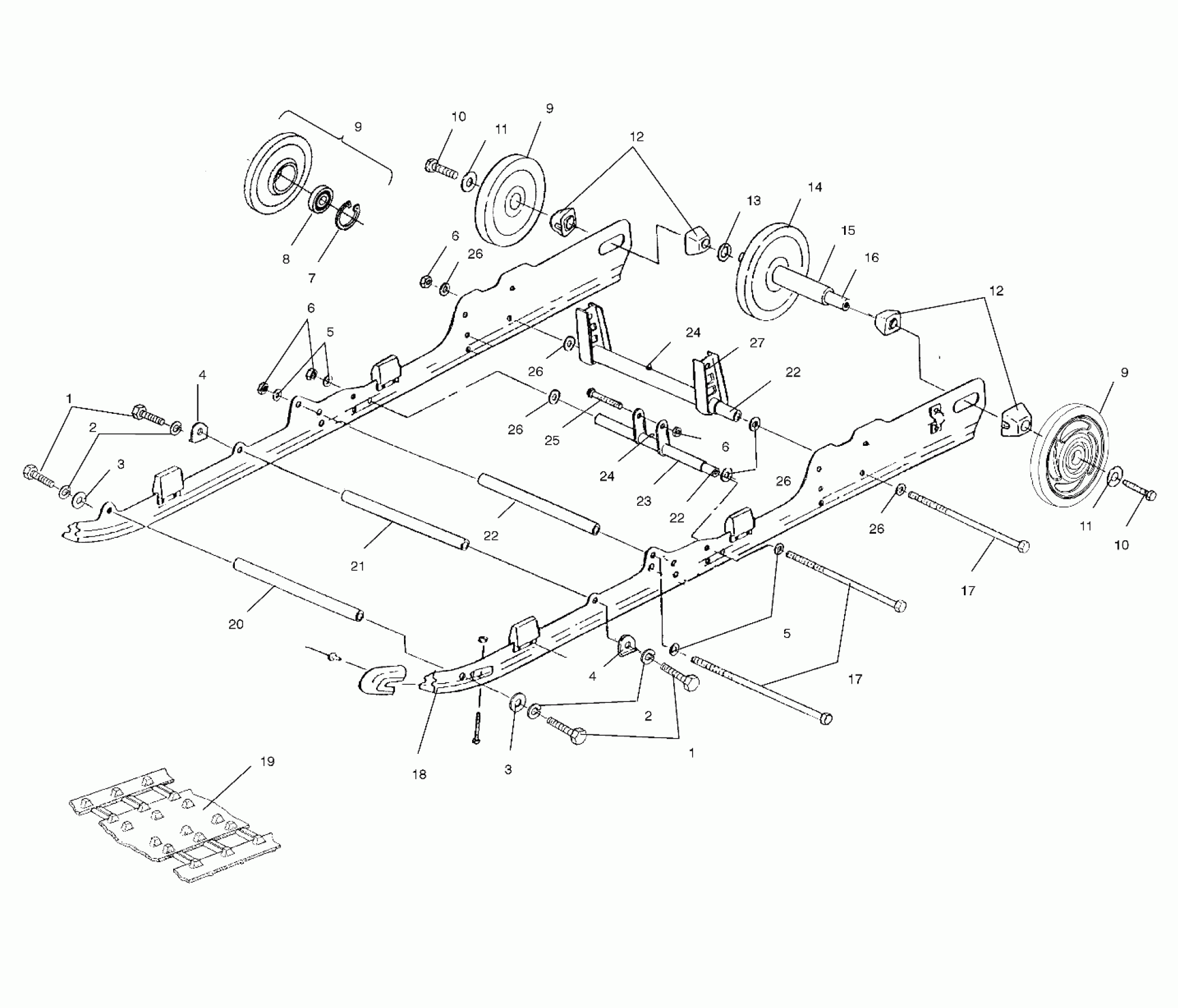

Polaris TRAIL TOURING - S02ST5BS SUSPENSION - S02ST5BS (4968226822B008) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555923

$2.39

3

WASHER(10)

7555923

$2.39

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

RING-RETAINING

7710444

$8.79

8

Bearing

3514012

Unavailable

9

ASM-WHEEL IDLER,HP,INDY BLUE

1590303-312

$48.56

9

ASM-WHEEL IDLER,HP,INDY BLUE

1590303-312

$48.56

9

ASM-WHEEL IDLER,HP,INDY BLUE

1590303-312

$48.56

10

BOLT,3/8-16X1.25(10)

7517731

$1.49

10

BOLT,3/8-16X1.25(10)

7517731

$1.49

11

WSHR,.406X1.25X.125(10)

7556130

$6.39

11

WSHR,.406X1.25X.125(10)

7556130

$6.39

12

SPACER-IDLER

5432535

$11.99

12

SPACER-IDLER

5432535

$11.99

13

BUSHING(10)

7555918

$1.59

14

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

15

SPACER-IDLER, LONG

5333285

$11.99

16

SHAFT,IDLER

5020744

$59.99

17

Screw

7517353

Unavailable

17

Screw

7517353

Unavailable

18

SLIDER,WHI.,(2)

5521452

$40.46

19

Clip, Slide

5241473

Unavailable

19

Clip, Guide

5241474

Unavailable

19

TRACK,133.5 CAMO,LTNG. Substituted by 5411176

5411171

Unavailable

20

SHAFT,PIVOT ARM

5020723

$29.99

21

SHAFT,PIVOT ARM

5020724

$29.99

22

SHAFT

5333404

$24.27

22

SHAFT

5333404

$24.27

22

SHAFT

5333404

$24.27

23

ARM,SHOCK PIVOT

1541001-067

$43.65

24

ZERK,FITTING,THREADED(10)

7080433

$1.49

24

ZERK,FITTING,THREADED(10)

7080433

$1.49

25

BOLT(10)

7515472

$2.39

26

WASHER(10)

7555893

$1.49

26

WASHER(10)

7555893

$1.49

26

WASHER(10)

7555893

$1.49

26

WASHER(10)

7555893

$1.49

26

WASHER(10)

7555893

$1.49

27

ARM,R.PIVOT

1541241-067

$40.79
