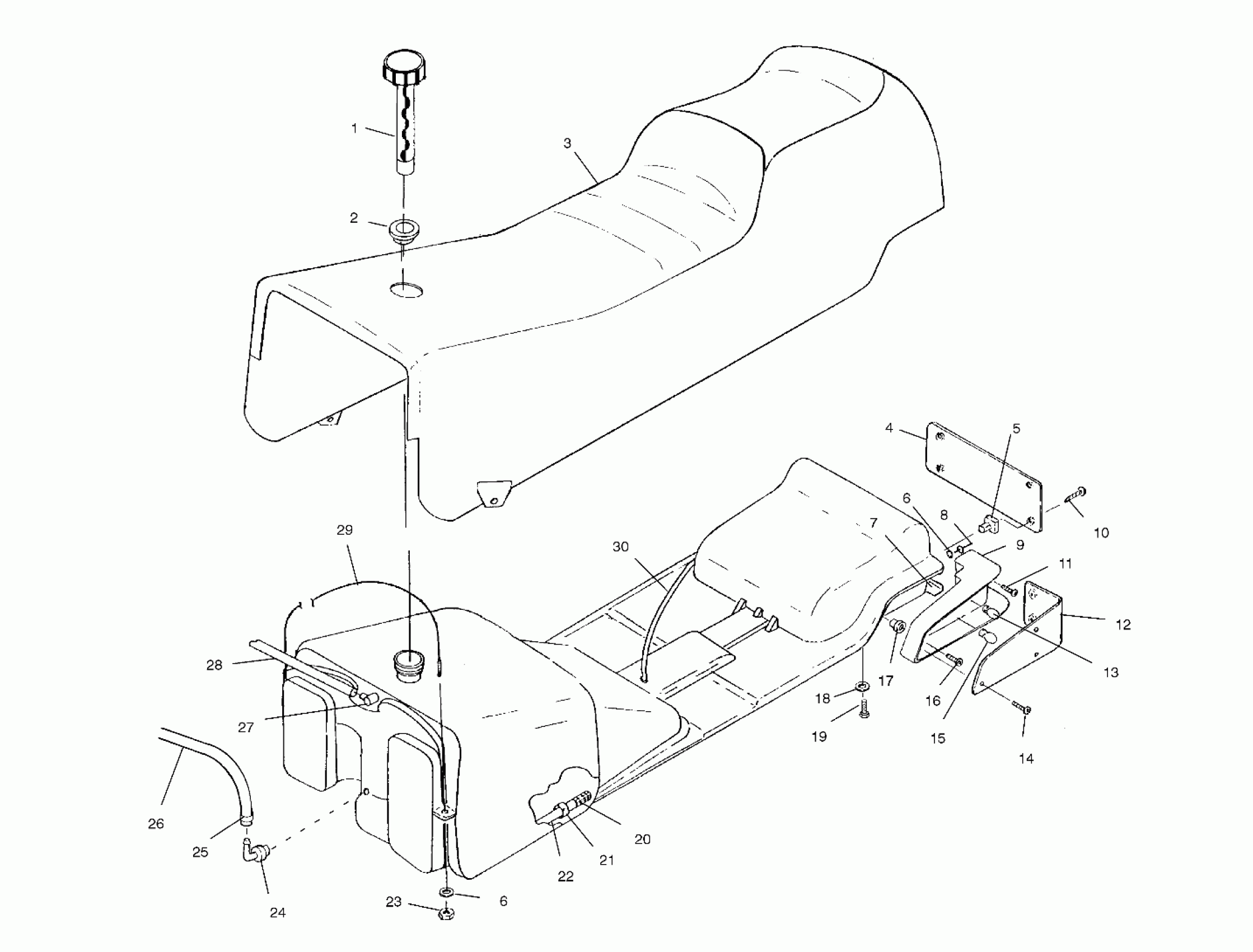

Polaris TRAIL TOURING - S02ST5BS SEAT and GAS TANK - S02ST5BS (4968226822A004) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

ASM-SEAT COVER TOUR

2682748

Unavailable

3

ASM-SEAT,TOUR (Incl. 3-17,20-24)

2682829

Unavailable

4

REFLECTOR,CTR,SEAT

5432008

Unavailable

5

NUT(10)

7546908

$2.63

6

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

6

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

7

DESC NOT_AVAILABLE

1012838-067

Unavailable

8

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

9

HOUSING,LH,LENS

5432002

Unavailable

9

HOUSING,RH,LENS

5432003

Unavailable

10

SCREW(10)

7511840

Unavailable

11

SCREW,SELF-TAP(10)

7522004

Unavailable

12

LENS,RH

5432032

$44.51

12

LENS,LH

5432031

Unavailable

13

Bulb, Brakelight

4030045

Unavailable

14

SCREW(10)

7512054

$2.39

15

BULB, T/L.

4032084

Unavailable

16

SCREW(10)

7511954

$1.19

17

NUT, WELL(10)

7541901

$6.39

18

WASHER,WROUGHT(10)

7558302

$1.59

19

SCREW(10)

7512242

$2.39

20

PICK-UP-FUEL,W/FILTER,105MICRN

7052301

$12.94

21

RING, COMPRESSION(10)

7080402

$1.60

22

DESC NOT_AVAILABLE

8350019-1525

Unavailable

23

NUT(10)

7541925

$1.49

24

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

FITTING,90 DEG,1/8,(10)

7052095

$4.79

28

FUELLINE,3MMX7MM

8450061-600

Unavailable

29

CABLE,TANK,RETENTION

7080559

Unavailable

30

HARNESS,T/L,(TOUR)

2460524

$58.39
