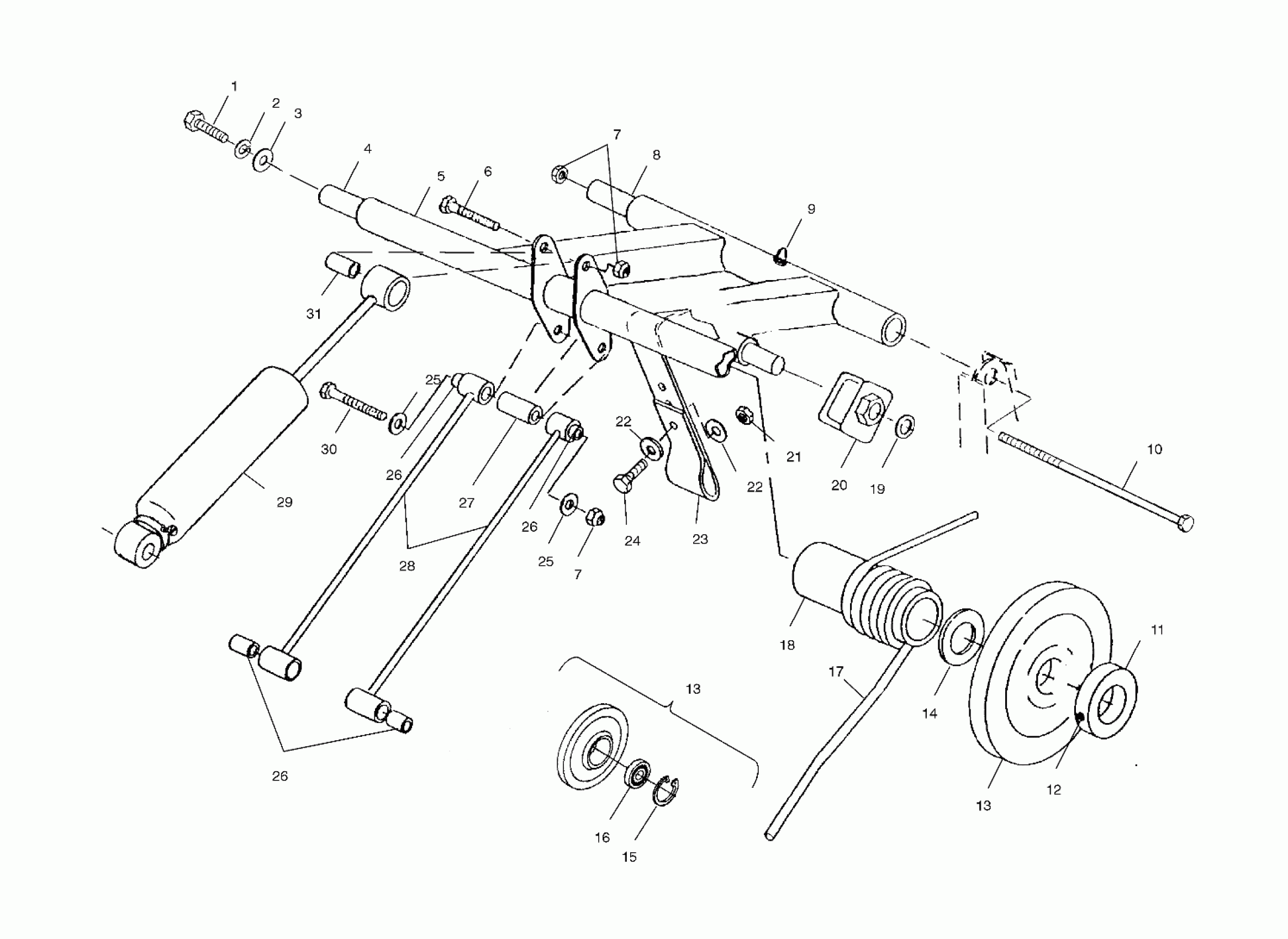

Polaris TRAIL TOURING - S02ST5BS REAR TORQUE ARM - S02ST5BS (4968226822B011) Diagram

#

Description
Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT,R.TORQUE,UPPER

5020845

$63.99

5

ARM,R.TORQUE,BLK

1541152-067

Unavailable

6

BOLT(10) Substituted by 7515492

7512410

Unavailable

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

8

Shaft

5333536

Unavailable

9

ZERK,FITTING,THREADED(10)

7080433

$1.49

10

Screw

7517232

$19.99

11

COLLAR,BRG LOCK

5010404

Unavailable

12

SCREW-SET(10)

7512257

$3.99

13

Wheel, Carrier

1543023

Unavailable

13

Wheel, Carrier

1543023

Unavailable

14

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

15

RET.RING-TRUARC

7718407

$4.79

16

BEARING

3514303

$11.99

17

SPRING,LH,TORS(.421DIA) (.421) (Opt.)

7041461-067

Unavailable

17

SPRING,RH,TORS(.437/77) (.437) (Std.)

7041466-067

$107.99

17

SPRING,LH,TORS(.437/77) (.437) (Std.)

7041465-067

Unavailable

17

SPRING,RH,TORS(.406DIA) (.406) (Opt.)

7041464-067

Unavailable

17

SPRING,RH,TORS(.421DIA) (.421) (Opt.)

7041462-067

$113.32

17

SPRING,LH,TORS(.406DIA) (.406) (Opt.)

7041463-067

Unavailable

18

SLEEVE,TORSION SPRING

5431923

$6.39

19

CLIP-PUSH ON

7080394

$2.39

20

ROLLER, SPRING ADJ.

5431168

Unavailable

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

22

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

23

STRAP-LIMITER,RR,SA

5411062

Unavailable

24

SCREW(10)

7512310

$2.39

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

26

BUSHING,PIVOT TUBE

5020561

$1.59

26

BUSHING,PIVOT TUBE

5020561

$1.59

26

BUSHING,PIVOT TUBE

5020561

$1.59

27

Spacer

5333559

Unavailable

28

ROD,SHOCK,(XTRA 10)133

1541021-067

Unavailable

29

SHOCK,GAS,R.TRACK

7041438

Unavailable

30

BOLT(10)

7515472

$2.39

31

BUSHING

5010422

$11.99
