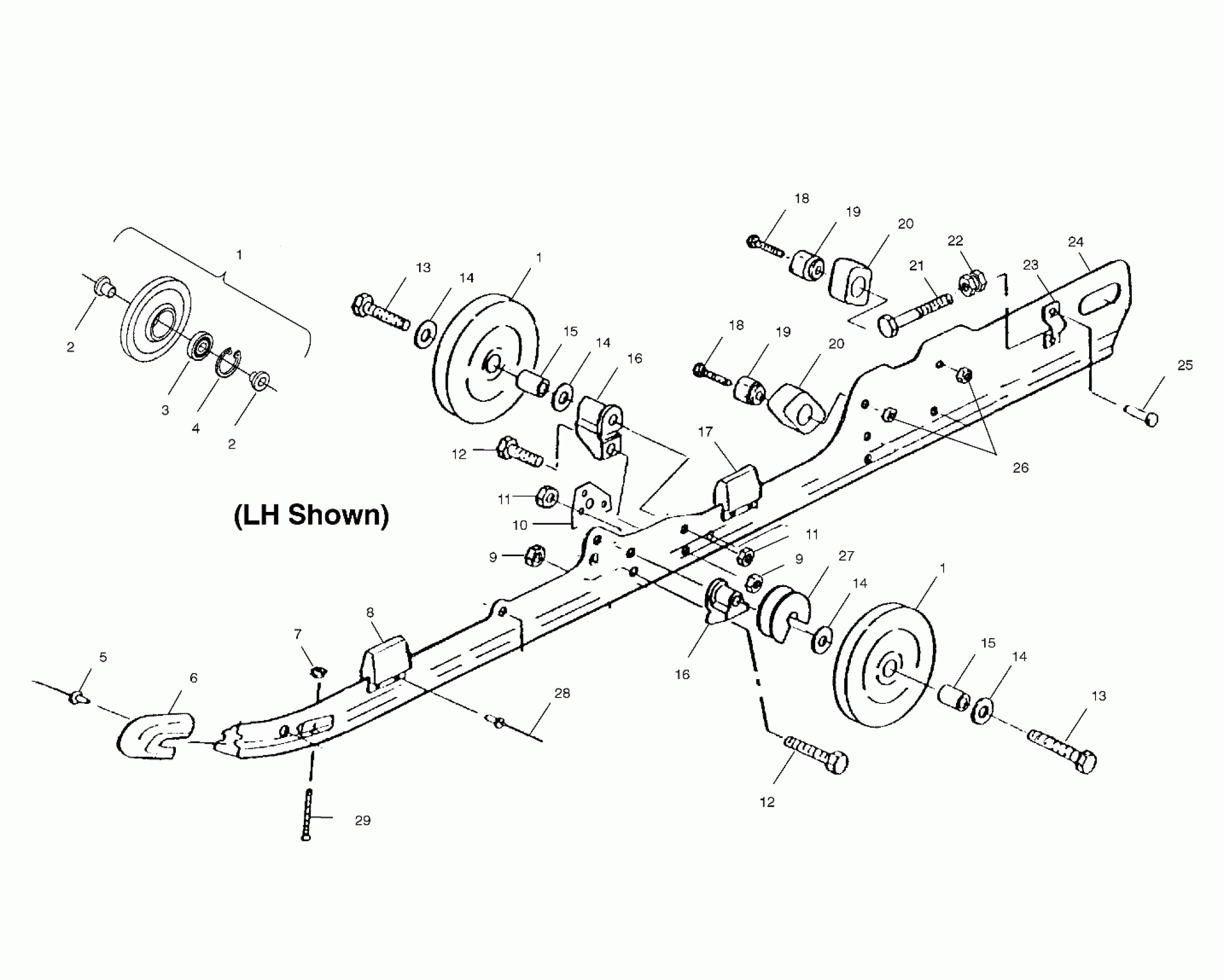

Polaris TRAIL TOURING - S02ST5BS RAIL MOUNTING (SUSPENSION) - S02ST5BS (4968226822B009) Diagram

#

Description
Price

1

ASM-WHEEL,SCROLLED,BOGIE,I BLU (Incl. 2-4)

1594082-312

Unavailable

1

ASM-WHEEL,SCROLLED,BOGIE,I BLU (Incl. 2-4)

1594082-312

Unavailable

1

ASM-WHEEL,SCROLLED,BOGIE,I BLU (Incl. 2-4)

1594082-312

Unavailable

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

3

BEARING,CHAINCASE (1 per Wheel)

3514305

$19.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

RIVET(50)

7621435

$1.49

6

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

7

NUT-LOCK(10)

7542122

$1.49

8

REINF., BUMPER

5222629

$13.75

8

BUMPER, RAIL

5810554

$7.27

9

NUT-LOCK(10)

7542439

$1.49

9

NUT-LOCK(10)

7542439

$1.49

10

PLATE,RAIL SUPPORT

5211798

$8.23

11

NUT, NYLOCK(10)

7542525

$4.79

11

NUT, NYLOCK(10)

7542525

$4.79

12

BOLT(10)

7512404

$3.99

12

BOLT(10)

7512404

$3.99

13

BOLT(10)

7512538

$6.39

13

BOLT(10)

7512538

$6.39

14

WASHER, FLAT(10)

7555852

$2.39

14

WASHER, FLAT(10)

7555852

$2.39

14

WASHER, FLAT(10)

7555852

$2.39

14

WASHER, FLAT(10)

7555852

$2.39

15

SPACER, WHEEL

5333116

$7.99

15

SPACER, WHEEL

5333116

$7.99

16

SPACER

5630399

$11.99

16

SPACER

5630399

$11.99

17

REINF., BUMPER

5222629

$13.75

17

BUMPER,SUSPENSION

5811097

Unavailable

18

BOLT,(10)

7515545

$5.59

18

BOLT,(10)

7515545

$5.59

19

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

19

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

20

BUMPER,F.PIVOT ARM

5410925

$12.94

20

BUMPER,F.PIVOT ARM

5410925

$12.94

21

BOLT, ADJUSTER(10)

7515455

$29.99

22

NUT,TENSIONER ADJ.

5020943

$20.22

23

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

24

RAIL ASM,RH,133" (Incl. 5,6,8,17,23,25,28)

1540947

$339.99

24

RAIL ASM,LH,133" (Incl. 5,6,8,17,23,25,28)

1540946

$269.55

25

RIVET,(50)

7621501

$2.39

26

NUT LOCK(10)

7542411

$3.19

27

ROLLER, SPRING

5431366

$10.51

28

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

29

BOLT(10)

7515175

$3.99
