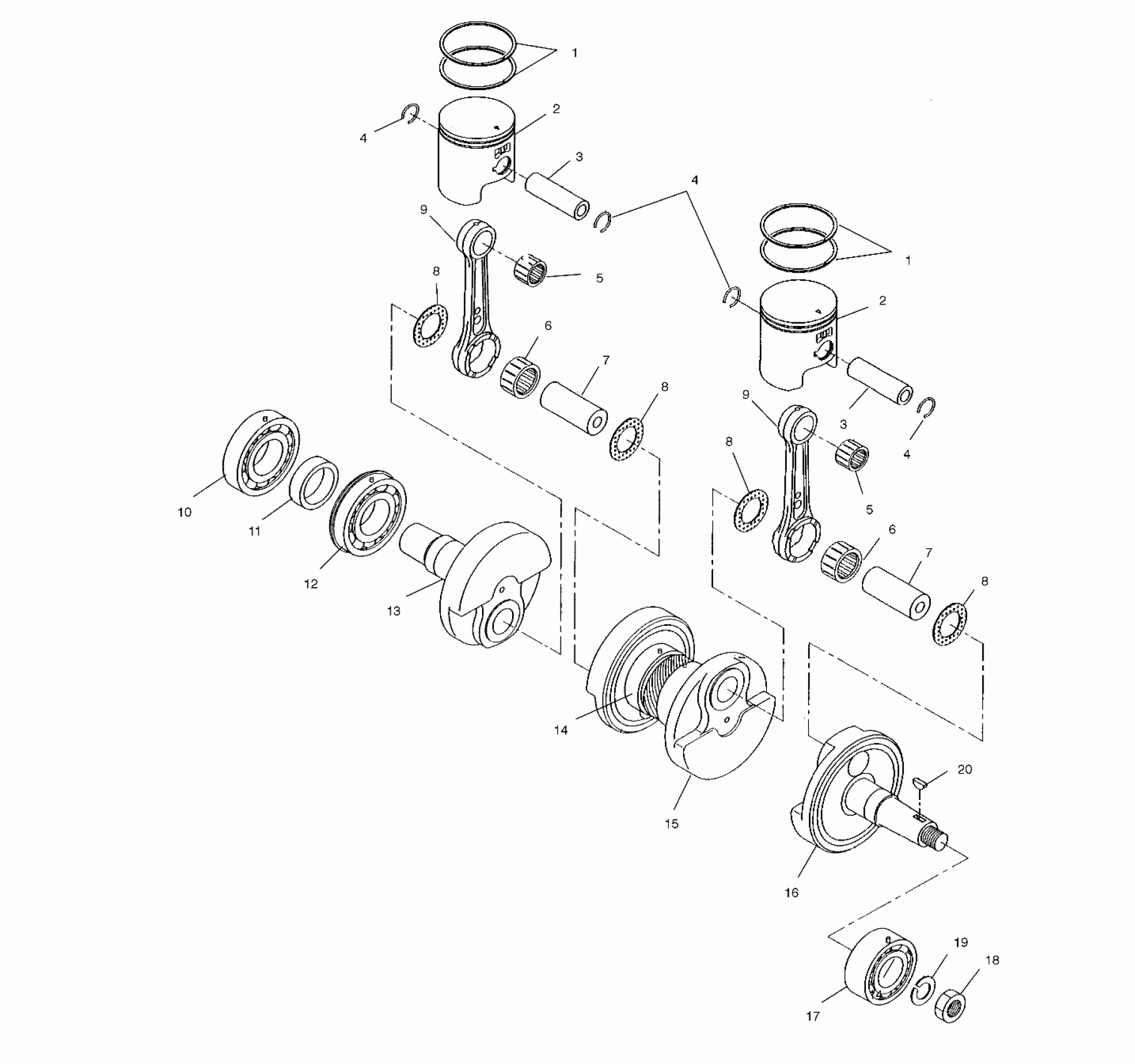

Polaris TRAIL TOURING - S02ST5BS PISTON and CRANKSHAFT - S02ST5BS (4968226822C007) Diagram

#

Description
Price

1

RING-PISTON(STD) (Standard)

3086988

Unavailable

1

RING-PISTON(0.25 O/S) (0.25mm/.010"O/S)

3086989

Unavailable

1

RING-PISTON(0.50 O/S) (0.50mm/.020"O/S)

3086990

$33.32

1

RING-PISTON(STD) (Standard)

3086988

Unavailable

1

RING-PISTON(0.25 O/S) (0.25mm/.010"O/S)

3086989

Unavailable

1

RING-PISTON(0.50 O/S) (0.50mm/.020"O/S)

3086990

$33.32

2

PISTON-SET(STD) (Standard)(Incl. 4)

3087024

Unavailable

2

PISTON-SET(0.25 O/S) (0.25m/.010"O/S)(Incl. 4)

3087025

$142.84

2

PISTON-SET(0.50 O/S) (0.50m/.020"O/S)(Incl. 4)

3087026

$152.37

2

PISTON-SET(STD) (Standard)(Incl. 4)

3087024

Unavailable

2

PISTON-SET(0.25 O/S) (0.25m/.010"O/S)(Incl. 4)

3087025

$142.84

2

PISTON-SET(0.50 O/S) (0.50m/.020"O/S)(Incl. 4)

3087026

$152.37

3

Pin, Piston

3083838

$27.99

3

Pin, Piston

3083838

$27.99

4

CLIP,(10)

3084167

$6.39

4

CLIP,(10)

3084167

$6.39

4

CLIP,(10)

3084167

$6.39

5

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

5

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

6

BEARING-END,LARGE

3086390

$1,634.99

6

BEARING-END,LARGE

3086390

$1,634.99

7

Pin, Crank, 2

3083456

Unavailable

7

Pin, Crank, 2

3083456

Unavailable

8

SPACER(CRANKPIN)

3083277

$15.99

8

SPACER(CRANKPIN)

3083277

$15.99

8

SPACER(CRANKPIN)

3083277

$15.99

8

SPACER(CRANKPIN)

3083277

$15.99

9

ROD, CONNECTING

3240083

$1,634.99

9

ROD, CONNECTING

3240083

$1,634.99

10

BEARING,BALL

3085754

$64.99

11

SPACER

3085677

$11.99

12

BEARING,BALL

3085753

$64.99

13

CRANKSHAFT #3,PTO SIDE (PTO Side)

3085675

Unavailable

14

BEARING, BALL

3084586

$44.99

15

CRANKSHAFT #2 (Incl. 7)

3085674

$694.99

16

CRANKSHAFT (Incl. 6-17)

3086389

$1,684.99

16

CRANKSHAFT #1,MAG SIDE (MAG Side)

3085673

$404.99

17

BEARING, BALL

3084681

Unavailable

18

NUT

3083093

$19.99

19

WASHER-SPRING(10)

3083094

$3.17

20

KEY Substituted by 3081543

3080130

Unavailable
