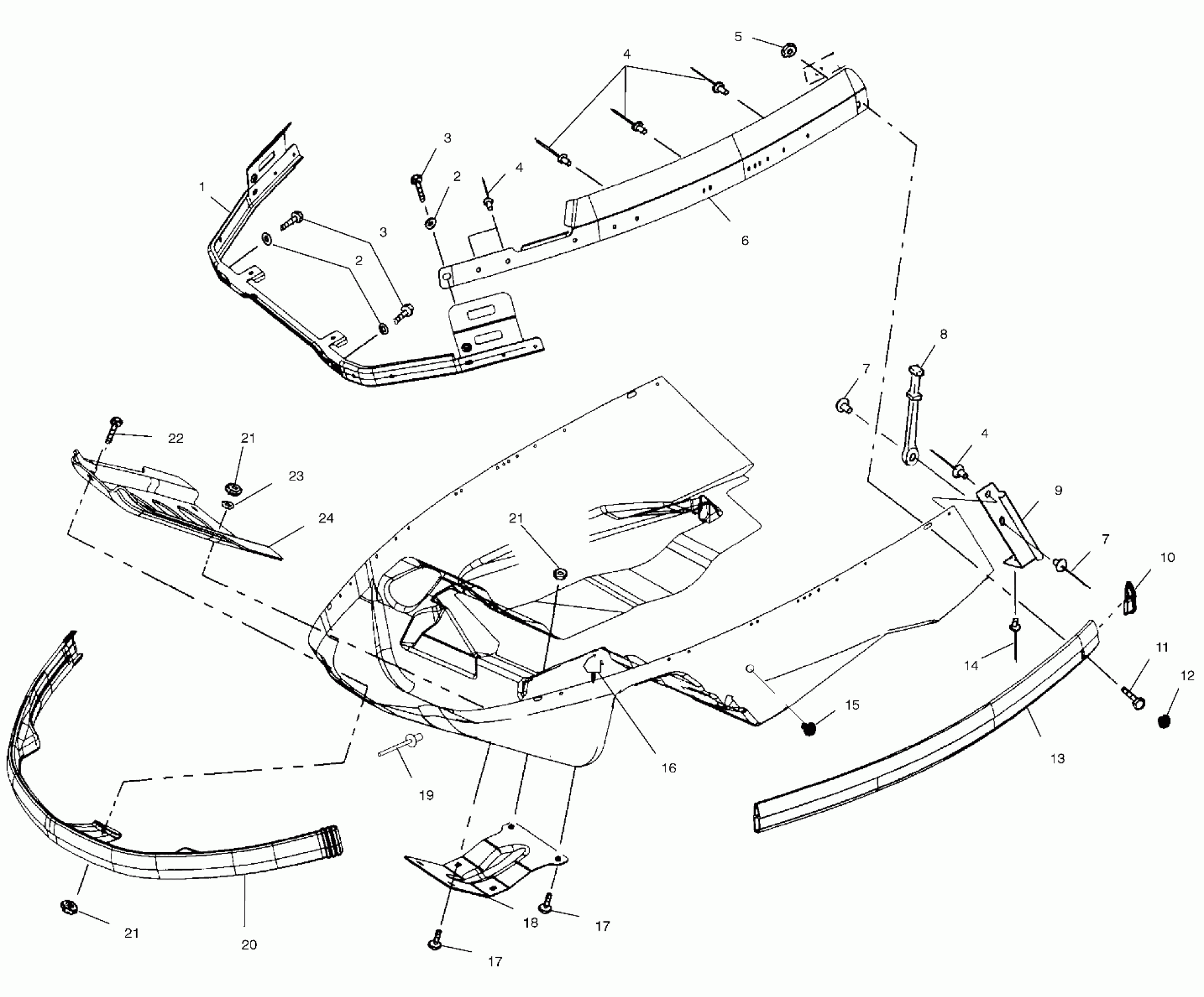

Polaris TRAIL TOURING - S02ST5BS NOSEPAN - S02ST5BS (4968226822A007) Diagram

#

Description
Price

1

BRACE HINGE,BLK

1012783-067

$64.75

2

LOCK WASHER(10)

7552801

$1.59

2

LOCK WASHER(10)

7552801

$1.59

3

BOLT(10)

7512276

$4.79

3

BOLT(10)

7512276

$4.79

4

POP RIVET(50)

7621402

$1.49

4

POP RIVET(50)

7621402

$1.49

4

POP RIVET(50)

7621402

$1.49

5

NUT, LOCK(10)

7542103

$5.59

6

GUIDE,HOOD,LH

5243005

Unavailable

6

GUIDE,HOOD,RH

5243006

Unavailable

7

RIVET,(50)

7621601

Unavailable

7

RIVET,(50)

7621601

Unavailable

8

STRAP, HOOD LATCH

5410370

$24.27

9

BRACE,PAN,RH

5220523-067

$94.99

9

BRACE,PAN,LH

5220522-067

$94.99

10

CAP,BUMPER,LH,BLK.

5432887

$8.08

10

CAP,BUMPER,RH,BLK.

5432888

$4.84

11

SCREW(10)

7515166

$3.19

12

PLUG, HOLE(10)

7080416

$5.65

13

EXTRUSION-BUMPER,FORMED,LH,BLK

5243460-067

Unavailable

13

EXTRUSION-BUMPER,FORMED,RH,BLK

5243461-067

$159.99

14

RIVET,3/16X.402(50)

7621432

$1.49

15

PLUG

5410344

$5.65

16

CLIP-ROUTING

7670109

$2.39

17

BOLT(10)

7512193

$2.39

17

BOLT(10)

7512193

$2.39

18

BRACE-PAN,LOWER,BLK

5242575-067

$24.27

19

RIVET(50)

7621463

Unavailable

20

BUMPER,FRONT,GEN,II,BLK

5432891-070

$139.99

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

22

SCREW,(10)

7517371

Unavailable

23

WASHER(10)

7558301

$1.49

24

BRACE,PAN,UPPER

5243820

Unavailable
